Knocks FDO.23 G MAN FRL Service Unit Assemblies (with G50 Gauge), G 1/2" (Self Drain)

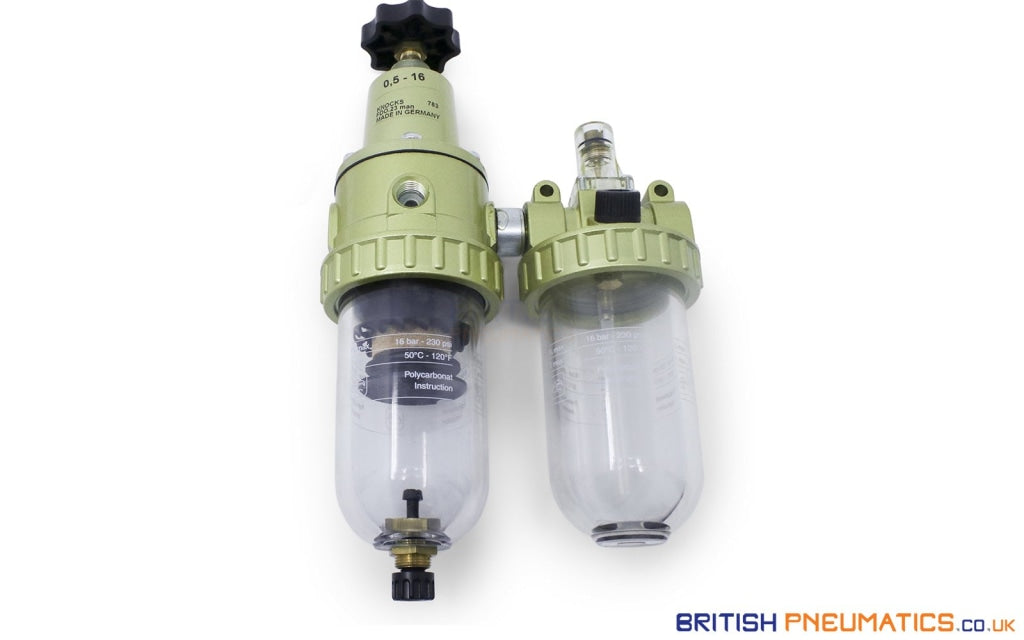

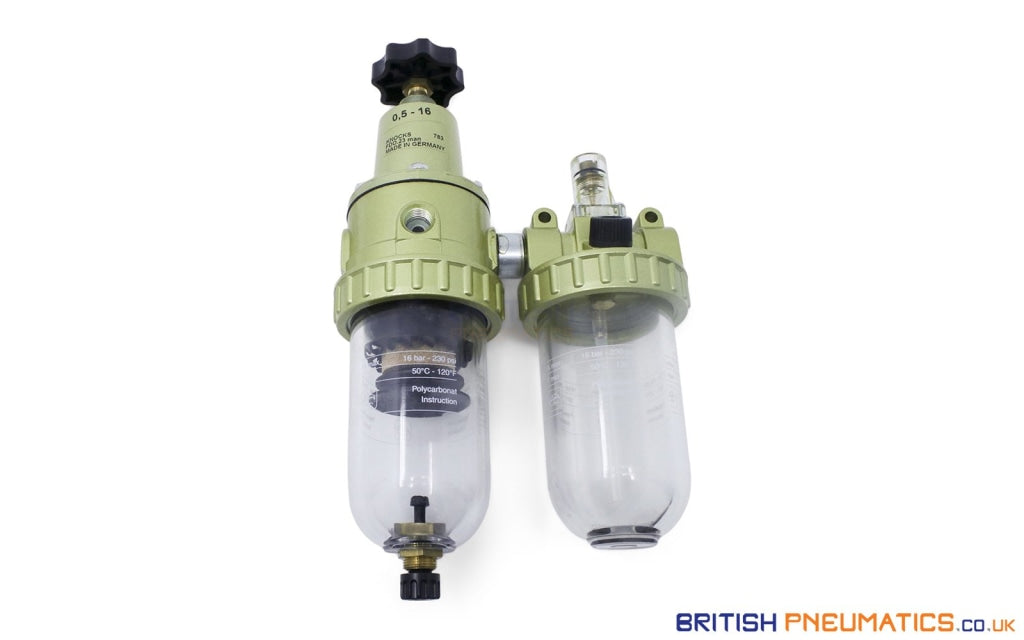

This is a FRL from KNOCKS which is an assembly of a Filter Regulator and Lubricator. It has 1/2" port connections, self drain feature, and a 16 bar gauge (gauge not pictured).
Made in Germany
G 1/2, Manual drain, with G50 16bar gauge
Technical Specifications
| Port size | G 1/2 |
| Description | Air line regulator with diaphragm and relieving feature, centrifugal force principle with sintered filter, propor.oiler |
| Mounting | Vertically, drain plug at bottom |
| Supply pressure | Pe max.16 bar Pe max.12 bar with auto drain Pe min. 1,5 bar with auto drain |
| Reduced pressure | Pa 0,5-10 bar standard.0,1-3 bar, 0,2-6 bar, 0,5-16 bar |
| Filter element | 40 μm standard (absolutely) |
| Media and ambient temperature | Max. 60℃ (oth. temperature ranges available upon request) |
| Bowl volume | Max. 50 cm³ condensation volume, 110 cm³ oil bowl |
| Drain model | Manual drain standard (MAN) |
| Fixing | Bracket |
