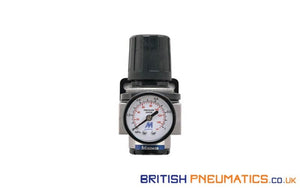

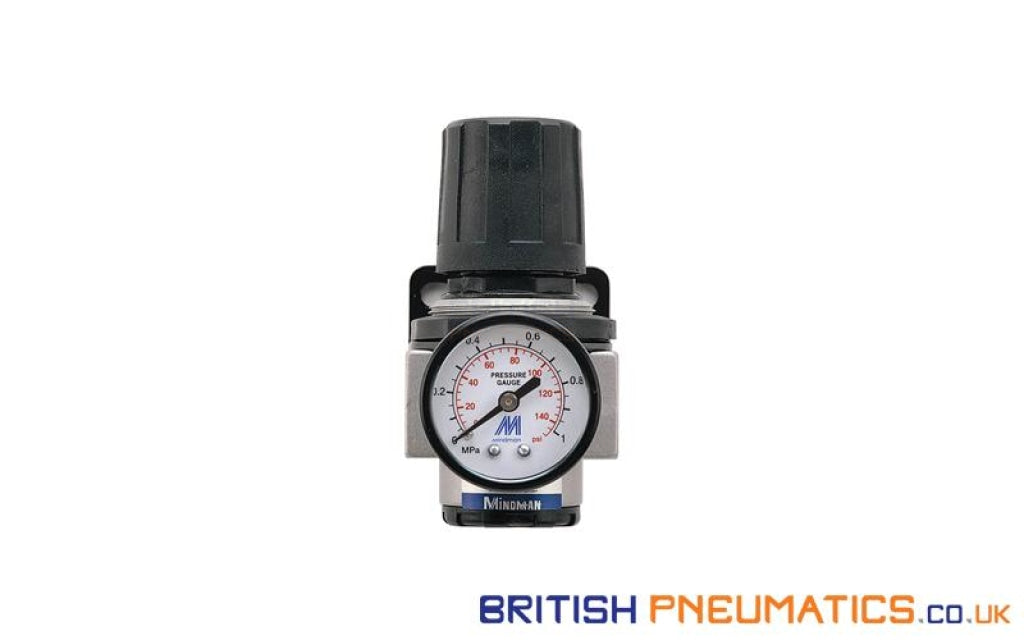

Mindman MAR300-8A Pressure Regulator (0.5 to 10bar) 1/4"
Mindman MAR300-8A 'Quick Specs': 1/4" Port Conncetions. 0.5-10bar. 2000l/m. Made in Taiwan. Premium plastic chasis.
This is a premium pressure regulator from Mindman that modulates from 0.5 to 10bar. Does not come with pressure gauge (see MAR300-8A-C for one that comes pressure gauge.)
G and NPT thread variants are also available.
Working Principle
Normally, as the inlet pressure (IN) is higher than the setting pressure (pressure of outlet), the backflow valve is closed. If the inlet pressure is cut off, backflow valve will be opened and the outlet pressure is exhausted to IN port.
Technical Specifications of MAR300-8A
Port Size | 1/4" |
Maximum Operating Pressure | 1 MPa |
Proof Pressure |
1.5 MPa |
Operating Temperature | -5 to +60 Celsius |
Mounting | L Type Bracket |
