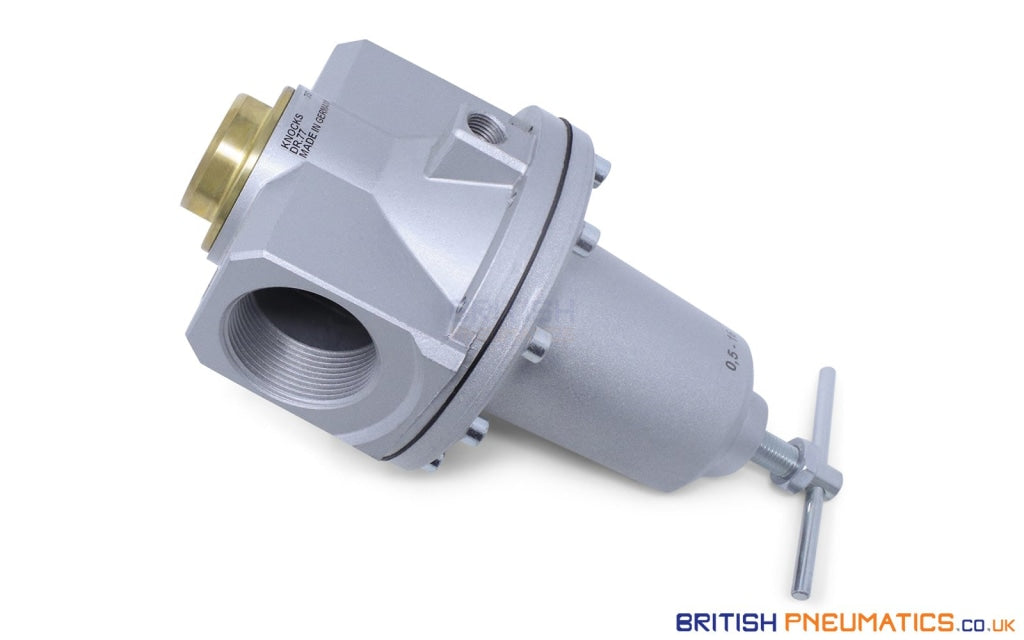

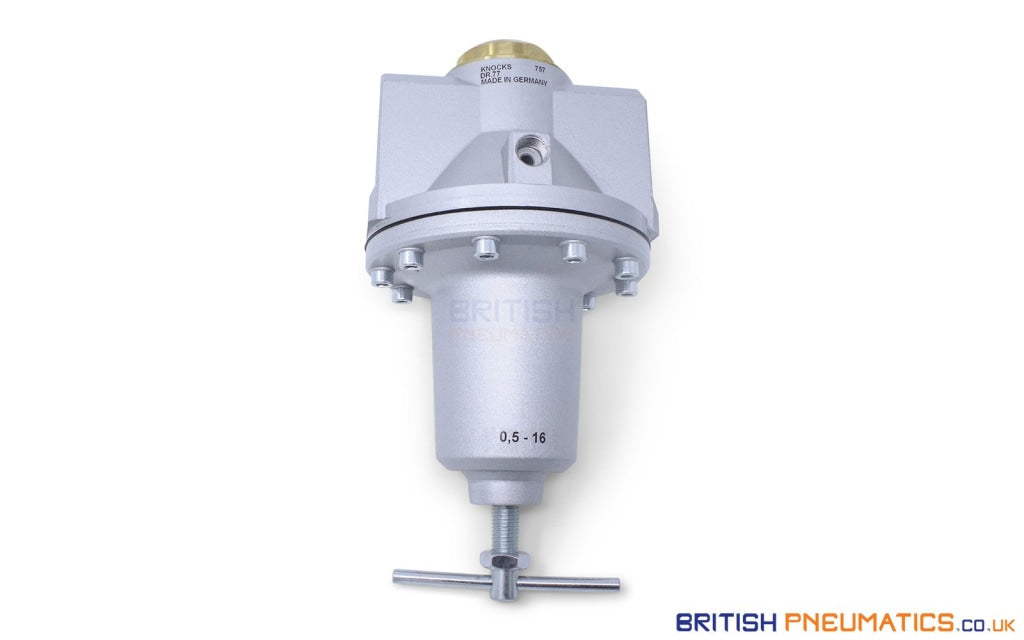

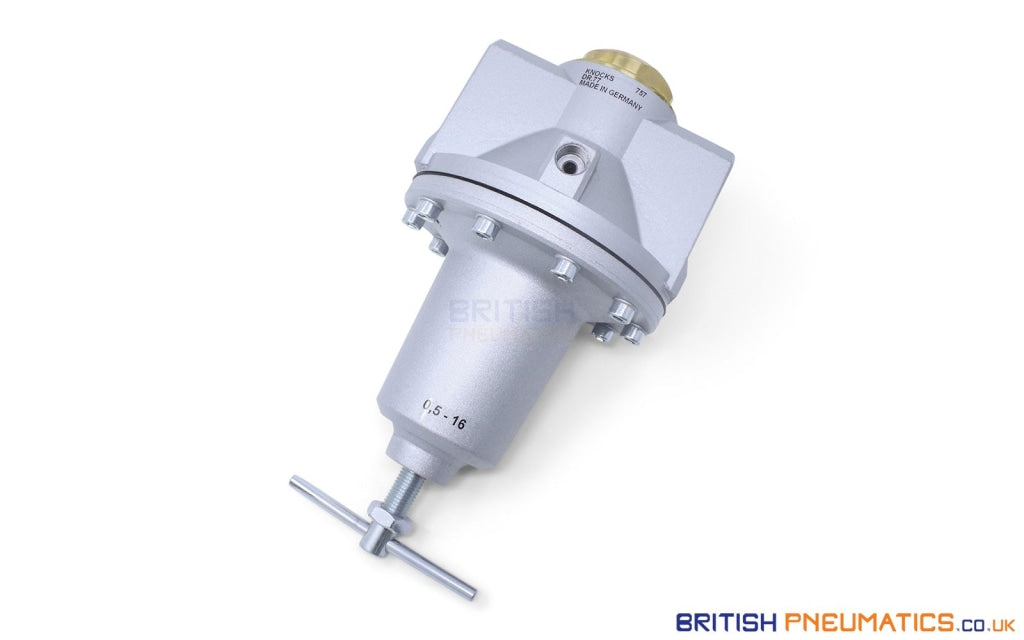

Knocks DR.77 Pressure Regulator , G1.5" (0.5-10 bar)
KNOCKS 1.5" Pressure Regulator. This is one of the largest pneumatic filters available on the market with port connections of G 1.5". It modulates from 0.5 to 10bar.
Made in Germany
MPN 9.1577.00.030.0 G 1½" , 0.5-16bar
Technical Specifications
| Port size | G 1½" |
| Description | Air line regulator with diaphragm and relieving feature |
| Mounting | Arbitrary |
| Supply pressure | Pe max.25 bar |
| Reduced pressure | Pa 0,5-10 bar standard.0,5-3 bar, 0,5-6 bar, 0,5-16 bar |
| Media and ambient temperature | Max. 80℃ (oth. temperature ranges available upon request) |
| Fixing | Panel mounting, Bracket |
