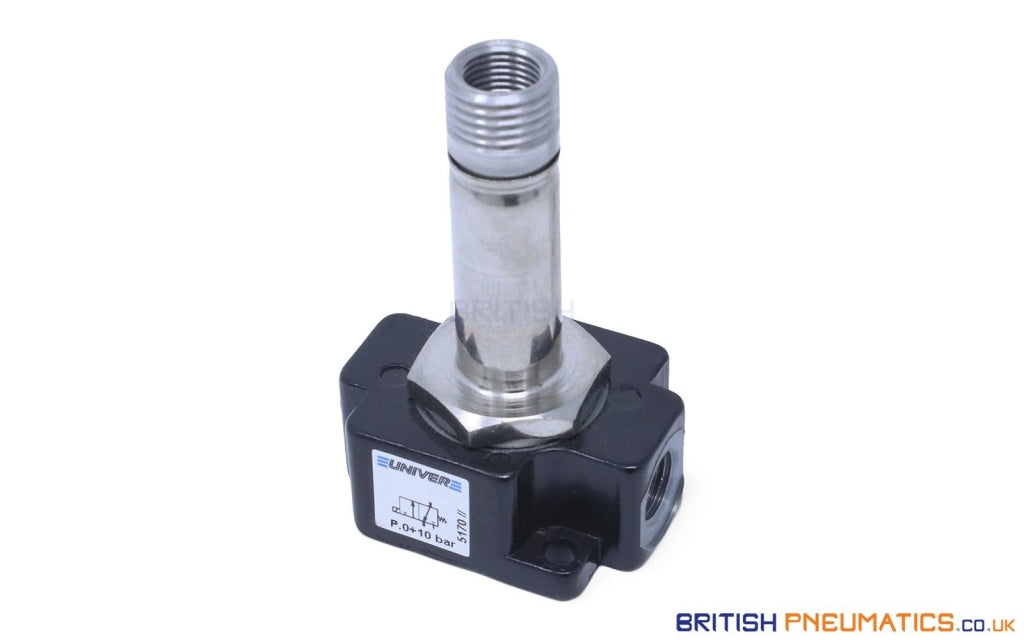

Univer AA-0184R (U1) Minature Electropilot

Name: Univer AA-0184R (U1) Minature Electropilot
Brand: Univer
SKU: UN10003
Price: 29.3 GBP
Availability: InStock

5-7 days lead time

Free shipping within the UK! Worldwide shipping also available.

UNIVER
U1 MINIATURE ELECTROPILOTS

3/2 U1 Electropilot
AA-0184R
For mounting on U1 G1/8 sub-base

Technical Specifications

Ambient temperature	-10÷50 ℃
Fluid	50 μm filtered air, with or without lubrication, neutral gases
Commutation system	Direct intervention poppet with cushioned seals
Pressure	0÷10 bar (2/2, 3/2 NC), 3÷10 bar (3/2 NO)
Connections	on sub-base / threaded on the body
Nominal bore (mm)	Sub-base: 1,2÷1,5 G1/8: 1÷1,5 M5: 1÷1,5 CNOMO: 1,2÷1,5
Nominal flow rate (Nl/min)	Sub-base: 30÷60 G1/8: 28÷60 M5: 30÷60 CNOMO: 33÷45
Power consumption	Sub-base, G1/8: 3,5 W(DC)-5 VA (AC) M5, CNOMO: 2,5 W(DC)-3,3 VA (AC)
Connector	Sub-base, G1/8, M5: AM5110 CNOMO: AM5111
Sleeve	U1
Coil	DA-DC
Voltage	12V DC , 24V DC , 24V AC , 110V AC , 230V AC
Protection degree	IP65
