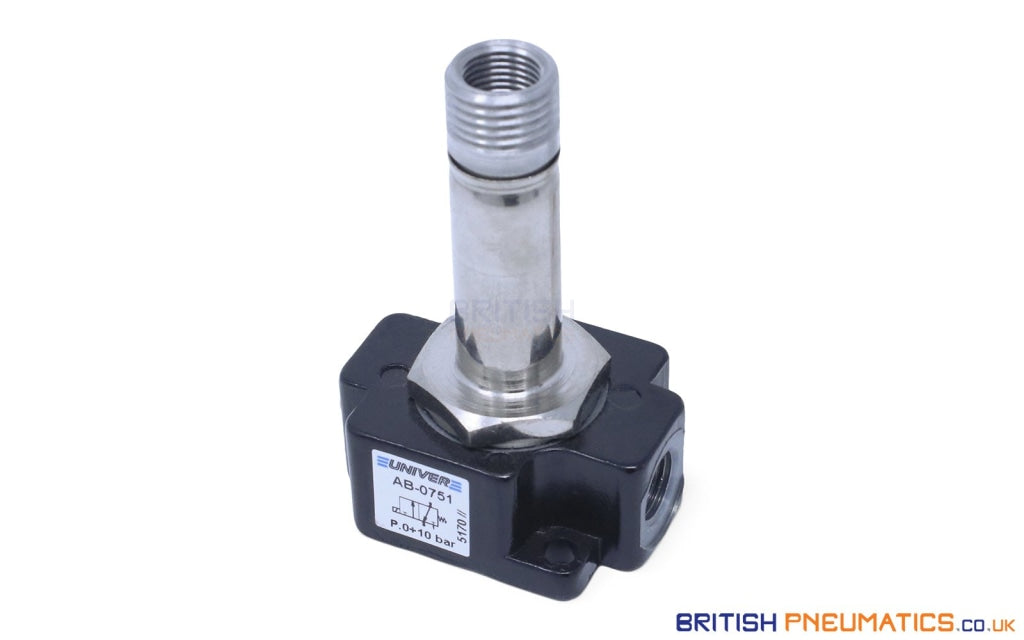

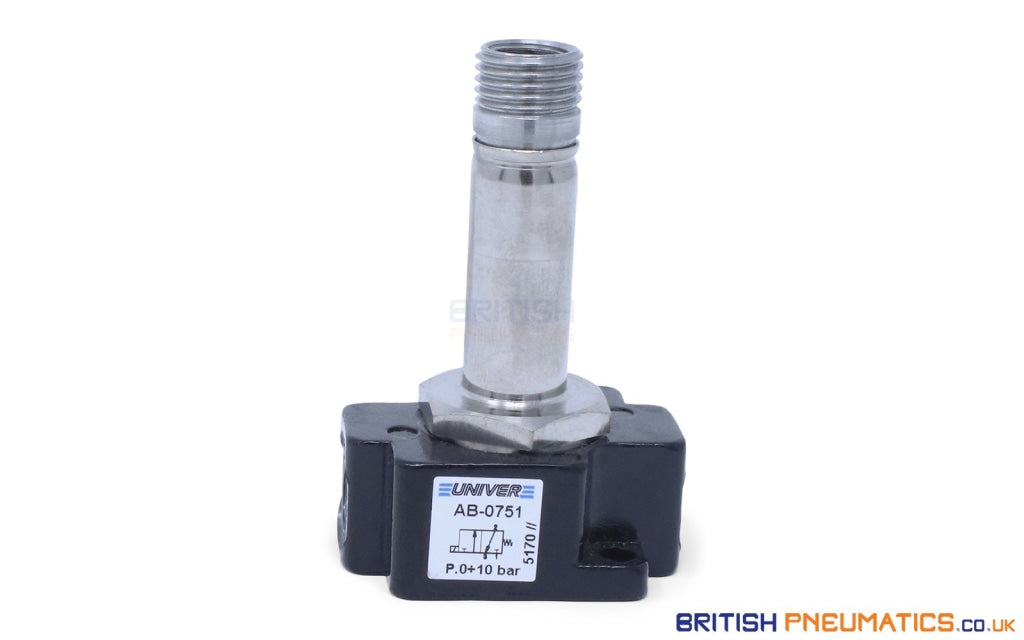

Univer AB-0751 (U2) Minature Electropilot
UNIVER U2 MINIATURE ELECTROPILOT AB-0751. This electropilot from Univer is Normally-Closed. High Reliablity. Made in Italy.
3/2 U2 Electropilot G1/8
AB-0751, NC
Technical Specifications
| Ambient temperature | -10÷50 ℃ |
| Fluid | 10 μm filtered air, with or without lubrication, neutral gases |
| Commutation system | Direct intervention poppet with cushioned seals |
| Pressure | 0÷10 bar (2/2, 3/2 NC), 3÷10 bar (3/2 NO) |
| Connections | on sub-base / threaded on the body |
| Nominal bore (mm) |
|
| Nominal flow rate (Nl/min) |
|
| Power consumption |
|
| Connector | AM-5111 |
| Sleeve | U2 |
| Coil | DB |
| Voltage | 12V DC , 24V DC , 24V AC , 110V AC , 230V AC |
| Protection degree | IP65 |
