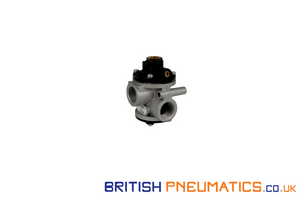

Univer AF-2610 Poppet Valve, 1/2"
UNIVER
POPPET VALVES FOR COMPRESSED AIR
Pneumatic valve with external operation G 1"
AF-2610 3/2 NC-NO
Technical Specifications
| Ambient temperature | -10 ÷ +50℃ |
| Fluid | 50 μm filtered air, with or without lubrication |
| Commutation System | Poppet |
| Pressure Max | 10 bar |
| Valve body | Zamak (G 1/8÷G 1), Aluminium (G 1½) |
| Seals | Polyurethane conical poppets and Vulkollan diaphragm |
| Spool | Aluminium (G 1/8 ÷ G 3/8), Steel + plastic (G 1/2÷G 1½) |
| Connections | G 1/8 | G 1/4 | G 3/8 | G 1/2 | G 3/4 | G 1 | G 1½ |
| Nominal bore (mm) | 5,5 | 8 | 10 | 15 | 19 | 25 | 39 |
| Nominal flow rate (Nl/min) | 580 | 1100 | 1500 | 5400 | 6500 | 13500 | 35000 |
| G 1/8 ÷ G 3/8 | G 1/4 ÷ G 1½ | |
| Electropilot | U 1 | U 2 |
| Coil | DA | DB |
| Power consumption | 3,5 W (DC) - 5 VA (AC) | 11 W (DC) - 10 VA (AC) |
| Connector | AM-5110 | AM-51111 |
| Voltage | 12 V DC, 24 V DC, 24 V AC, 110 V AC, 230 V AC |
| Manual override | With 2 position screw |
