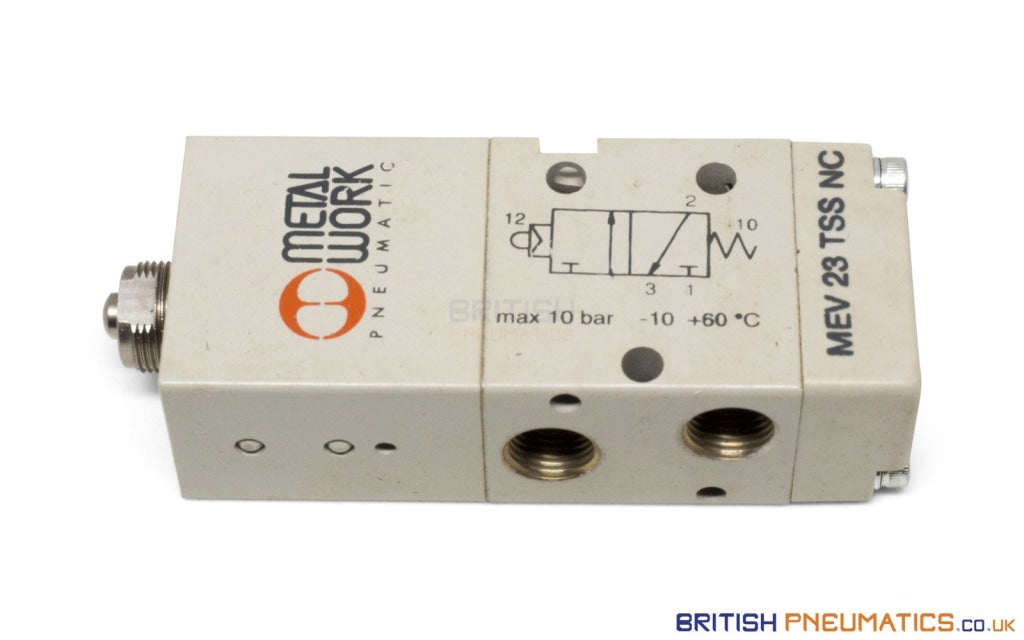

Metal Work MEV 23 TSS NC Mechanical Valve (7001000200) 1/8" 3/2
'Quick Specs': Metal Work MPN 7001000200. Metallic body. Normally Closed. 1/8". 3/2 way. Made in Italy. Aluminium valve body.
The MEV 23 TSS NC is a mechanical valve, from Metal Work, that is popular in general industry. It has 1/8" port connections and is a small, convenient size for installation.
Technical Specifications
| Operation Mode |
Mechanical |
| Port Size and Thread |
G 1/8" (BSPP) |
| Operating Pressure Range |
Vacuum to 10 bar |
| Operating Temperature Range | -10 to +60 Celsius |
| Nominal Diameter | 5mm |
| Conductance (Nl/min - bar) | 121.43 |
| Flow Rate at 6 bar ΔP 0.5 bar (Nl/min) | 400 |
| Flow Rate at 6 bar ΔP 1 bar (Nl/min) | 550 |
