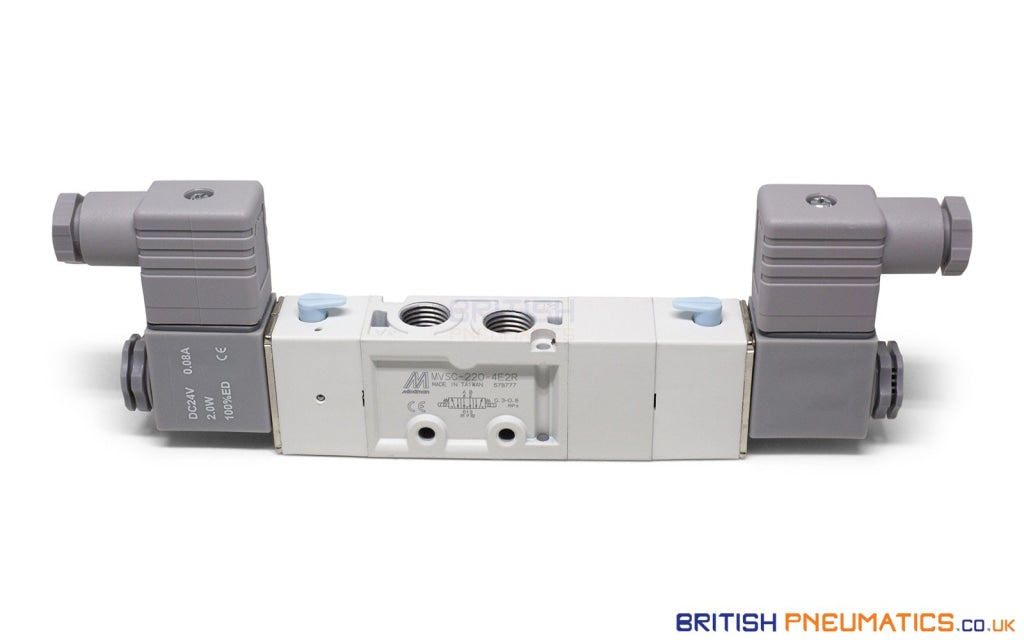

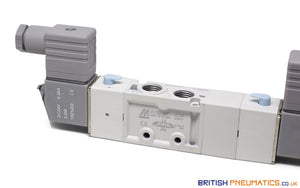

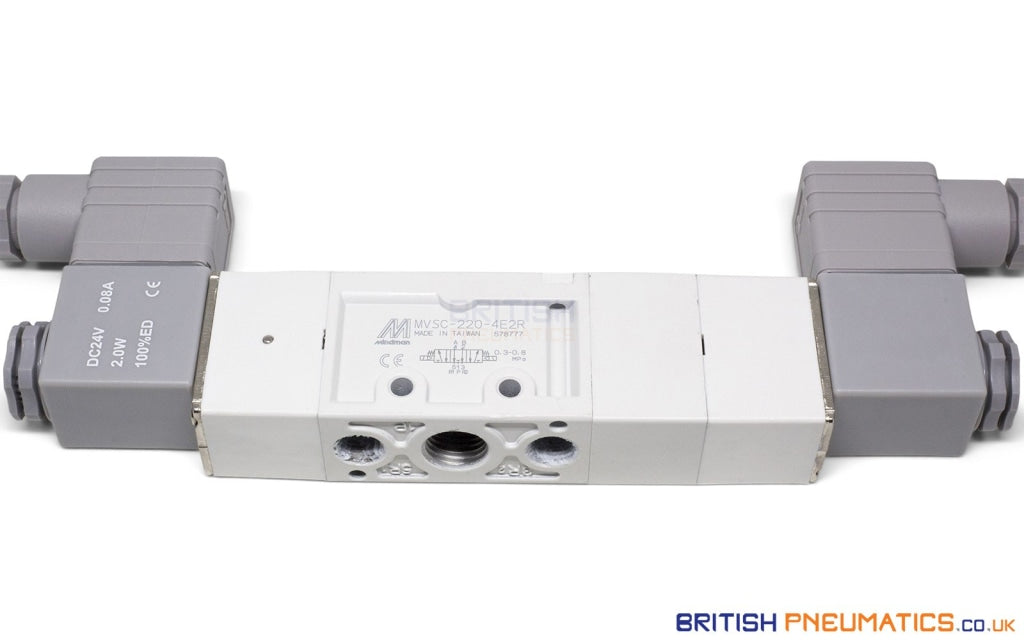

Mindman MVSC-220-4E2R DC24V Solenoid Valve 5/3 1/4" BSP - British Pneumatics
Mindman MVSC-220-4E2R DC24V Solenoid Valve 5/3 1/4" BSP - British Pneumatics
Mindman MVSC-220-4E2R DC24V Solenoid Valve 5/3 1/4" BSP - British Pneumatics

Mindman MVSC-220-4E2R DC24V Solenoid Valve 5/3 1/4"

Regular price
£92.40
Sale price
£92.40
Free shipping within the UK! Worldwide shipping also available.

MINDMAN MVSC-220-4E2R 1/4"

5/3 (5 Ports, 3 Positions)


MVSC-220 series
Solenoid valve
MVSC-220-4E2R 1/4

Technical Specifications

Model 4E2R
Bore no.: 8A
Port size Rc 1/4
No. of port 5
No. of position 3
Medium Air
Operating pressure range 0.3~0.8 MPa
Proof pressure 1 MPa
Ambient temperature -5 ~ + 50℃ (No freezing)
Effective orifice 16 mm²
Reponse time 40 ms
Voltage AC110V, 220V (50/60)Hz, DC24V
Power consumption AC=4.8/4.4VA, 6/4.9VA, DC=2W
Available voltage range ± 10%


Made in Taiwan.
