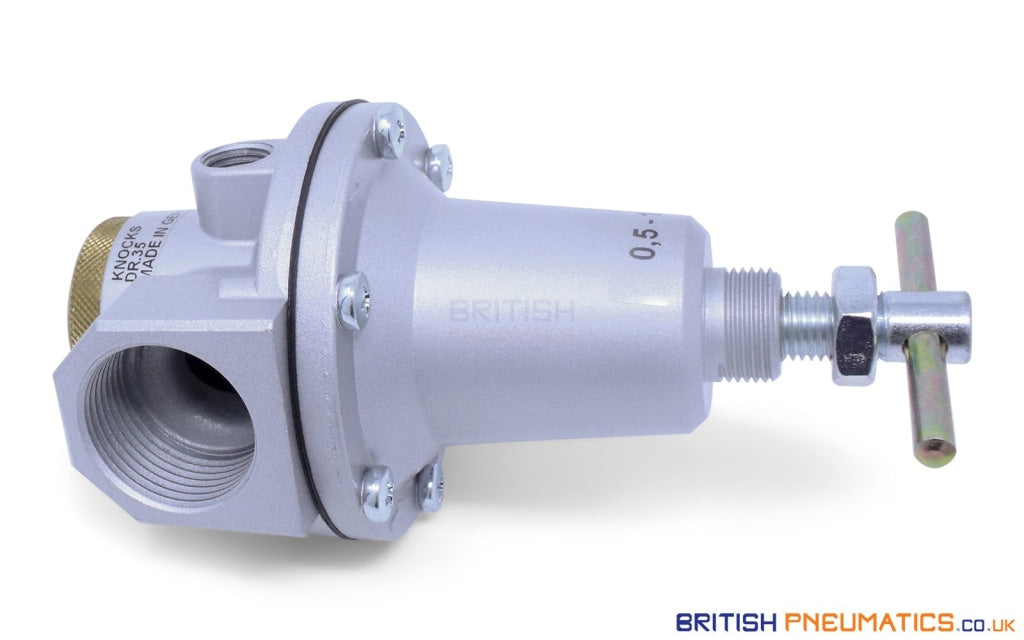

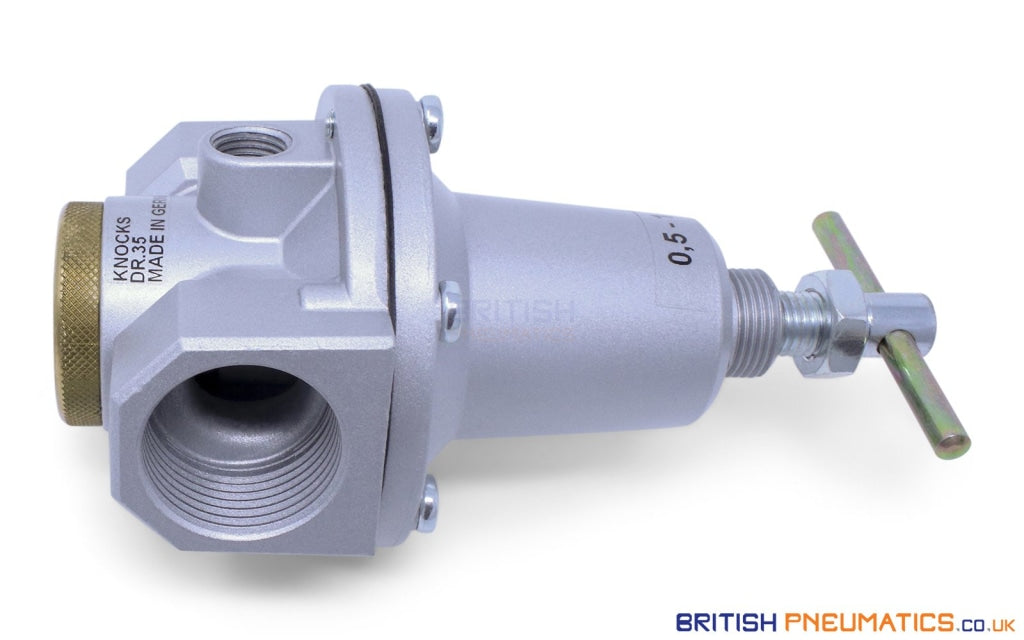

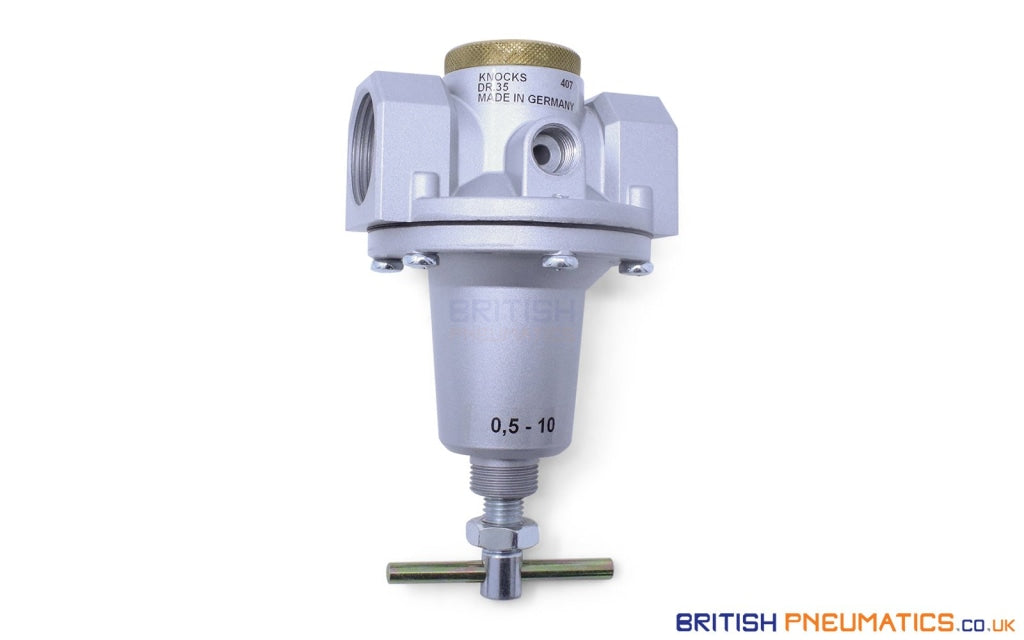

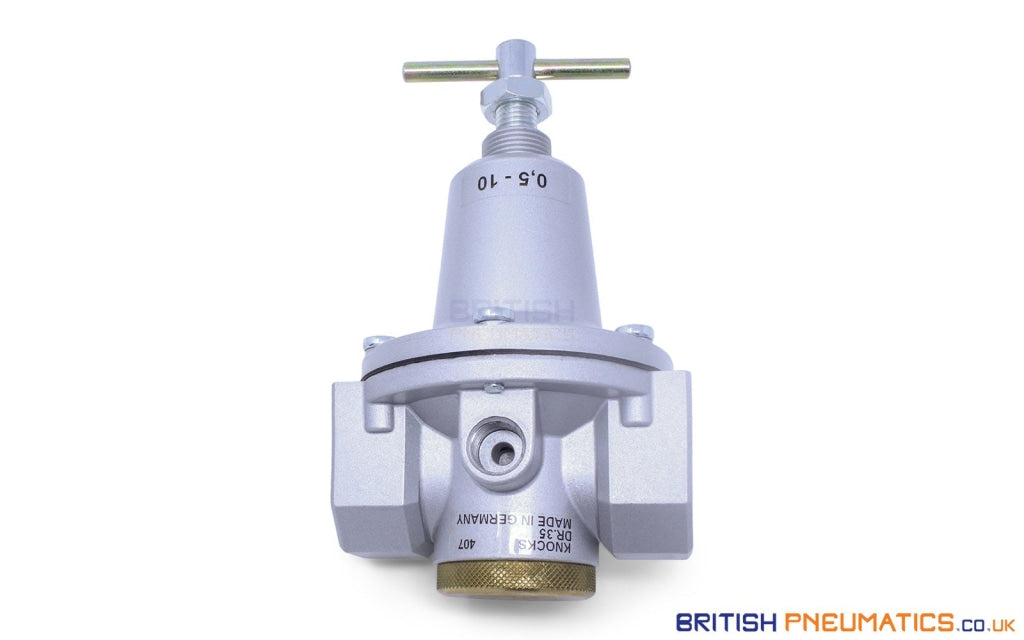

Knocks DR.35 Pneumatic Pressure Regulator, 1", (0.5-10BAR)
KNOCKS Pressure Regulator with G 1" ports. Metallic chasis. Internal diaphragm with relieving feature.
Made in Germany
MPN 9.1535.00.000.0V G 1" , 0.5-10bar
Technical Specifications
| Port size | G 1" |
| Description | Air line regulator with diaphragm and relieving feature |
| Mounting | Arbitrary |
| Supply pressure | Pe max.25 bar |
| Reduced pressure | Pa 0,5-10 bar standard.0,5-3 bar, 0,5-6 bar, 0,5-16 bar |
| Media and ambient temperature | Max. 80℃ (oth. temperature ranges available upon request) |
| Fixing | Panel mounting, Bracket |
