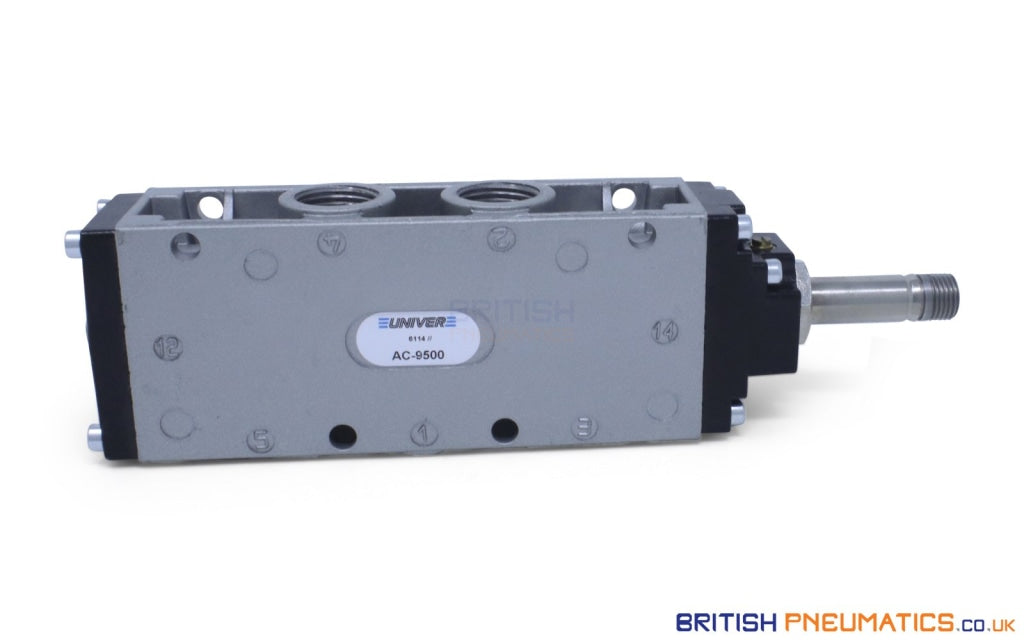

Univer AC-9500 (U2) Solenoid Valve

Regular price: £231.47* £251.60
*After 8% bulk order discount applied at checkout.
Sale price: £251.60

Free shipping within the UK! Worldwide shipping also available.

Voltage

Quantity

Quantity must be 1 or more

Univer AC-9500. 1/2".
Electrical impulse
Single impulse, AC-9500, G1/2

Coil options come with Univer DIN connector.

Technical Specifications

Ambient temperature	-10÷45 ℃
Fluid	50 μm filtered air, with or without lubrication
Commutation system	Poppet mixed system
Pressure Max	10 bar
Connections	G1/8 G1/4 G1/2
Nominal bore (mm)	G1/8: 6 G1/4: 8 G1/2: 15
Nominal flow rate (Nl/min)	G1/8: 1080 G1/4: 1600 G1/2: 4600
Electropilot	G1/8: U1 G1/4: U1 G1/2: U2
Coil	G1/8: DA G1/4: DA G1/2: DB
Connector	G1/8: AM-5110 G1/4: AM-5110 G1/2: AM-5111
Power consumption	G1/8: 3,5W (DC), 5VA (AC) G1/4: 3,5W (DC), 5VA (AC) G1/2: 11W (DC), 10VA (AC)
Voltage	12V DC, 24V DC, 24V AC, 110V AC, 230V AC
Valve body	G1/8: Zamak G1/4: Zamak G1/2: Die-cast aluminium
Seals	Nitrile rubber, Polyurethane
Spool	Aluminium
Manual override	2-pisition screw
