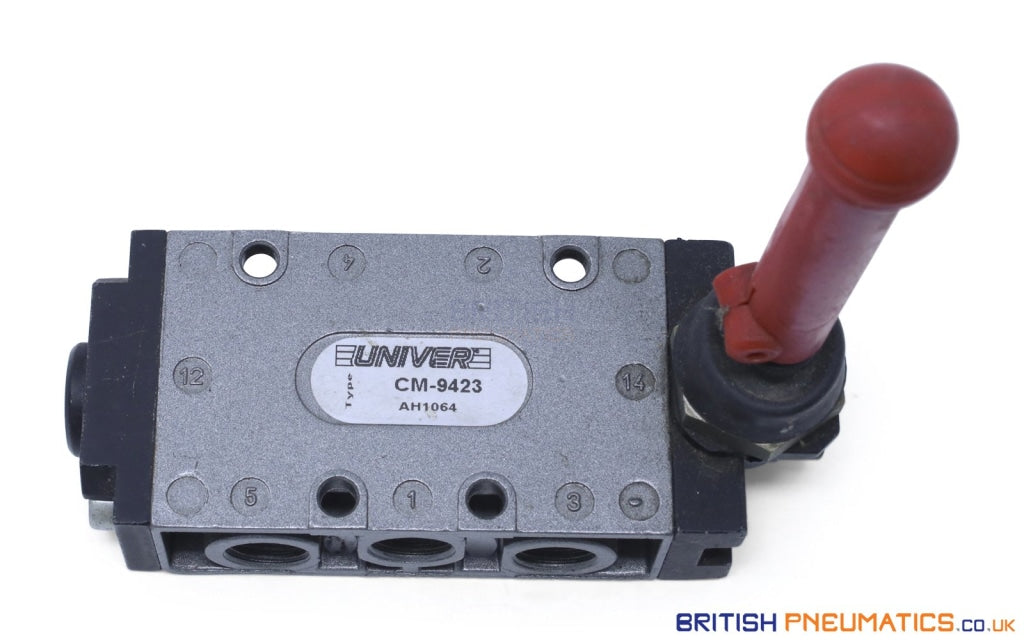

Univer CM-9423 Hand Lever Spool Valve
This is the Univer CM-9423 Hand Valve with 90° lever with 3 positions, It has G1/4" ports and a finely-finished zinc alloy chasis for superior robustness. Its aluminium spool is resistance to jams.
Made in Italy.
Technical Specifications
| Ambient temperature | -10÷45℃ |
| Fluid | 50 μm filtered air, with or without lubrication |
| Commutation system | Spool |
| Valve Body | die-cast zamak (G 1/8), aluminium (G 1/4) |
| Seals | Nitrile rubber |
| Spool | Aluminium |
| Electropilot / Coil | AA Series / U1-U3 |
| Power Consumption | 3,5 W (DC)-5 VA (AC) |
| Connector | AM5110 |
| Voltage | 12VDC-24VDC-24VAC-110VAC-230VAC |
| Manual Override | Two-position screw |
