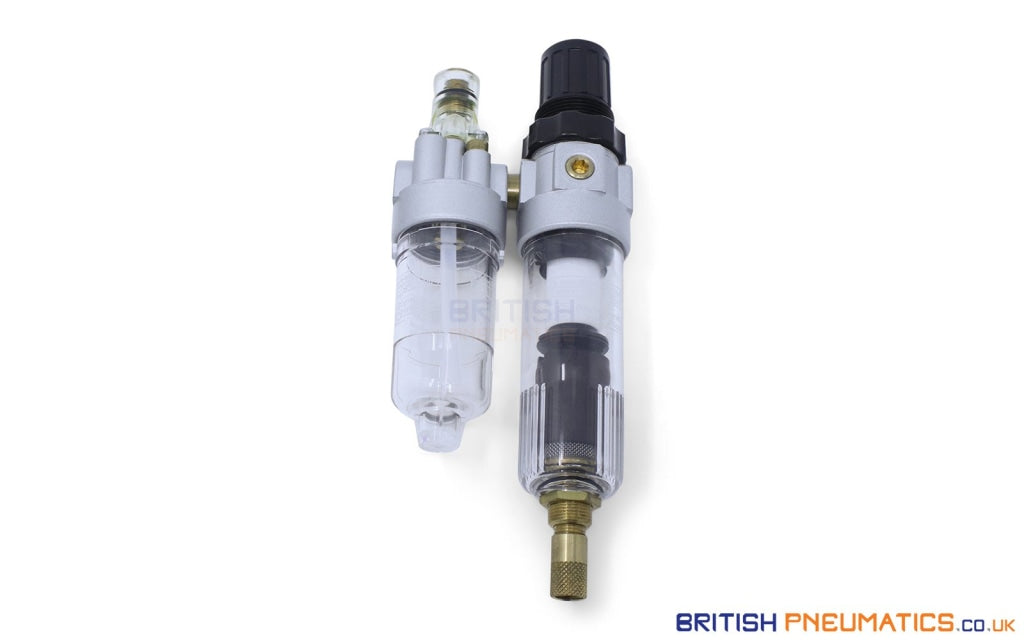

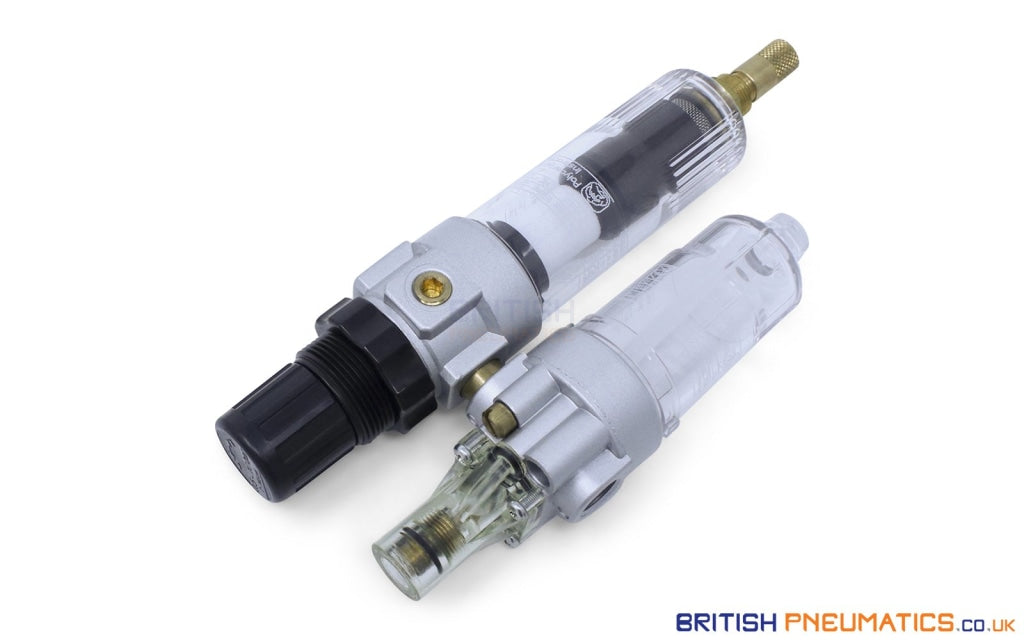

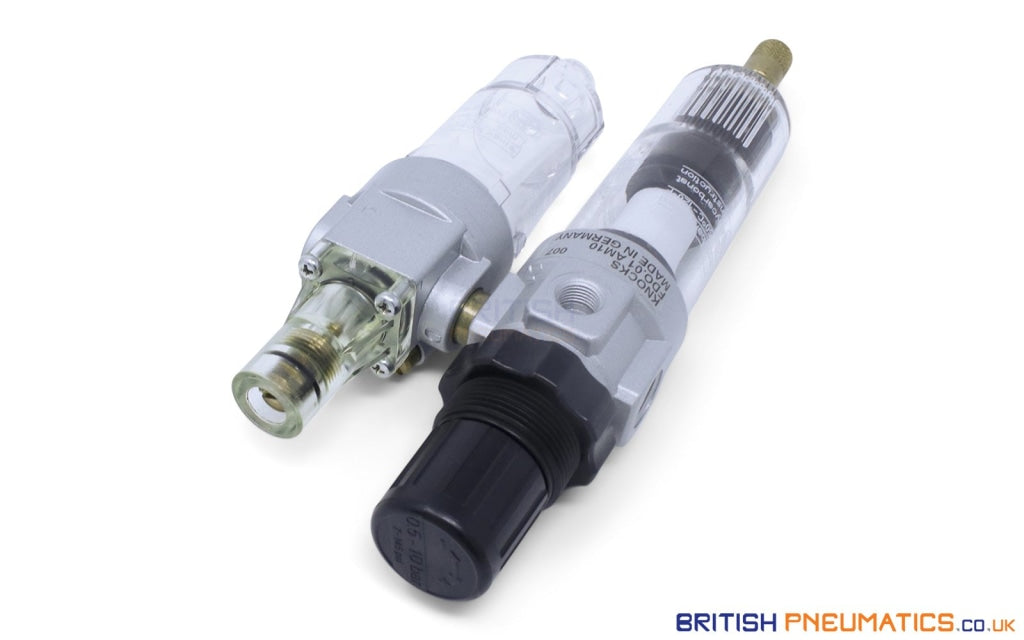

Knocks FDO.01 AM10 FRL, G1/4", 0.5-10 bar (Auto Drain) Service Unit Assembly
KNOCKS 'Service Unit Assembly' is a full FRL solution with G 1/4" port connections (BSPP). The FRL is made in Germany.
Made in Germany
MPN 9.3101.00.010.0V
G 1/4, Auto drain
Technical Specifications
| Port size | G 1/4 |
| Description | Air line regulator with diaphragm and relieving feature, centrifugal force principle with sintered filter, propor.oiler |
| Mounting | Vertically, drain plug at bottom |
| Supply pressure | Pe max.16 bar Pe max. 20 bar with metal bowl |
| Reduced pressure | Pa 0,5-10 bar standard.0,1-3 bar, 0,2-6 bar, 0,5-16 bar |
| Filter element | 5 μm standard (absolutely) |
| Media and ambient temperature | Max. 60℃ (oth. temperature ranges available upon request) |
| Bowl volume | Max. 16 cm³ condensation volume, 17 cm³ oil bowl |
| Drain model | Semi drain standard (HA4) |
| Fixing | Bracket |
