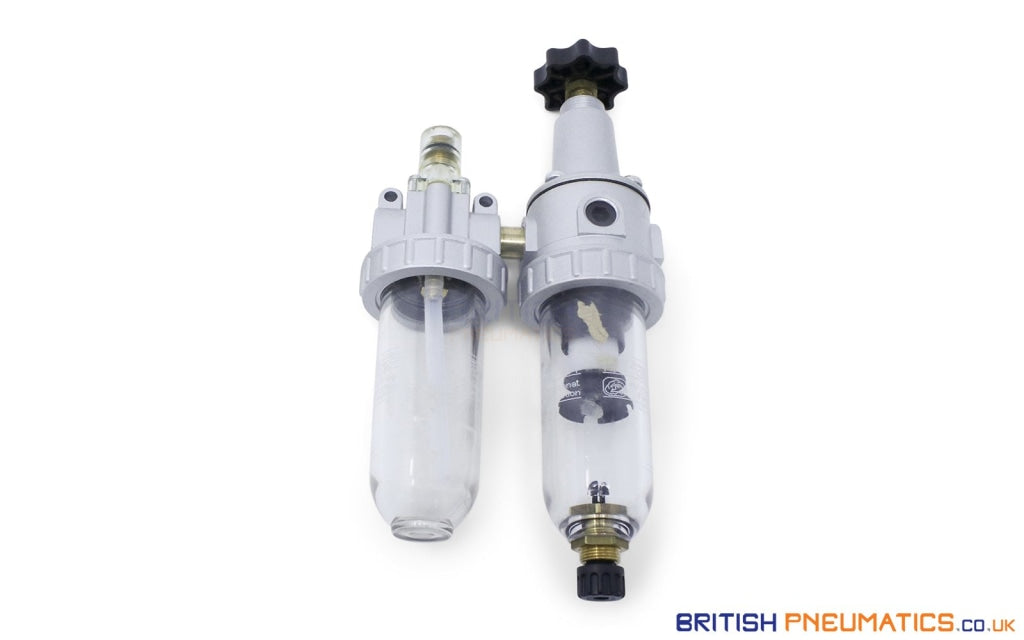

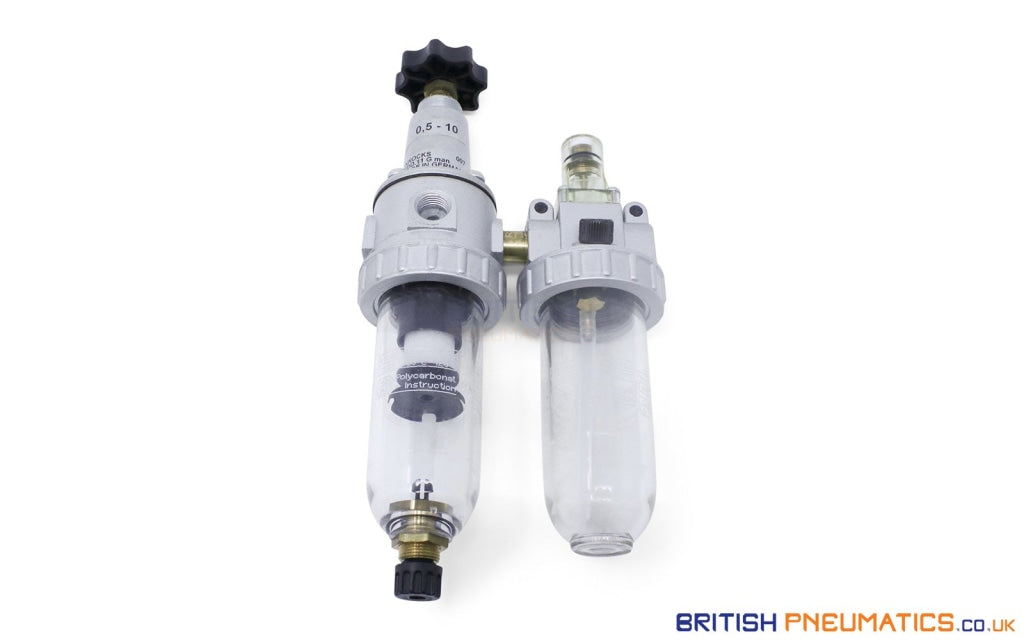

Knocks FDO.11 MAN FRL, 1/4" (Self Drain)
KNOCKS FDO11. G MAN FRL, or service unit assembly, for pneumatic systems use. This FRL comes with 1/4" port connections and is self drained.
Made in Germany
Technical Specifications
| Port size | G 1/4 |
| Description | Air line regulator with diaphragm and relieving feature, centrifugal force principle with sintered filter, propor.oiler |
| Mounting | Vertically, drain plug at bottom |
| Supply pressure | Pe max.16 bar |
| Reduced pressure | Pa 0,5-10 bar standard.0,1-3 bar, 0,2-6 bar, 0,5-16 bar |
| Filter element | 5 μm standard (absolutely) |
| Media and ambient temperature | Max. 60℃ (oth. temperature ranges available upon request) |
| Bowl volume | Max. 35 cm³ condensation volume, 40 cm³ oil bowl |
| Drain model | Manual drain standard (MAN) |
| Fixing | Bracket |
