Knocks FDO.54 G MAN (FDO.54 G HA3) FRL Service Unit Assemblies, 3/4" (Self Drain) (with 16 bar gauge)

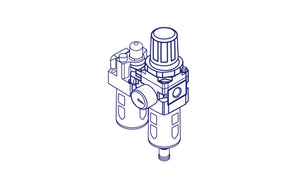

This is a KNOCKS FRL which is an assembly of a Filter Regulator, Lubricator, and 16 bar gauge. It is made in Germany and has G 3/4" port connections.
Made in Germany
G 3/4 Manual drain, with G63 16bar gauge
Technical Specifications
| Port size | G 3/4 |
| Description | Air line regulator with diaphragm and relieving feature, centrifugal force principle with sintered filter, propor.oiler |
| Mounting | Vertically, drain plug at bottom |
| Supply pressure | Pe max.16 bar Pe max.12 bar with auto drain Pe min. 1,5 bar with auto drain |
| Reduced pressure | Pa 0,5-10 bar standard.0,1-3 bar, 0,2-6 bar, 0,5-16 bar |
| Filter element | 40 μm standard , 8 μm (absolutely) |
| Media and ambient temperature | Max. 60℃ (oth. temperature ranges available upon request) |
| Bowl volume | Max. 300 cm³ condensation volume, 550 cm³ oil bowl |
| Drain model | Manual drain standard (MAN) |
| Fixing | Bracket |
