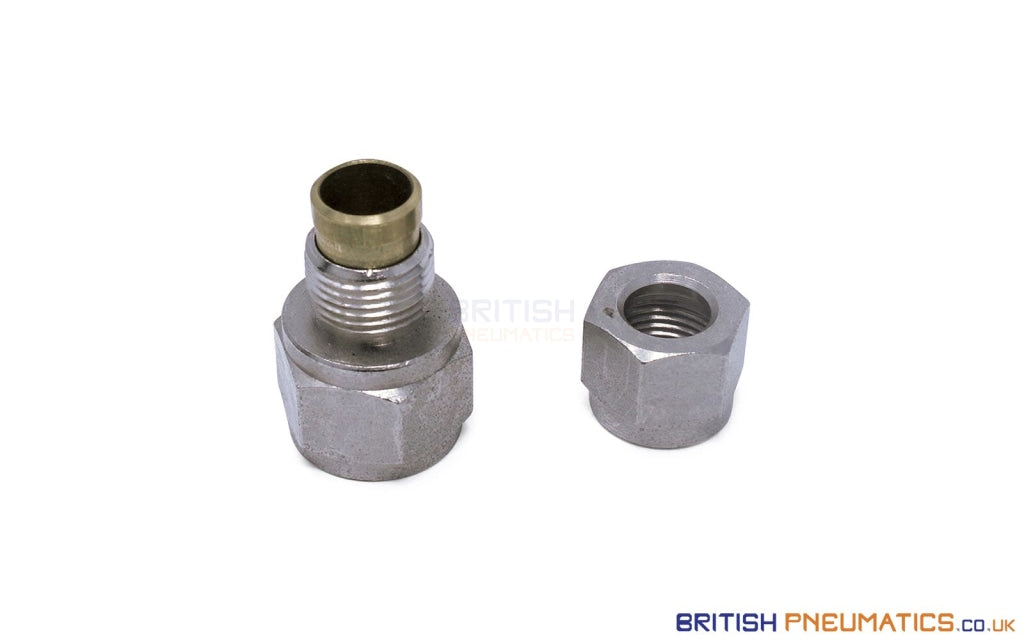

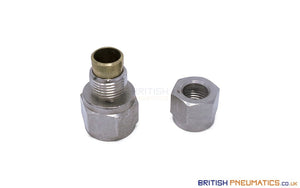

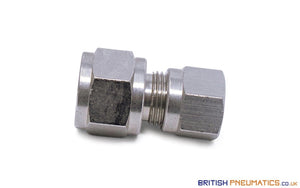

3/8" to 12mm Compression Fitting BSP Stud (Nickel Plated Brass)
Tube Ø 12-3/8"BSP Stud in nickel plated brass. Made in Italy by API. Compression fittings series O
MPN O121038
Technical Specifications
| Fluid | Compressed air |
| Pressure range | According to the tube used. Maximum 60 bar |
| Temperature range | According to the tube used |
| Parallel threads | UNI-ISO 228/1 (BSP) |
| Taper threads | UNI-ISO 7/1 (BSPT) |
| Connection tubes | Metal or Rilsan, Nylon, Polyurethane , Polyethylene (with insert tube) |
| Materials |
Body and nut: Nickel plated brass |
