10Mm Intermediate Y Push-In Fitting (Nickel Plated Brass) General
10Mm Intermediate Y Push-In Fitting (Nickel Plated Brass) General
10Mm Intermediate Y Push-In Fitting (Nickel Plated Brass) General

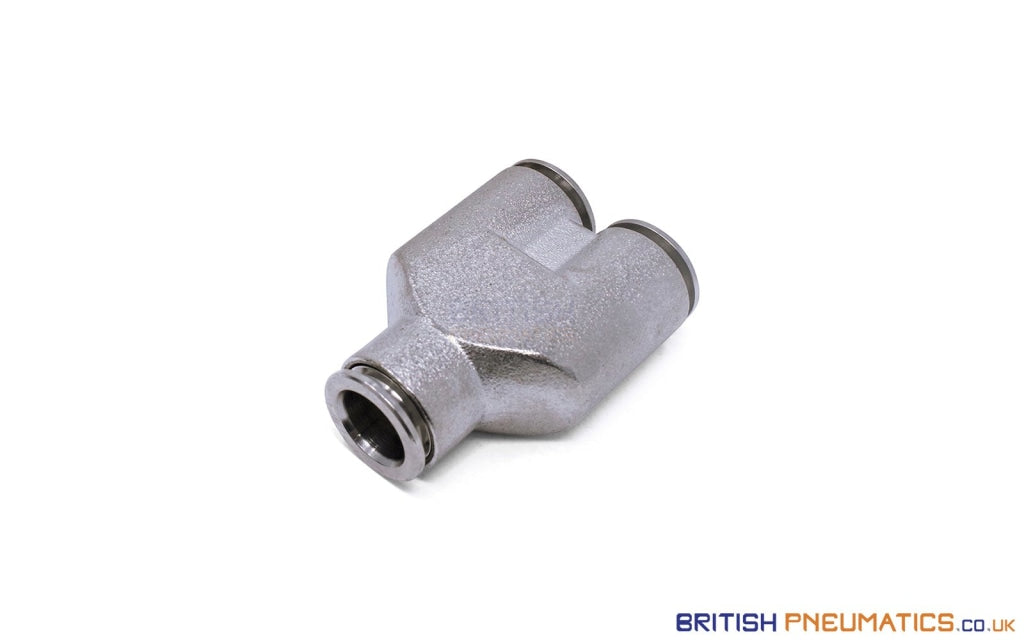

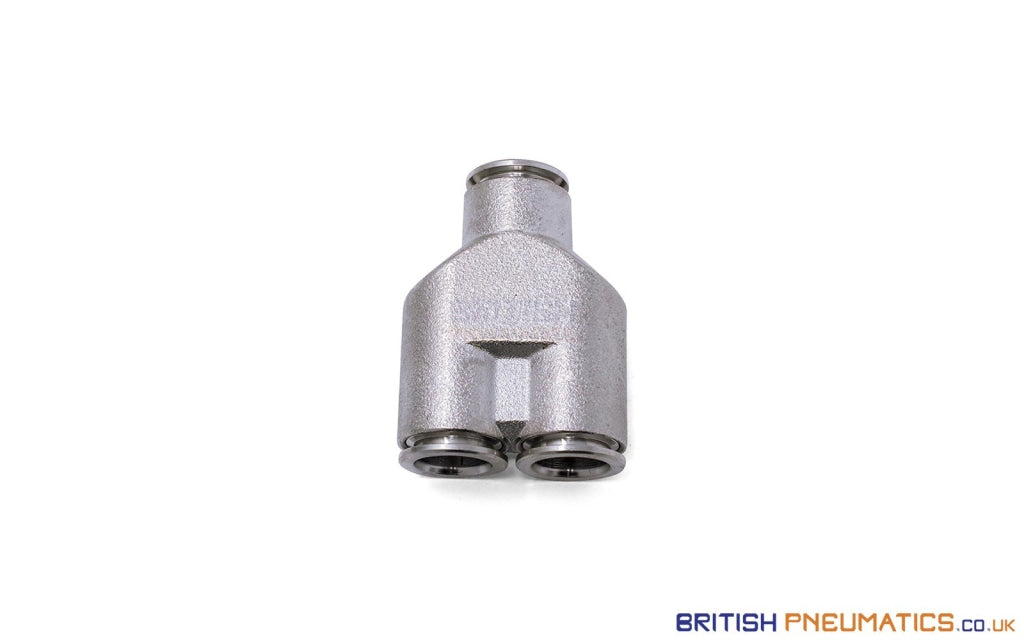

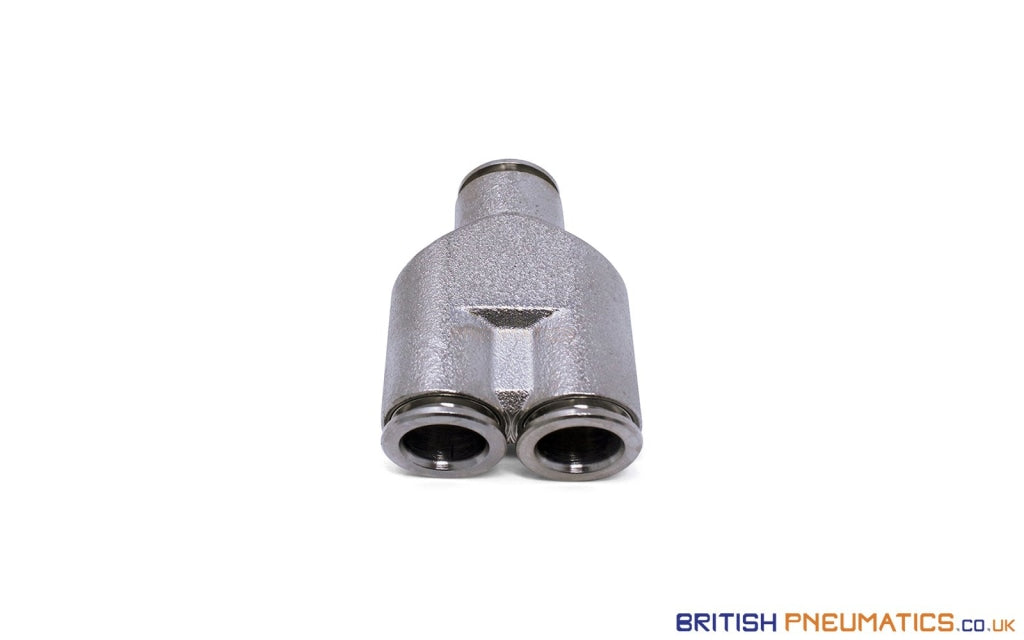

10mm Intermediate Y Push-In Fitting (Nickel Plated Brass)

Regular price
£8.20
Sale price
£8.20
Free shipping within the UK! Worldwide shipping also available.

Tube Ø10 Intermediate Y push-in fitting finished in nickel plated brass. Made in Italy by API. This is a high-end Y fitting, with all three push-in collars finished in nickel plated brass for added longevity. Suitable for all genral industrial use.

MPN R511010

Technical Specifications

Fluid Compressed air
Pressure range 0,5 ÷ 12 bar (Vacuum resistance: 750mm.Hg)
Temperature range -20℃ ÷ +70℃
Parallel threads UNI-ISO 228/1 (BSP)
Taper threads UNI-ISO 7/1 (BSPT)
Metric threads ISO R/262
Connection tubes Calibrated nylon, Polyurethane and Rilsan
Tube tolerances from Ø3 mm to 10mm: ±0,05mm
   Ø12mm and 14mm : ±0,1mm
Materials

Body and release collar: Nickel plated brass
Collet: Stainless steel
Seals: Nitrile rubber (NBR)
