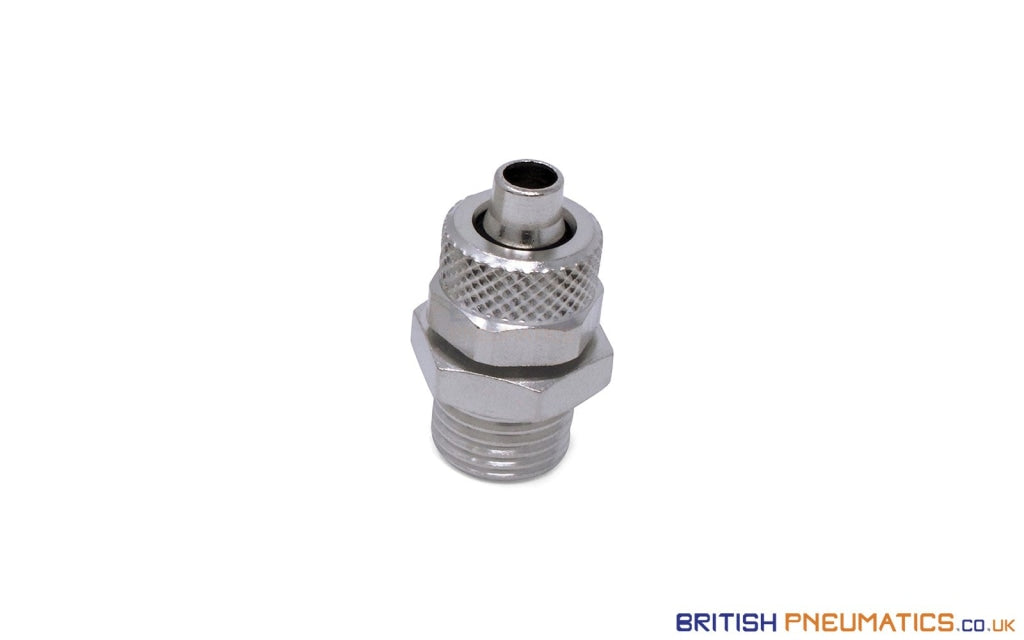

M5 to 6mm Male Stud Rapid Fittings (Nickel Plated Brass)
TubeØ6-4 x M5 Stud. Made in Italy by API. Rapid fittings series C
MPN C1206M5
Technical Specifications
| Fluid | Compressed air |
| Pressure range | Nominal pressure of fittings is always higher than tubes max one |
| Temperature range | -20℃ ÷ +90℃ |
| Parallel threads | UNI-ISO 228/1 (BSP) |
| Taper threads | UNI-ISO 7/1 (BSPT) |
| Metric threads | ISO R/262 |
| Connection tubes | Calibrated nylon, polyethylene, polyurethane and rilsan |
| Tube tolerances | from Ø4 mm to 10mm: ±0,05mm Ø12mm and 15mm : ±0,1mm |
| Materials |
Body and nut: Nickel plated brass |
