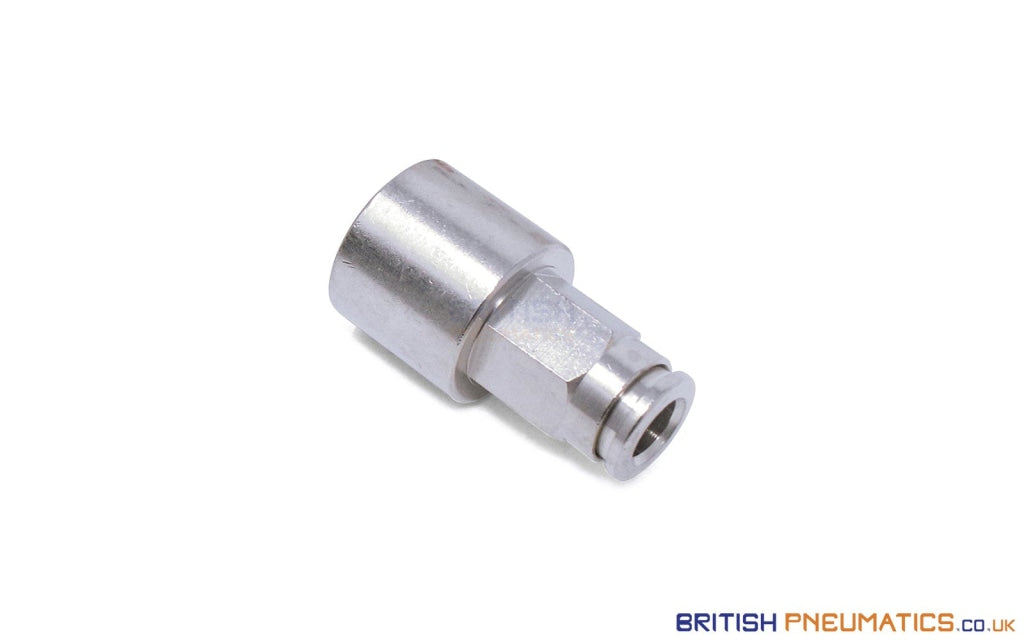

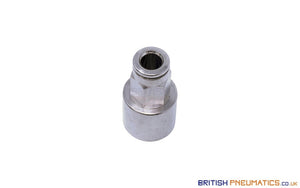

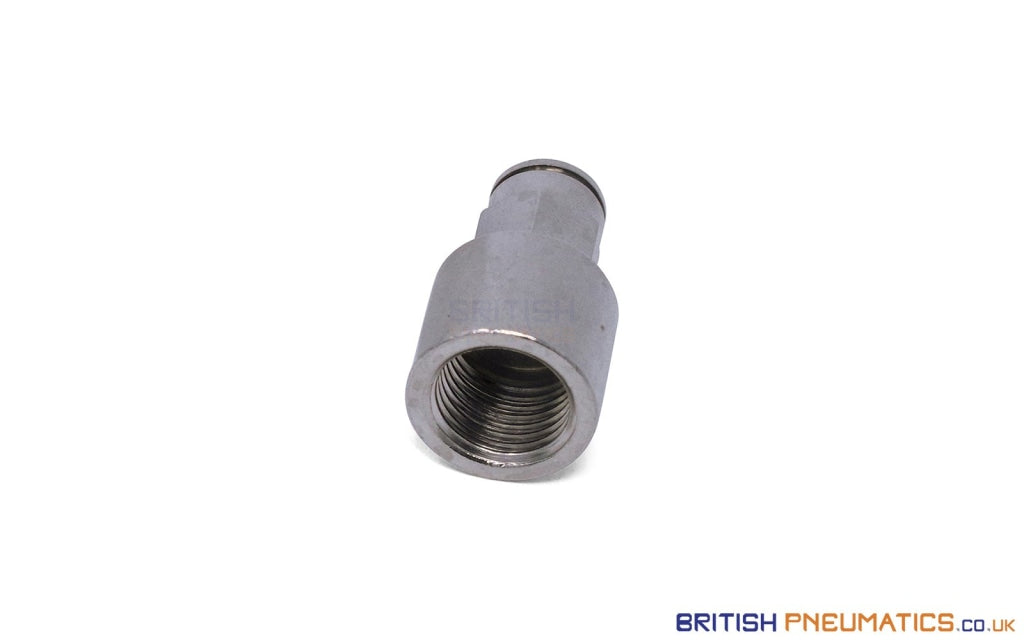

6mm to 1/4" Straight Female Stud Push-In Fitting (Nickel Plated Brass)

Regular price
£4.40
Sale price
£4.40
Free shipping within the UK! Worldwide shipping also available.

Tube Ø 6 mm x G1/4. Straight Parallel Female. UNIVER Nickel-plated brass push-in fitting. Made in Italy.

Ulike other nickel plated brass fittings, this UNIVER fitting has a push-in release ring that is also metallic for added robustness.


MPN. HB070614

Technical Specifications

Temperature  -20 to 70℃ (based on the type of tube)
Fluid Compressed air, vacuum
Pressure Max. 16 bar
Working Pressure -0,99÷10 bar
Body Nickel-plated brass
Fixing elements Nickel-plated brass with o-ring in NBR for parallel thread version (standard)
Clamp Stainless steel AISI 316
Release ring Nickel-plated brass
Application fields Pneumatic circuits
Recommended hoses Polyamide PA 10.12, Polyurethane Sh.A98, Co-polyurethane Sh.55D
