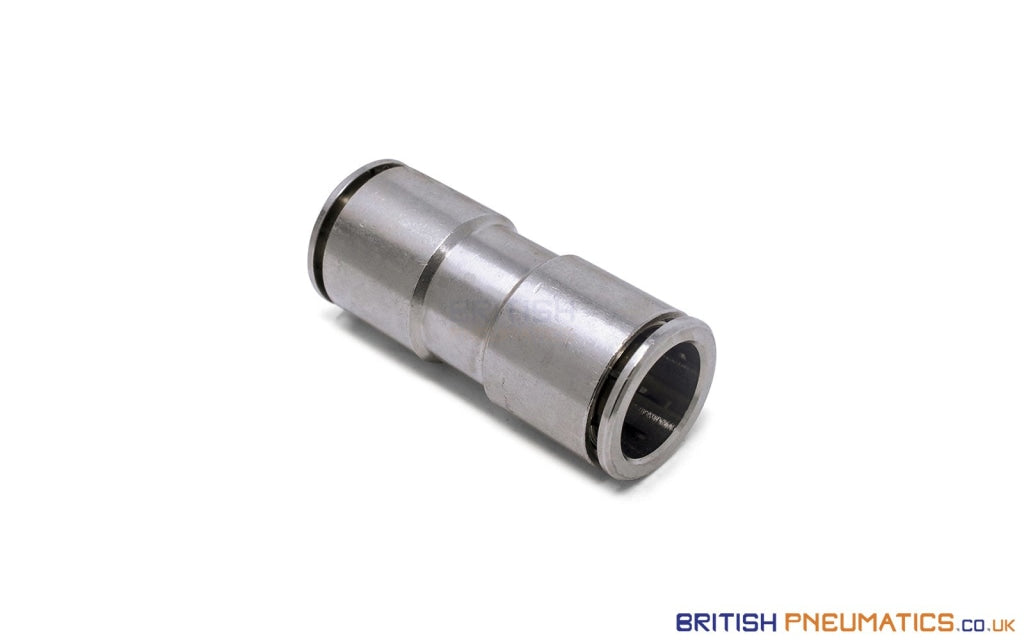

HB191212 12mm to 12mm Union Straight Push-In Fitting (Nickel Plated Brass)
Tube Ø 12-12 mm Union Straight Connector. UNIVER Nickel-plated brass push-in fitting.
MPN: HB191212
Technical Specifications
| Temperature | -20 to 70℃ (based on the type of tube) |
| Fluid | Compressed air, vacuum |
| Pressure Max. | 16 bar |
| Working Pressure | -0,99÷10 bar |
| Body | Nickel-plated brass |
| Fixing elements | Nickel-plated brass with o-ring in NBR for parallel thread version (standard) |
| Clamp | Stainless steel AISI 316 |
| Release ring | Nickel-plated brass |
| Application fields | Pneumatic circuits |
| Recommended hoses | Polyamide PA 10.12, Polyurethane Sh.A98, Co-polyurethane Sh.55D |
