Watson Branch Y 6Mm To 1/8 Pneumatic Fitting (Ctx-6-01) General

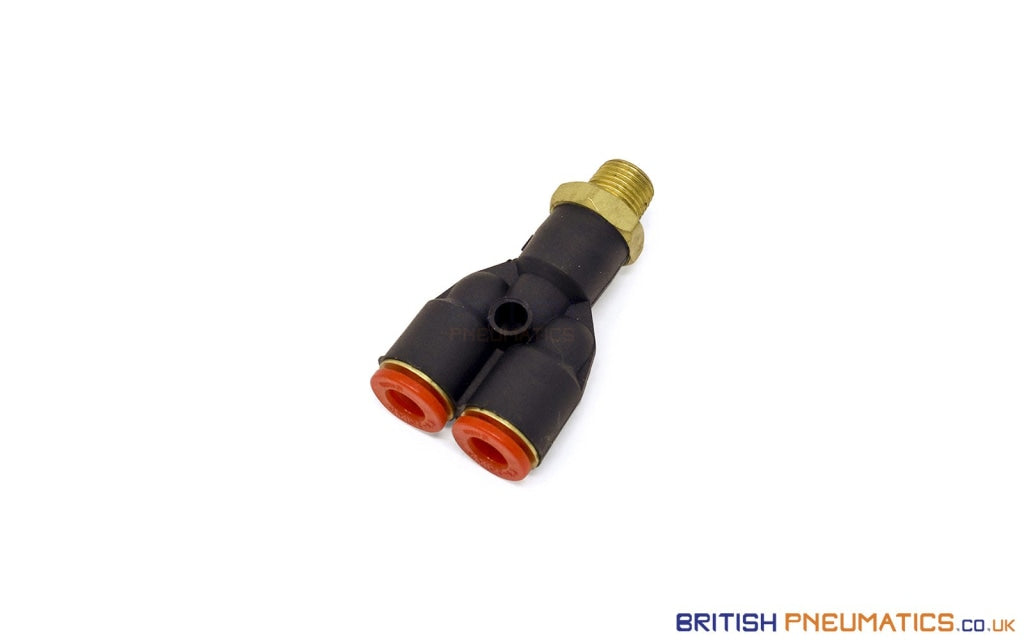

Watson Branch Y 6mm to 1/8" Pneumatic Fitting (CTX-6-01)

Regular price
£2.30
Sale price
£2.30
Free shipping within the UK! Worldwide shipping also available.

This is Watson Industries Branch Y pneumatic fitting that has 6mm Push-In ports on two of the ends, and a 1/8" BSP male thread on the middle end. This is a real value proposition due to its quality to price ratio, and is one of our popular pneumatic fitting products in the UK.

Branch Y Fittings

Branch Y fittings are a type of Y fittings that have a threaded connection in the middle end whilst the two other ends have push-in fittings.

They are used to connect to pneumatic components with a threaded connection (e.g. valves, cylinders), whereby compressed air is still able to flow through a path, without entering the component.

Push-In Fitting Usage

With Push-In fittings, simply place your tubing into the tube end of the fitting, and lock jaws will engage to. A gentle tug will ensure that your tubing is locked into place, rendering it suitable for high pressure usage in pneumatic systems.

To disconnect the tubing, push the release ring. This disengages the lock jaws, and the tubing is able to move freely.

Technical Specifications

Type of Connection Threaded to Metric Tube
Thread Size 1/8"
Tubing Size 6mm
Fluid Medium Compressed Air / Water
Maximum Operating Pressure 1.0 MPa
Maximum Vacuum Pressure -100Kpa
Operating Temperature Range 0 to 60 degree celsius
Material Nickel Plated Brass & PBT
