Watson Female Stud 4Mm To 1/4 Pneumatic Push-In Fitting (Ctcc-6-02) General
Watson Female Stud 4Mm To 1/4 Pneumatic Push-In Fitting (Ctcc-6-02) General

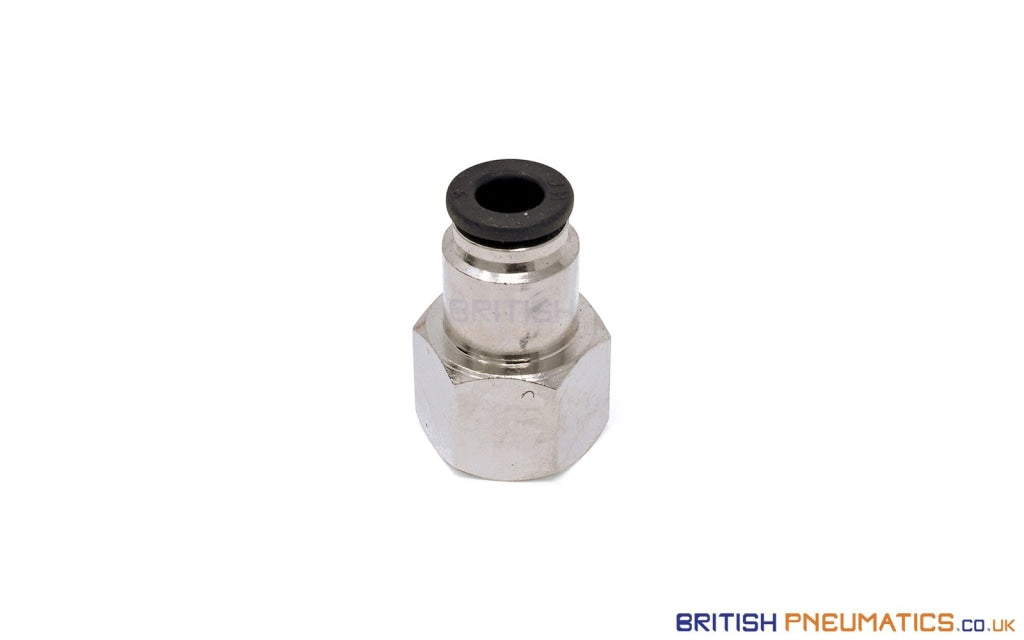

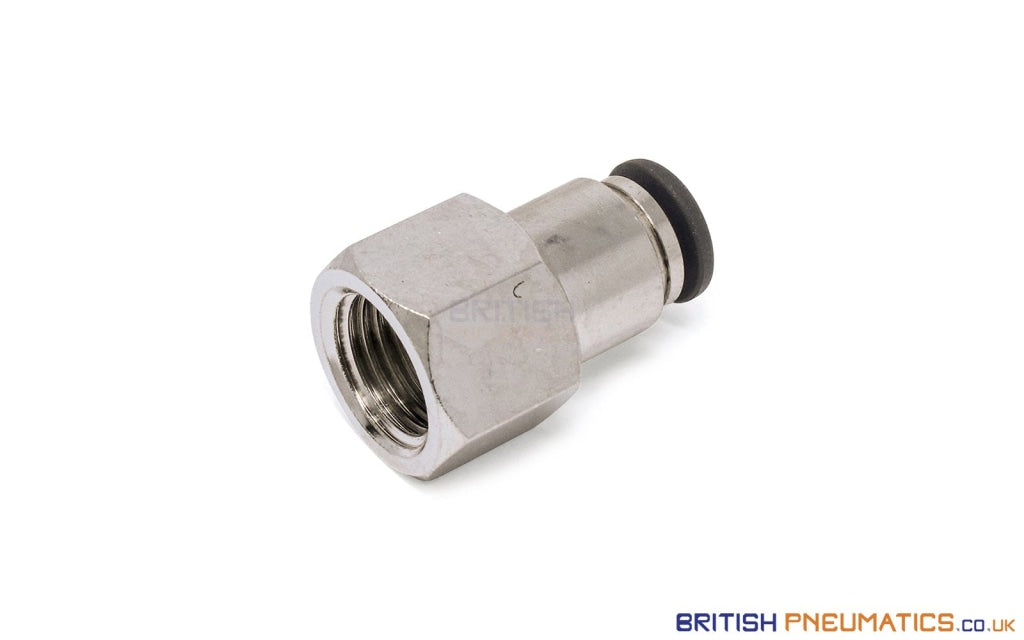

Watson Female Stud 4mm to 1/4" Pneumatic Push-In Fitting (CTCC-6-02)

Regular price
£2.20
Sale price
£2.20
Free shipping within the UK! Worldwide shipping also available.

This is Watson Industries Male Stud pneumatic fitting that has a 4mm Push-In Fitting on one end, and a 1/4" BSP female thread on the other end. This is a real value proposition due to its high quality to price ratio.

Female Studs (Straight Connector)

Male studs are often used to connect pneumatic devices (valves, cylinders) with pneumatic tubing, and Push-In fittings allow for easy disconnection. Male studs are sometimes also called 'Straight Connector'.

Push-In Fitting Usage

With Push-In fittings, simply place your tubing into the tube end of the fitting, and lock jaws will engage to. A gentle tug will ensure that your tubing is locked into place, rendering it suitable for high pressure usage in pneumatic systems.

To disconnect the tubing, push the release ring. This disengages the lock jaws, and the tubing is able to move freely.

Technical Specifications

Type of Connection Threaded to Metric Tube
Thread Size 1/4"
Tubing Size 4mm
Fluid Medium Compressed Air / Water
Maximum Operating Pressure 1.0 MPa
Maximum Vacuum Pressure -100Kpa
Operating Temperature Range 0 to 60 degree celsius
Material Nickel Plated Brass & PBT
