Watson Union Straight 4Mm Pneumatic Fitting (Ctu-4) General
Watson Union Straight 4Mm Pneumatic Fitting (Ctu-4) General

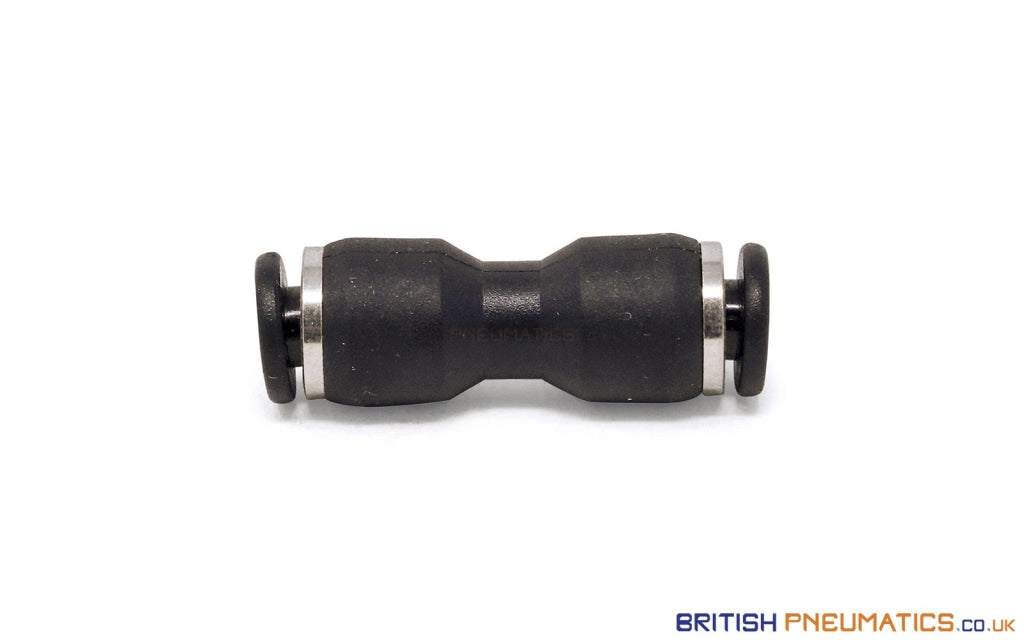

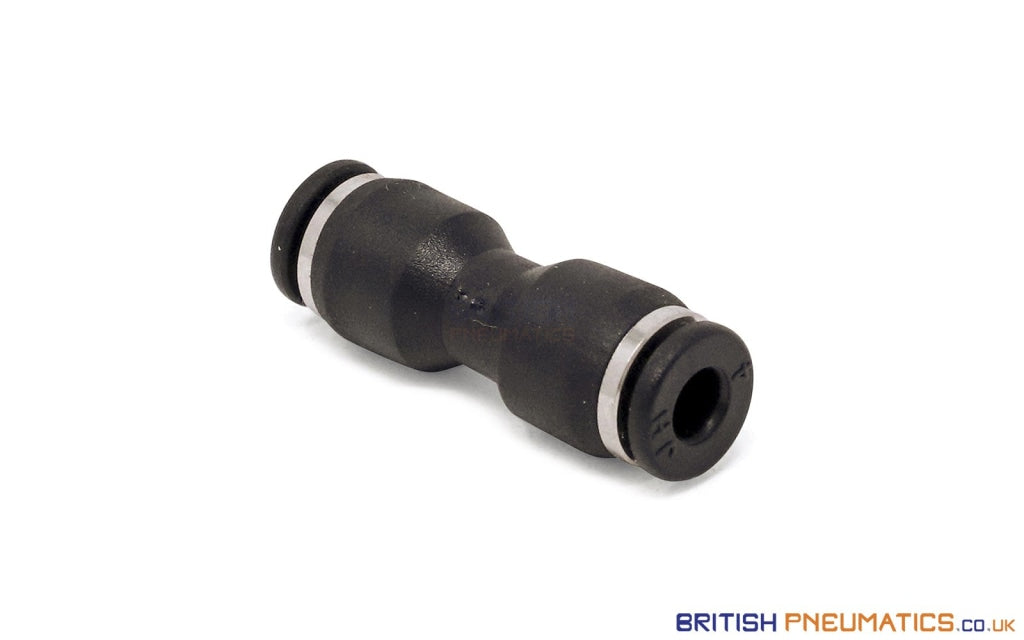

Watson Union Straight 4mm Pneumatic Fitting (CTU-4)

Regular price
£1.70
Sale price
£1.70
Free shipping within the UK! Worldwide shipping also available.

This is Watson Industries Union Straight pneumatic fitting that has 4mm Push-In ports on both sides.

This is a real value proposition due to its price to quality ratio. It is very popular in the United Kingdom.

Union Straight

Union straights are a type of pneumatic fitting that allow for tubing of the same size to be connected together.

Push-In Fitting Usage

With Push-In fittings, simply place your tubing into the tube end of the fitting, and lock jaws will engage to. A gentle tug will ensure that your tubing is locked into place, rendering it suitable for high pressure usage in pneumatic systems.

To disconnect the tubing, push the release ring. This disengages the lock jaws, and the tubing is able to move freely.

Technical Specifications

Type of Connection Metric Tube to Metric Tube
Tubing Size 4mm
Fluid Medium Compressed Air / Water
Maximum Operating Pressure 1.0 MPa
Maximum Vacuum Pressure -100Kpa
Operating Temperature Range 0 to 60 degree celsius
Material Nickel Plated Brass & PBT
Country of Manufacture Taiwan
