Watson Union Tee Pneumatic Fitting 4Mm (Cte-4) General

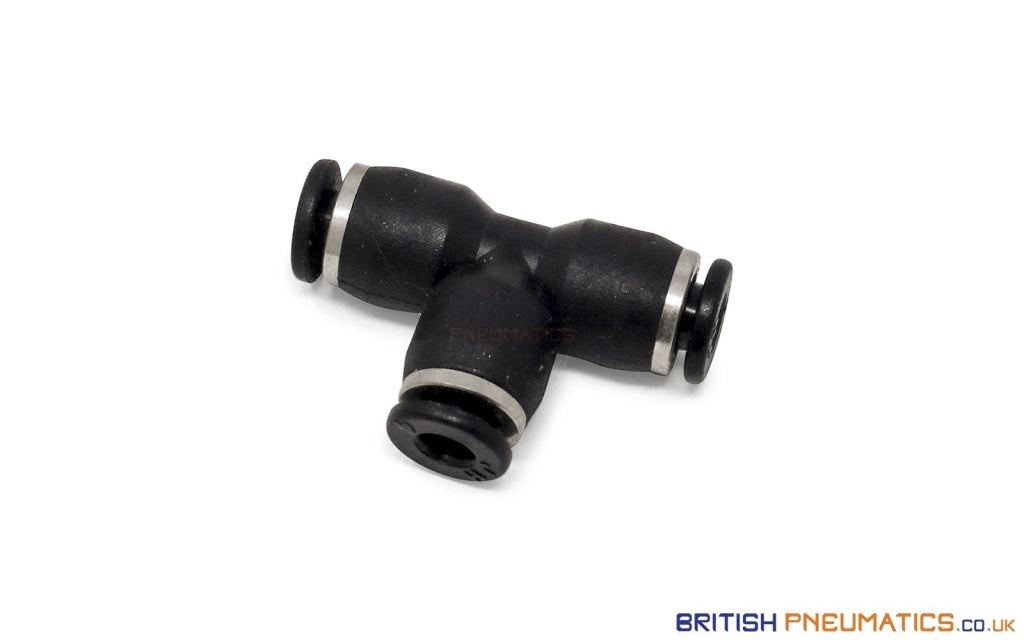

Watson Union Tee Pneumatic Fitting 4mm (CTE-4)

Regular price
£2.30
Sale price
£2.30
Free shipping within the UK! Worldwide shipping also available.

This is Watson Industries Union Tee pneumatic fitting that has 4mm on all three sides.

Union Tee

Union Tees have three sides with ports that are the same size for tubing. It can be used inline to allow for additional branching or spuring.

Push-In Fitting Usage

With Push-In fittings, simply place your tubing into the tube end of the fitting, and lock jaws will engage to. A gentle tug will ensure that your tubing is locked into place, rendering it suitable for high pressure usage in pneumatic systems.

To disconnect the tubing, push the release ring. This disengages the lock jaws, and the tubing is able to move freely.

Technical Specifications

Type of Connection Metric Tube to Metric Tube
Tubing Size 4mm
Fluid Medium Compressed Air / Water
Maximum Operating Pressure 1.0 MPa
Maximum Vacuum Pressure -100Kpa
Operating Temperature Range 0 to 60 degree celsius
Material Nickel Plated Brass & PBT
Country of Manufacture Taiwan
