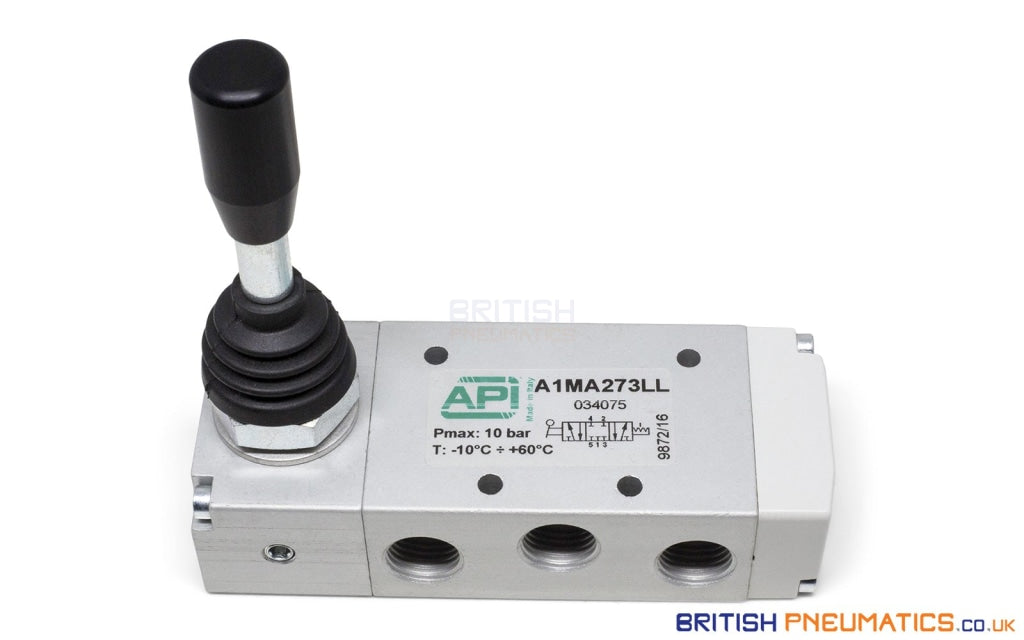

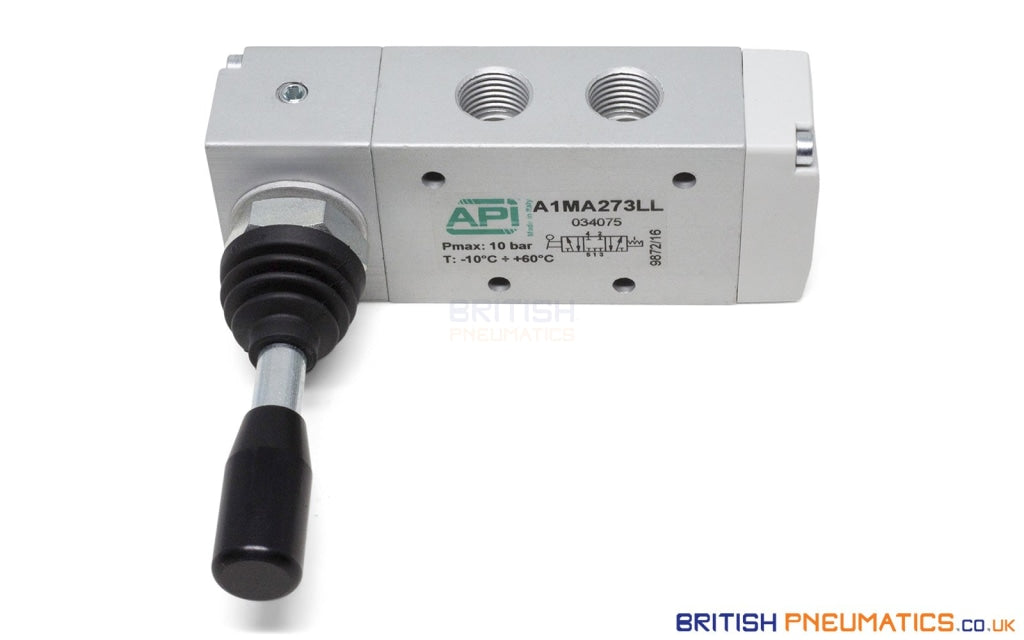

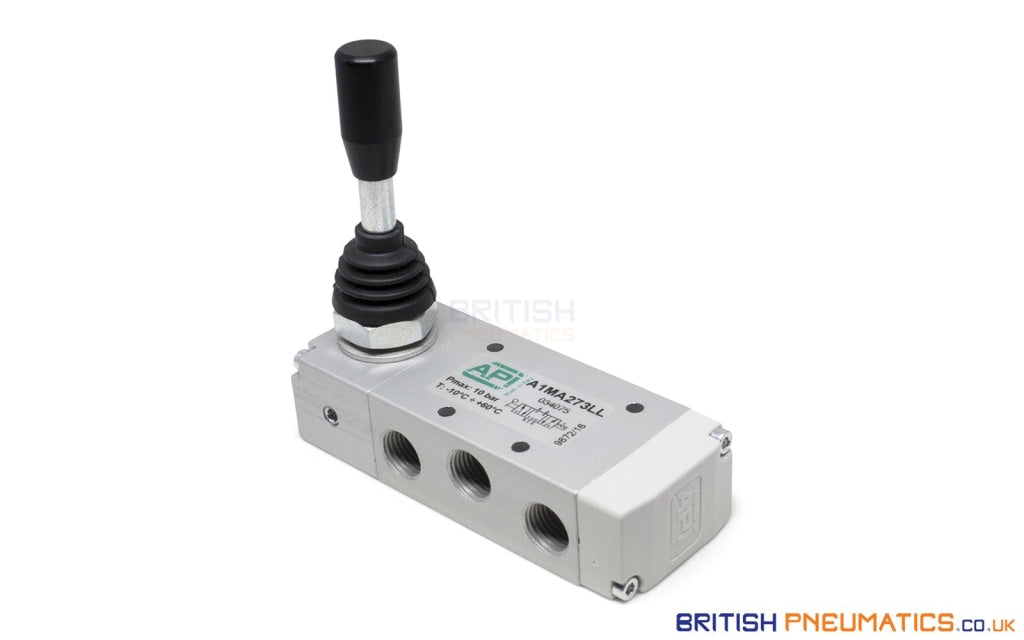

API A1MA273LL Manual Valve 1/4" 5/3, Closed Centre, 3 Positions

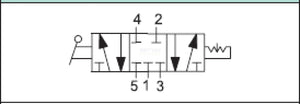

MPN 034075, 1/4" BSP, 5/3 side lever manual valve, closed centres, 3 positions
Technical Specifications
| Fluid | Compressed filtered air with or without lubrication. Lubrication, if be used, must be continued. |
| Pressure range | 0 ÷ 10 bar |
| Temperature range | -10℃ ÷ +80℃ |
| Orifice | 8 mm |
| Flow | 1100 Nl/min. at 6bar with ΔP 1bar |
| Mounting | In any position |
| Materials |
Body: Anodised aluminium |
