Metal Work MAV 23 PPS NC Manual Push Valve (7010001200) 1/8", 3/2 - British Pneumatics (Online Wholesale)

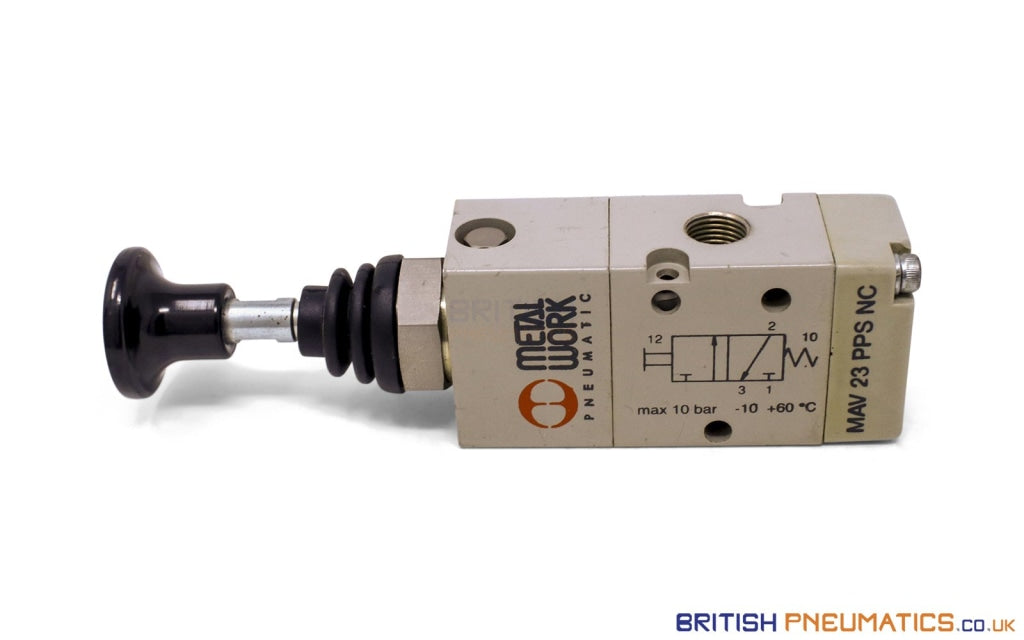

Metal Work MAV 23 PPS NC Manual Push Valve (7010001200) 1/8", 3/2

Regular price
£57.90
Sale price
£57.90
Free shipping within the UK! Worldwide shipping also available.

'Quick Specs': Metal Work MPN: 7010001200. 1/8" 3/2 Push Button Valve. Normally Closed. Aluminium chasis. Spring return. Made in Italy.

This MAV 23 PPS NC Push Button Valve from Metal Work has 3 ports, 1/8" each, and 2 positions. It has a spring return to the default position.

Technical Specifications:

Operating Pressure Range:

Vacuum to 10 bar

Operating Temperature Range -10 to +60 Celsius
Nominal Diameter 5mm
Conductance (Nl/min - bar) 121.43
Flow Rate at 6 bar ΔP 0.5 bar (Nl/min) 400
Flow Rate at 6 bar ΔP 1 bar (Nl/min) 550
