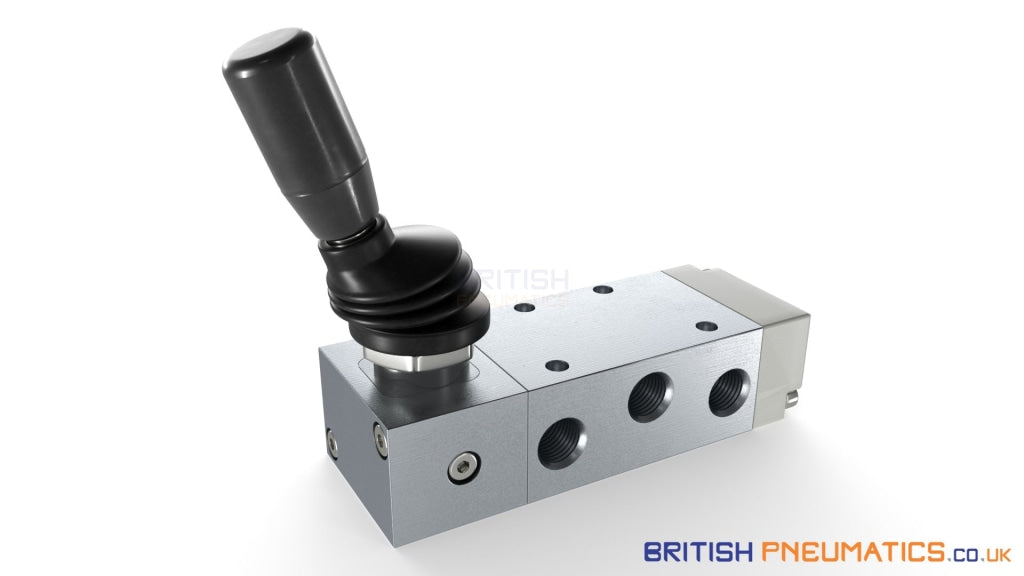

Metal Work MAV 35 VLB OO Manual Lever Valve (7020001700) 1/4", 5/2
'Quick Specs': Metal Work MPN: 7020001700. 1/4" 5/2 pneumatic lever valve. Bistable. Made in Italy.
Technical Specifications:
| Operation Mode |
Lever |
| Operating Pressure Range |
Vacuum to 10 bar |
| Operating Temperature Range | -10 to +60 Celsius |
| Nominal Diameter | 5mm |
| Conductance (Nl/min - bar) | 121.43 |
| Flow Rate at 6 bar ΔP 0.5 bar (Nl/min) | 750 |
| Flow Rate at 6 bar ΔP 1 bar (Nl/min) | 1100 |
