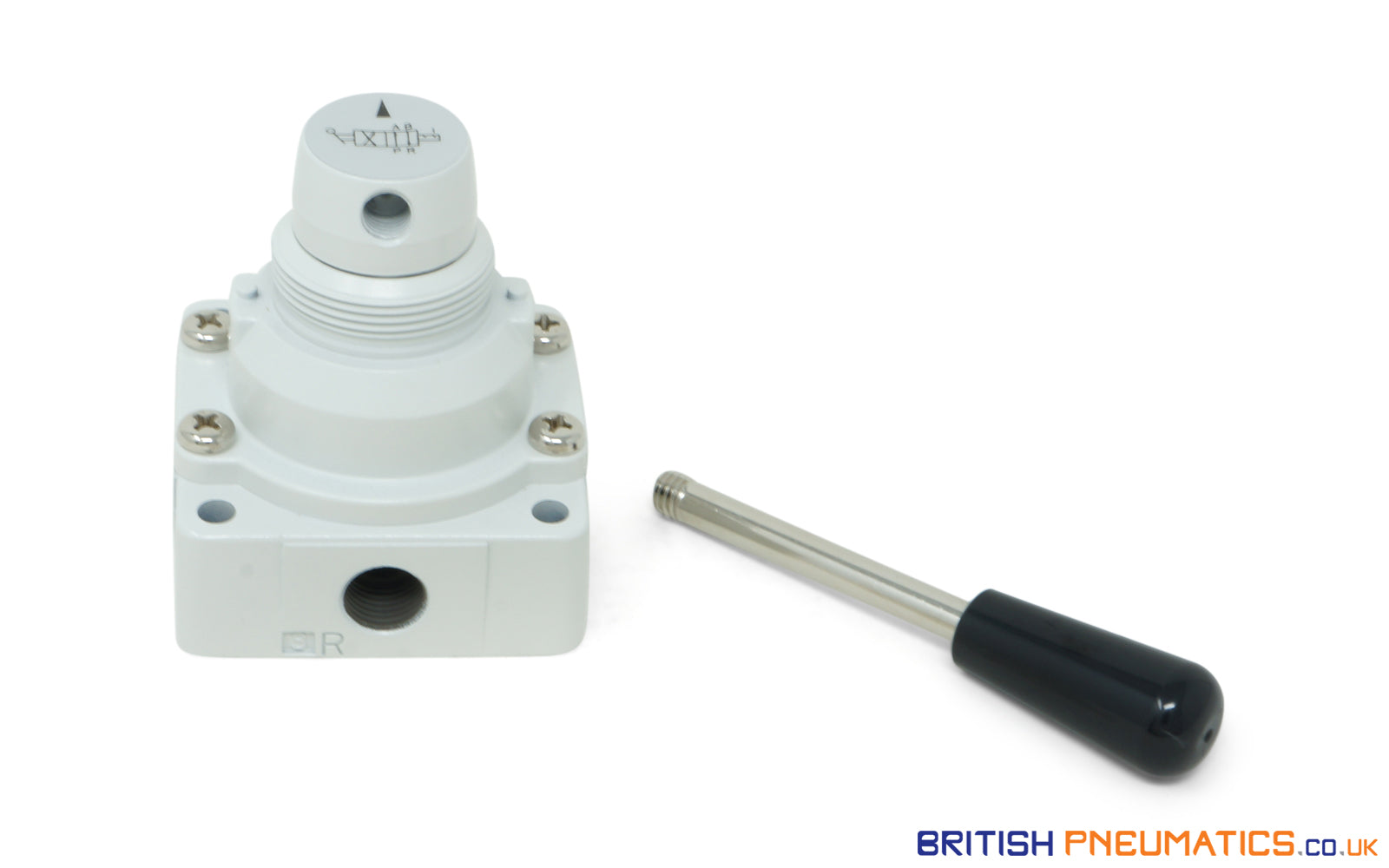

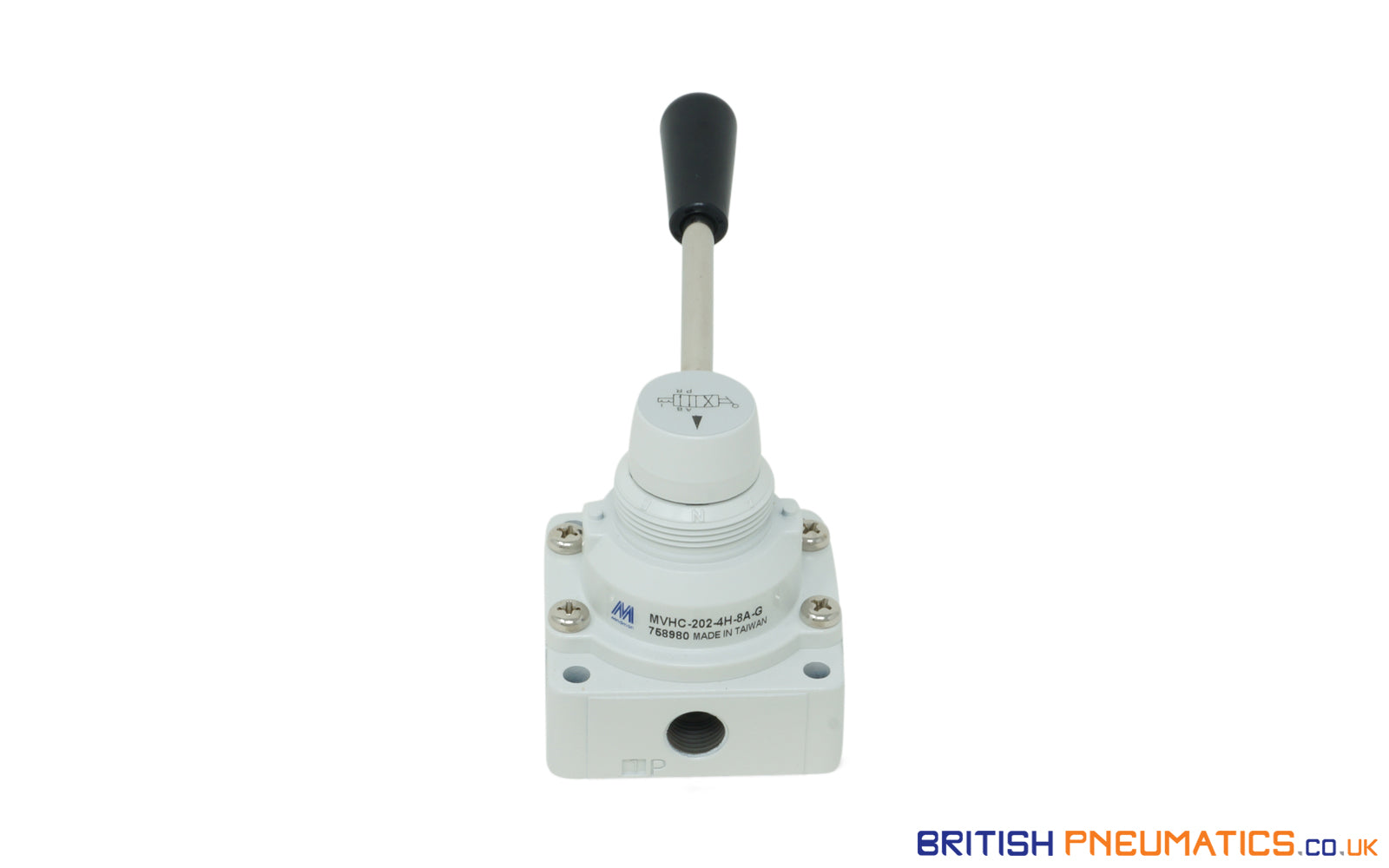

Mindman MVHC-202-4H-8A Hand Lever Valve 1/4"
MINDMAN ROTARY HAND LEVER Valve. MVHC-202-4H-8A. 1/4".
This lever valve has 3 positions.
Technical Specifications
| Model | MVHC-202-4H-8A |
| No.of port: | 4 |
| Bore no.: | 8A |
| Port size | Rc 1/4 |
| Medium | Air |
| Operating pressure range | 0.05~1 MPa |
| Ambient temperature | -5 ~ + 60℃ (No freezing) |
| Effective orifice | 7 mm² |
