Mindman MVHC-300-4H-10A Hand Lever Valve 3/8"

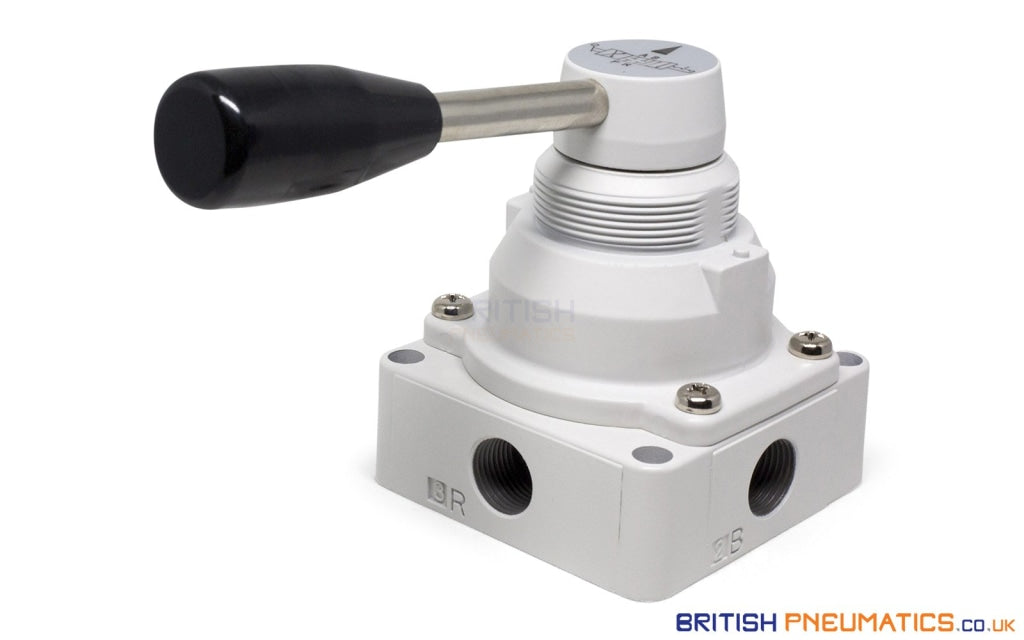

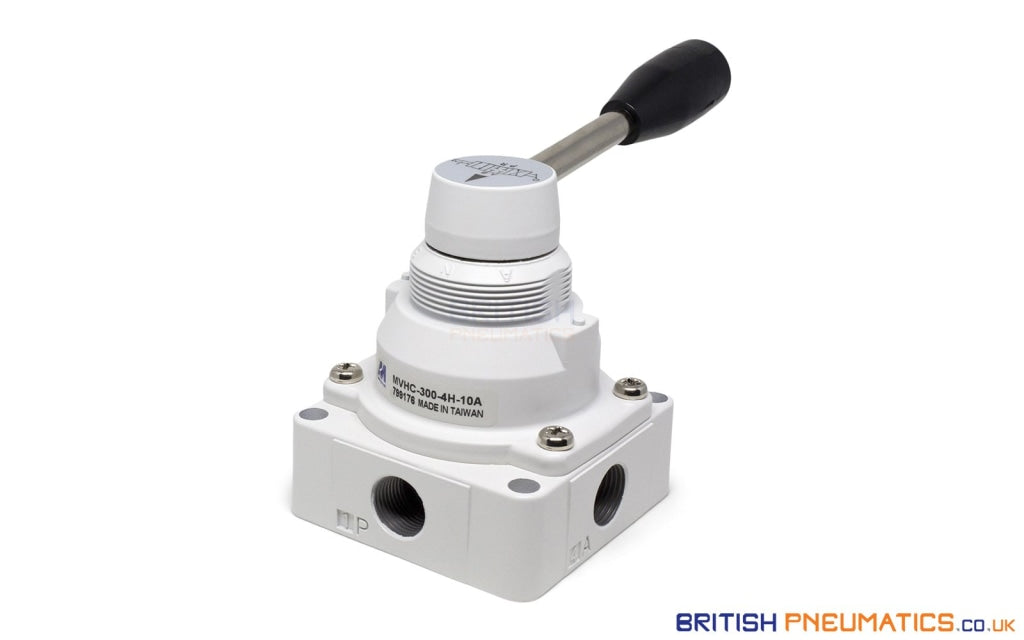

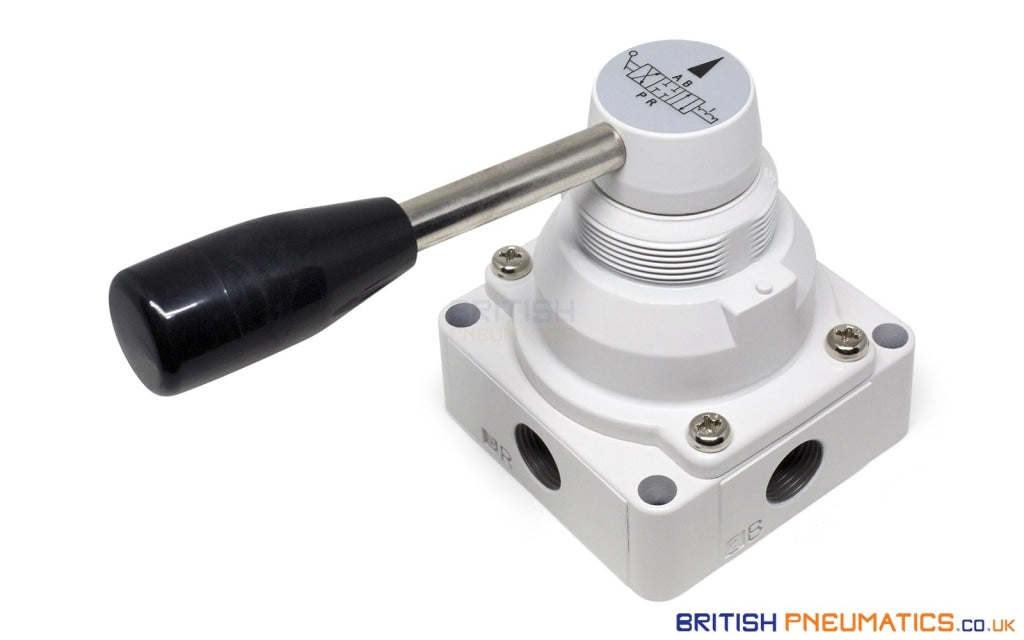

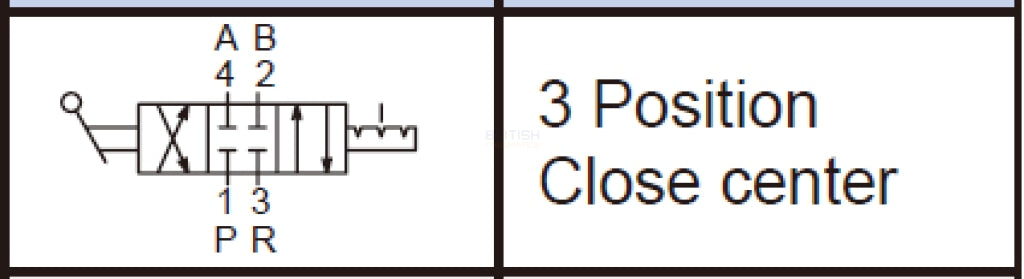

This hand lever valve from Mindman allows for rotary action with a nice, quality clicking sound. It has 3/8" port connections with 4 ports in total. 3 Positions, closed centre. This is one of British Pneumatics' best sellers.
MVHC series
ROTARY HAND LEVER Valve
MVHC-300-4H-10A
Technical Specifications
| Model | MVHC-300-4H-10A |
| No.of port: | 4 |
| Bore no.: | 10A |
| Port size | Rc 3/8 |
| Medium | Air |
| Operating pressure range | 0.05~1 MPa |
| Ambient temperature | -5 ~ + 60℃ (No freezing) |
| Effective orifice | 29 mm² |
