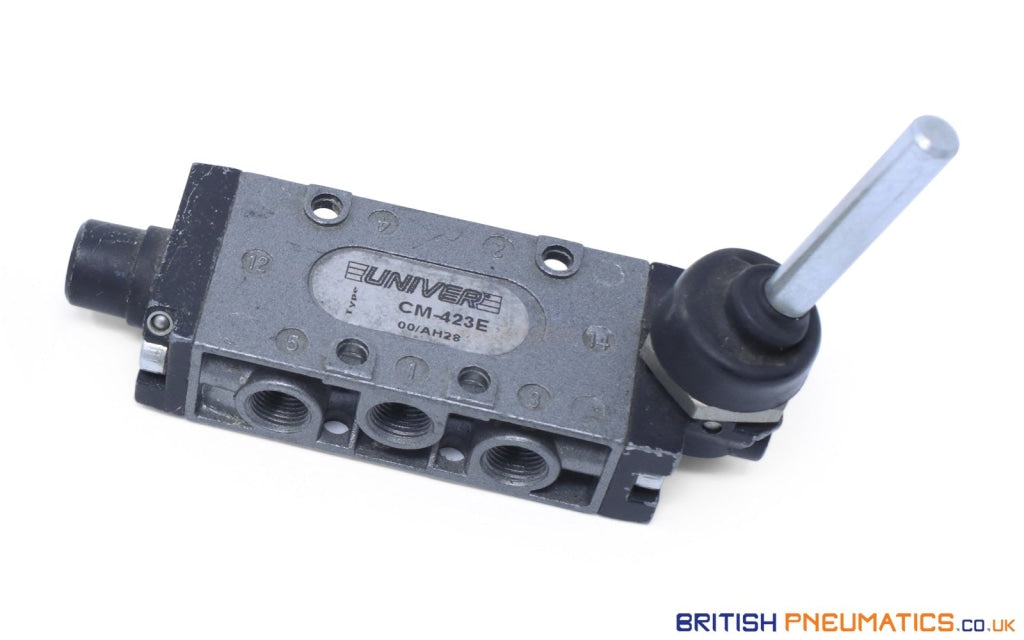

Univer CM-423E Lever Mechanical Spool Valve (90 deg, 3 positions, G1/8)
UNIVER CM-423E Spool Valve. 90 degree lever with three positions. G1/8".
This lever valve from Univer has G1/8 ports with manual operation by way of a 90 degree lever. The valve has three positions. THE CM-423E is a widely used valve in packaging, logistics, manufacuting and much else.
It has a zinc alloy body with machined alumnium spool. This valve is made in Italy.
90° Lever -3 positions
CM-423E, G1/8
Technical Specifications
Ambient temperature | -10÷45℃ |
Fluid | 50 μm filtered air, with or without lubrication |
Commutation system | Spool |
Valve Body | die-cast zamak (G 1/8), aluminium (G 1/4) |
Seals | Nitrile rubber |
Spool | Aluminium |
Electropilot / Coil | AA Series / U1-U3 |
Power Consumption | 3,5 W (DC)-5 VA (AC) |
Connector | AM5110 |
Voltage | 12VDC-24VDC-24VAC-110VAC-230VAC |
Manual Override | Two-position screw |
