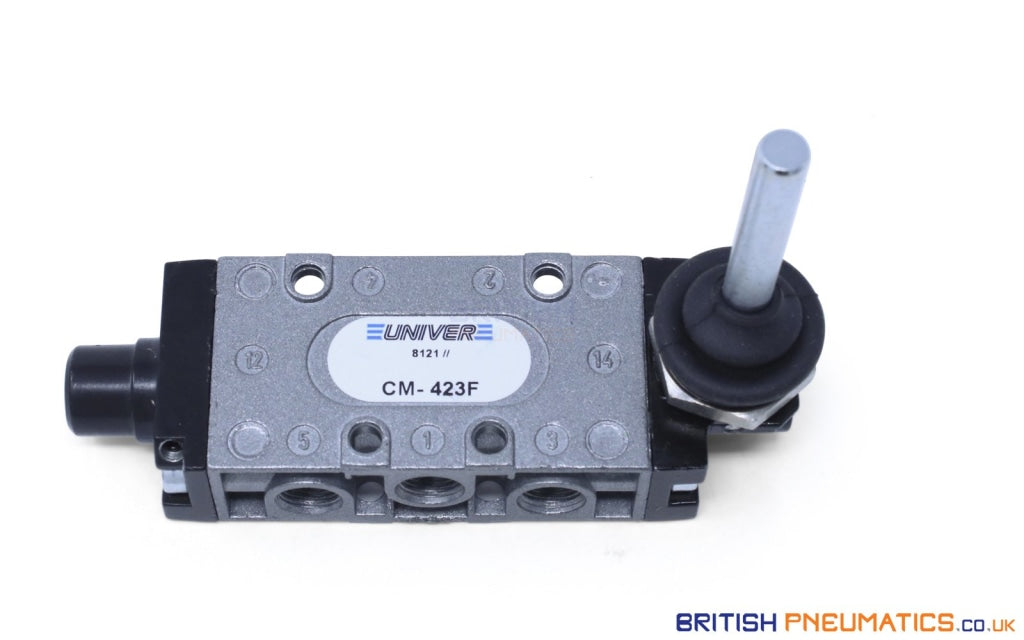

Univer CM-423F Lever Mechanical Spool Valve (90 degrees, 1/8", 3 positons)
UNIVER CM-423F Spool Valve. 90 degree lever with three positions. G1/8".
This lever valve from Univer has G1/8 ports with manual operation by way of a 90 degree lever. The valve has three positions. The CM-423F is ubqituious valve in various industries, including in packaging, manufacturing, and shipping.
It has a zamak body with highly-refined machined alumnium spool.
90° Lever -3 positions
CM-423E, G1/8
Made in Italy.
Technical Specifications
Ambient temperature | -10÷45℃ |
Fluid | 50 μm filtered air, with or without lubrication |
Commutation system | Spool |
Valve Body | die-cast zamak (G 1/8), aluminium (G 1/4) |
Seals | Nitrile rubber |
Spool | Aluminium |
Electropilot / Coil | AA Series / U1-U3 |
Power Consumption | 3,5 W (DC)-5 VA (AC) |
Connector | AM5110 |
Voltage | 12VDC-24VDC-24VAC-110VAC-230VAC |
Manual Override | Two-position screw |
