API A1P232 Pneumatic Valve 1/4" 3/2 (Pneumatically Operated) - British Pneumatics
API A1P232 Pneumatic Valve 1/4" 3/2 (Pneumatically Operated) - British Pneumatics
API A1P232 Pneumatic Valve 1/4" 3/2 (Pneumatically Operated) - British Pneumatics

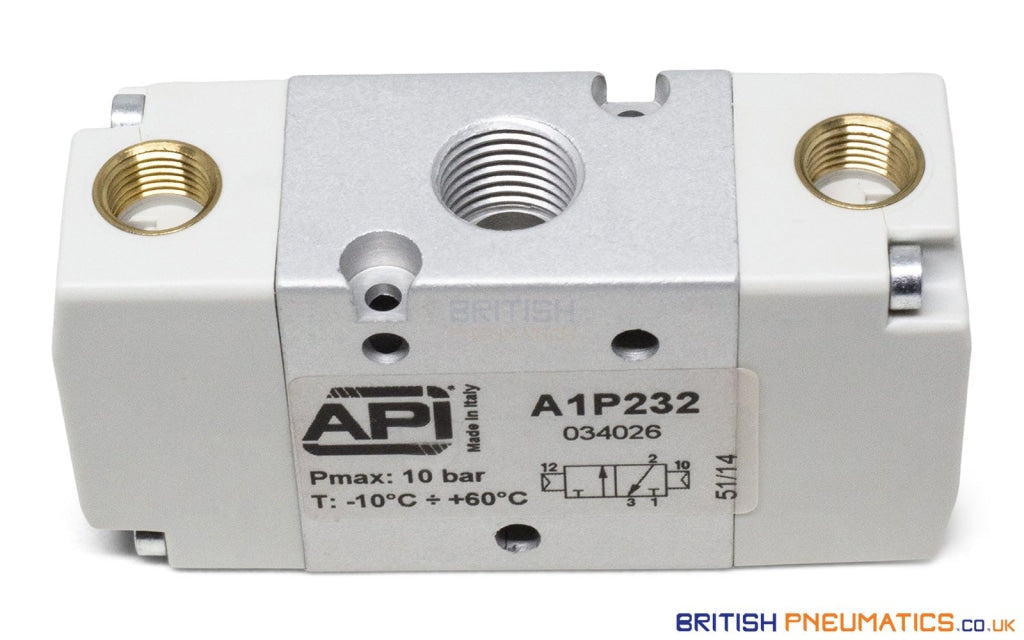

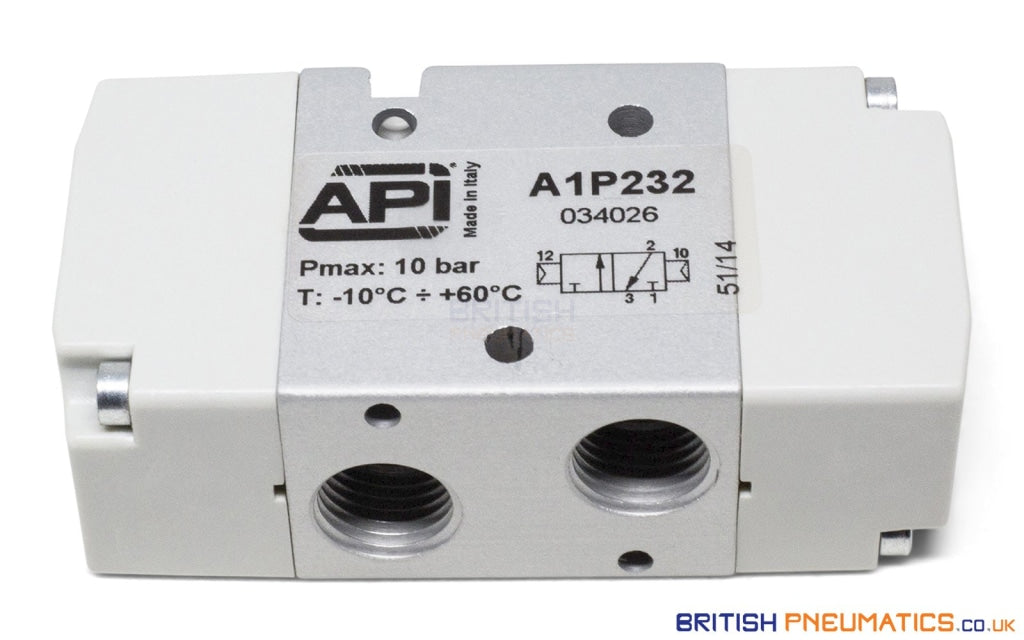

API A1P232 Pneumatic Valve 1/4" 3/2 (Pneumatically Operated)

Regular price
£50.80
Sale price
£50.80
Free shipping within the UK! Worldwide shipping also available.

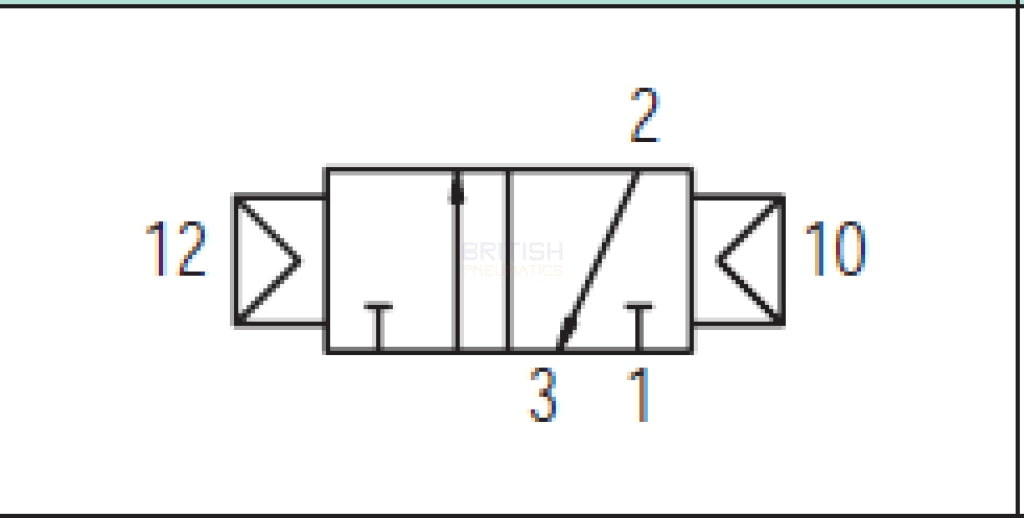

MPN 034026,  1/4" BSP, 3/2 pilot/pilot pneumatic valve

Technical Specifications

Fluid Compressed filtered air with or without lubrication. Lubrication, if be used, must be continued.
Pressure range Spring return: 1,5 ÷ 10 bar
Bistable:  1 ÷ 10 bar
Temperature range -10℃ ÷ +60℃
Orifice 8 mm
Flow 1100 Nl/min. at 6bar with ΔP 1bar
Minimum piloting pressure 1,5 bar
Manual override Bistable
Materials

Body: Anodised aluminium
Cover:  Delrin 500
Spool: Hard aluminium anodized
Distancers: Fortron 1140 L4
Seals: Hydrogenated Nitrile Butadiene Rubber (HNBR)
