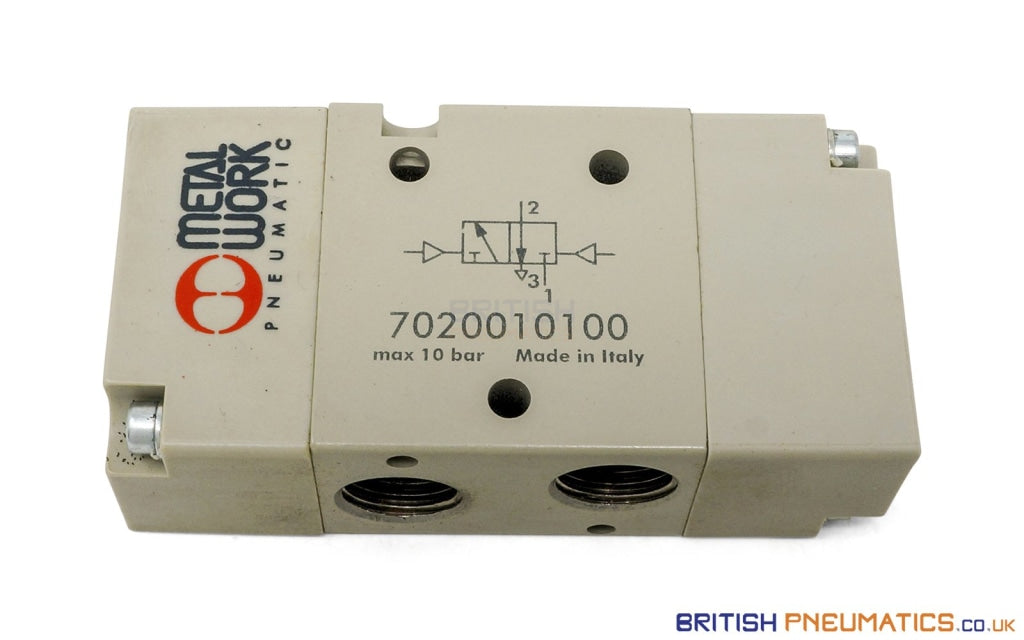

Metal Work PNV 33 PNB OO Pneumatic Pilot Valve (7020010100) 1/4" 3/2
'Quick Specs': Metal Work MPN: 7020010100. 1/4". 3/2 Pneumatic Pilot Valve. Bistable. Made in Italy. Aluminium chasis.
Technical Specifications
| Operation Mode | Pneumatic Pilot |
| Port Size and Thread | G 1/4" (BSPP) |
| Operating Pressure | Vacuum to 10 bar |
| Minimum Pilot Pressure |
Monotable: 2.5 bar Bistable: 1 Bar |
| Nominal Diameter | 7.5mm |
| Flow Rate at 6 bar ΔP 0.5 bar (Nl/min) | 750 |
| Flow Rate at 6 bar ΔP 1 bar (Nl/min) | 1100 |
