Mindman MVQE-300-10A "Quick Exhaust Valve 3/8" - British Pneumatics

Mindman MVQE-300-10A "Quick Exhaust Valve 3/8"

Regular price
£16.70
Sale price
£16.70

2-3 days lead time

Free shipping within the UK! Worldwide shipping also available.

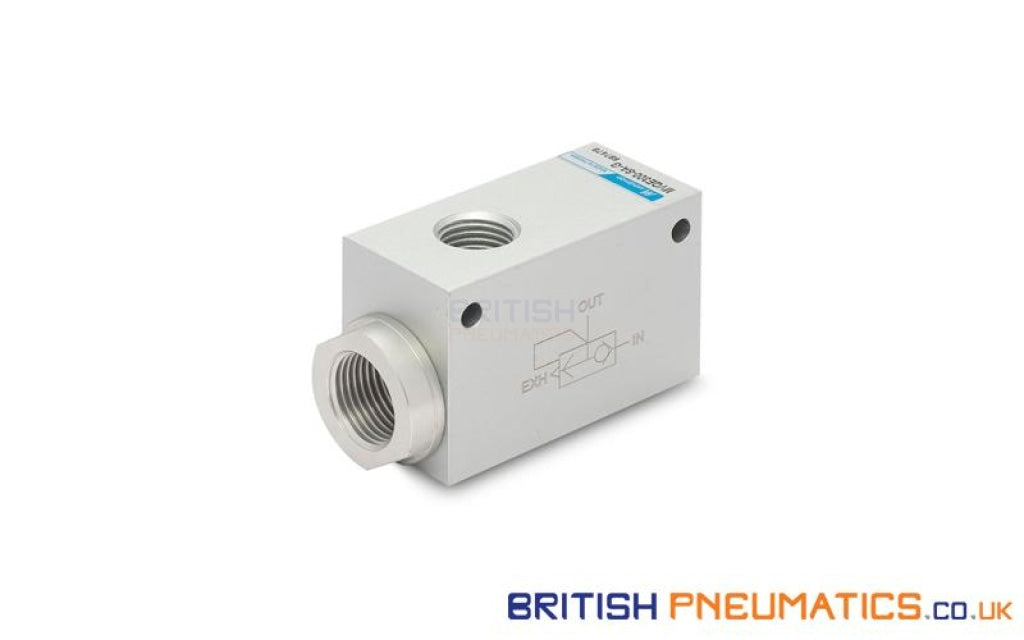

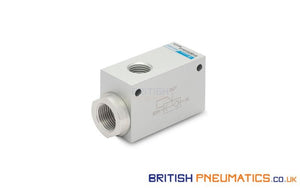

MINDMAN MVQE-300-10A Rc3/8 Quick Exhaust Valve
This unit makes it possible to achieve increased pistion speeds on the exhaust stroke with single acting and double acting cylinders.

MVQE-300-10A Rc3/8

Technical Specifications

Model MVQE
Medium Air
Operating pressure range 0.1~1 MPa
Proof pressure 1.5 MPa
Ambient temperature -5 ~ + 60℃ (No freezing)



Model Port size Effective orifice (mm²)
 IN→OUT
Effective orifice (mm²)
 OUT→EXH
MVQE-100-6A  Rc1/8 9 19
MVQE-300-8A Rc1/4 24 31
MVQE-300-10A Rc3/8 25 33
MVQE-301-10A Rc3/8 60 70
MVQE-301-15A Rc1/2 110 110
MVQE-400-15A Rc1/2 46 46
MVQE-501-20A Rc3/4 135 180
MVQE-501-25A Rc1 176 187
