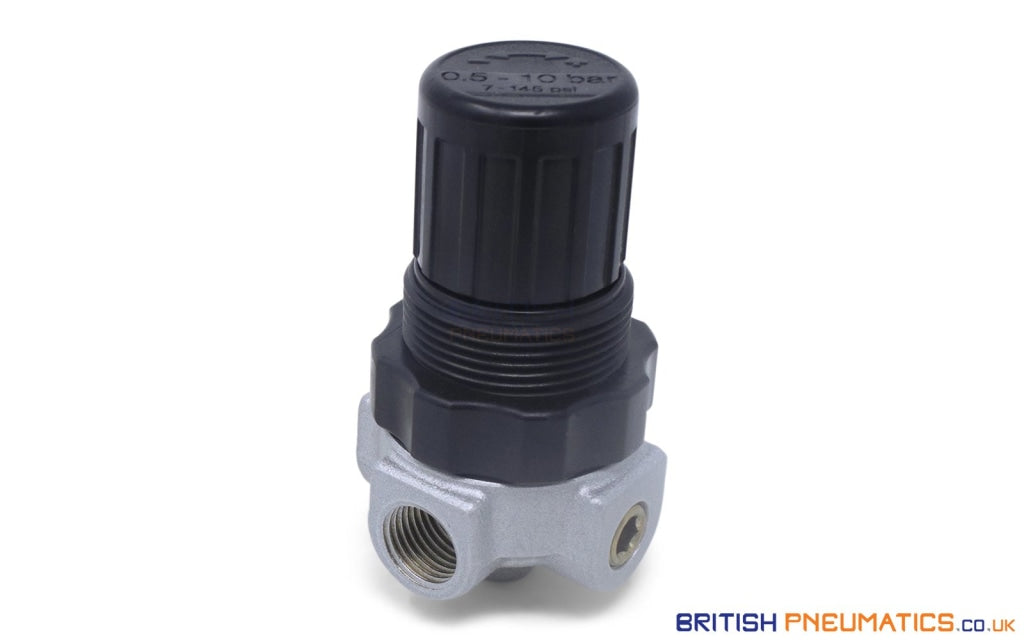

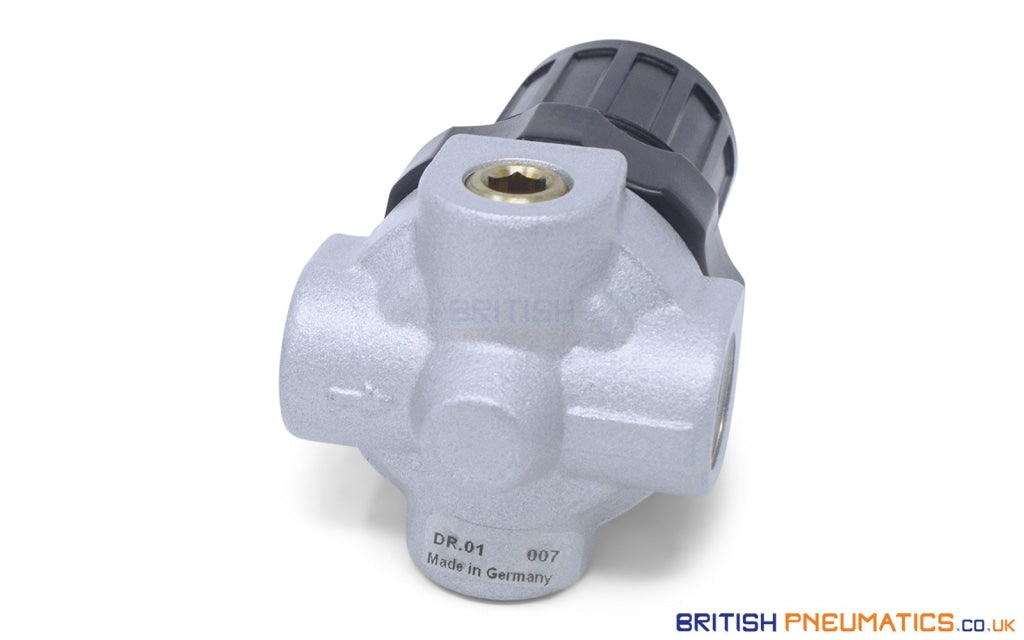

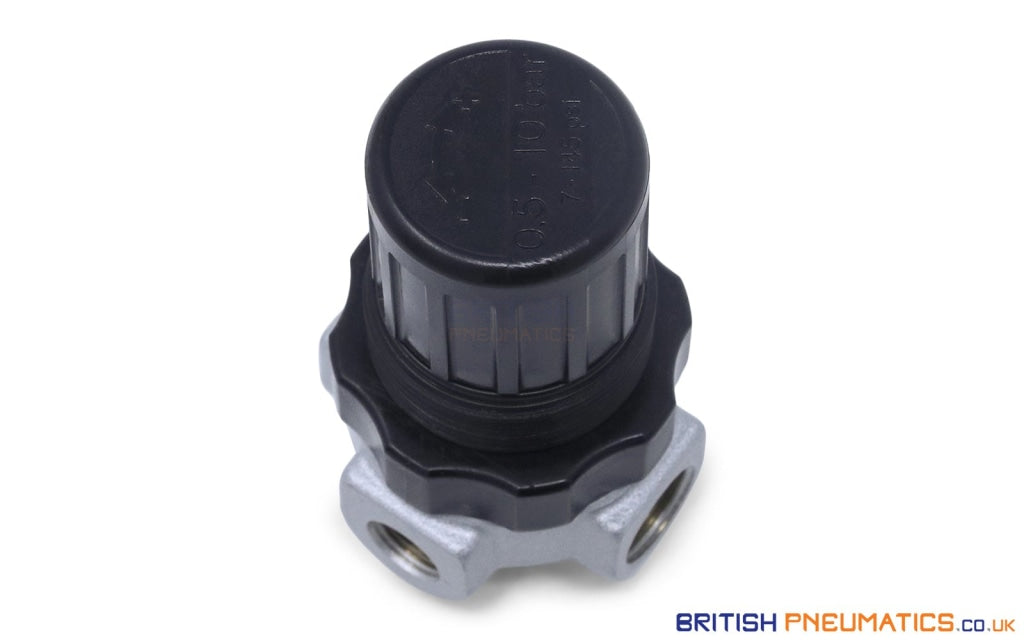

Knocks DR.01 Pneumatic PRessure Regulator, (0.5-10 bar) 2
KNOCKS DR.01 Pressure Regulator with diaphragm and relieving feature. This is an airline regulator with 1/4" port connections.
Made in Germany
MPN 9.1501.00.000
Technical Specifications
| Port size | G 1/4 |
| Description | Air line regulator with diaphragm and relieving feature |
| Mounting | Arbitrary |
| Supply pressure | Pe max.25 bar |
| Reduced pressure | Pa 0,5-10 bar standard.0,1-3 bar, 0,2-6 bar, 0,5-16 bar |
| Media and ambient temperature | Max. 80℃ (oth. temperature ranges available upon request) |
| Fixing | Panel mounting |
