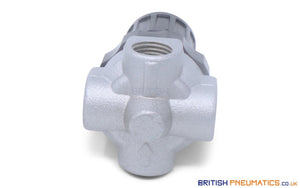

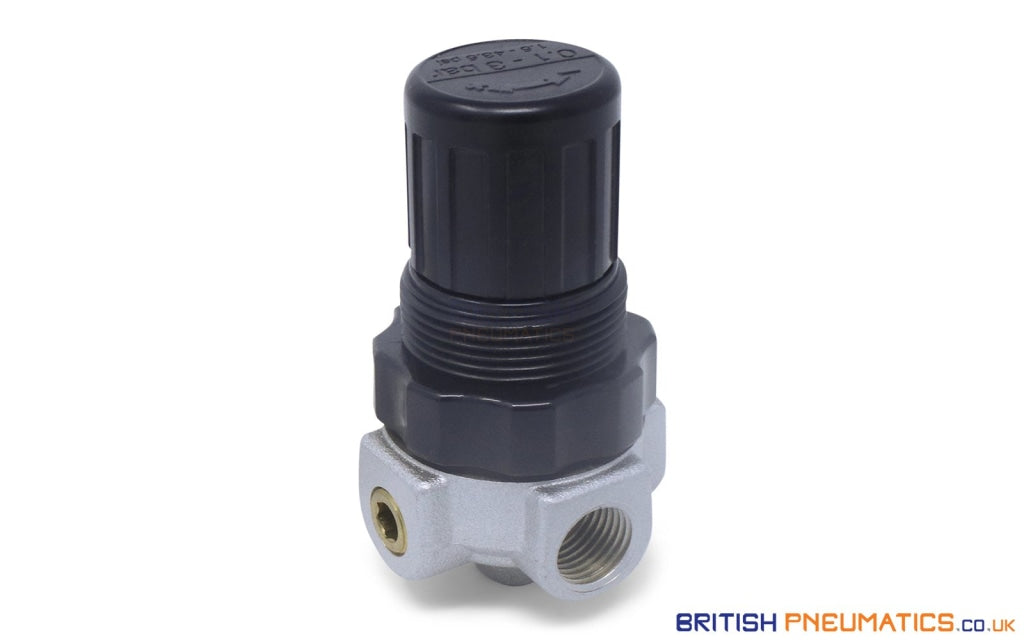

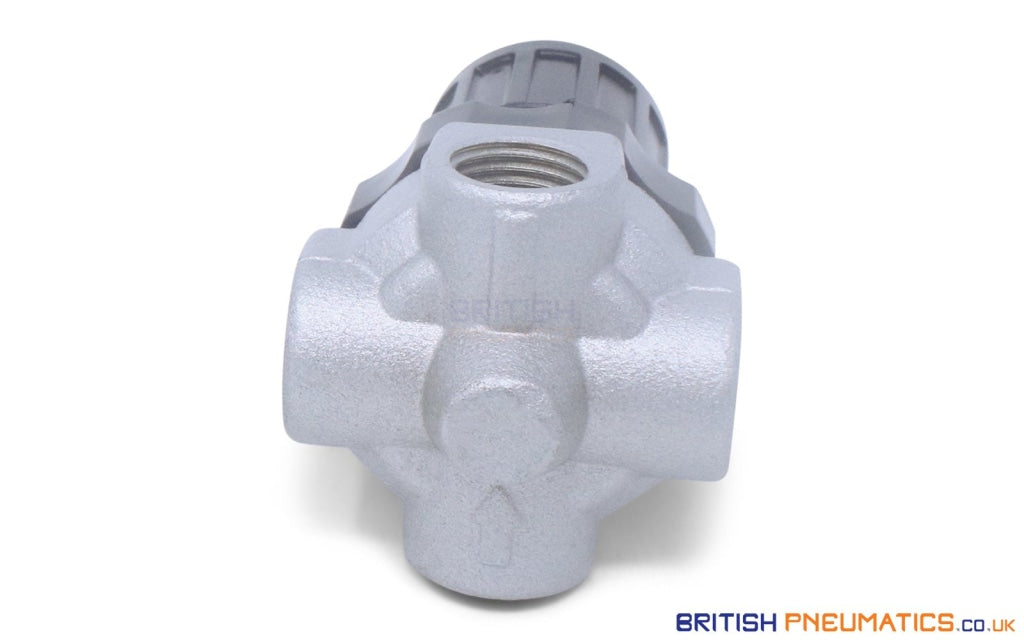

Knocks DR.01 Pneumatic Pressure Regulator, 1/4" (0.1-3 BAR)
KNOCKS DR.01 Pressure Regulator. Metallic chasis, finely tuned regulator with diaphragm and relieiving feature.
Regulates pressure from 0.1 to 3 BAR.
Made in Germany
MPN 9.1501.00.010 (0.1-3 bar)
Technical Specifications
| Port size | G 1/4 |
| Description | Air line regulator with diaphragm and relieving feature |
| Mounting | Arbitrary |
| Supply pressure | Pe max.25 bar |
| Reduced pressure | Pa 0,5-10 bar standard.0,1-3 bar, 0,2-6 bar, 0,5-16 bar |
| Media and ambient temperature | Max. 80℃ (oth. temperature ranges available upon request) |
| Fixing | Panel mounting |
