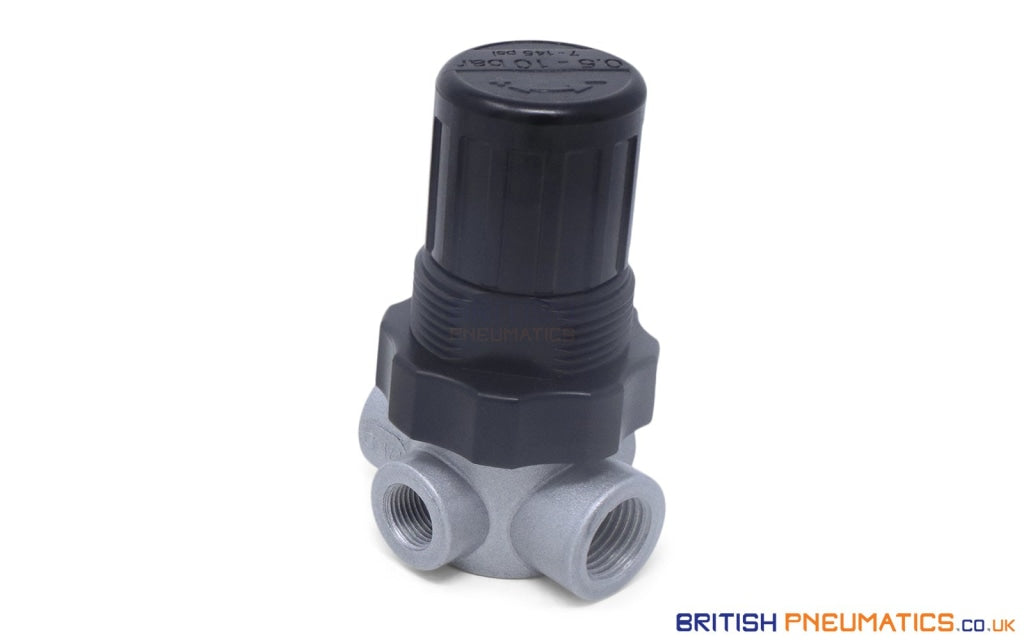

Knocks DR.022-01 Pneumatic Pressure Regulator , 1/4", 0.4~10BAR
KNOCKS DR.022 Pressure Regulator. Metallic chasis with 1/4" port connections. This is an aiirline regulator.

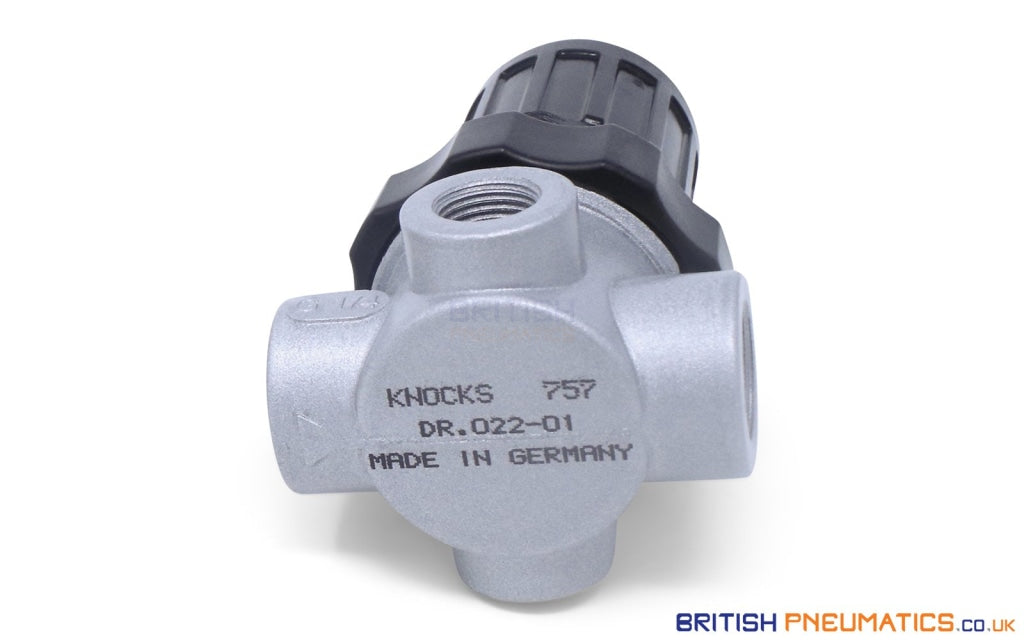

Made in Germany
MPN 9.1501.00.750/V, G 1/4, 0.5-10bar
Technical Specifications
| Port size | G 1/4 |
| Description | Air line regulator with diaphragm and relieving feature |
| Mounting | Arbitrary |
| Supply pressure | Pe max.25 bar |
| Reduced pressure | Pa 0,5-7 bar standard.0,1-3 bar, 0,2-6 bar, 0,5-10 bar |
| Media and ambient temperature | Max. 60℃ (oth. temperature ranges available upon request) |
| Fixing | Panel mounting |
