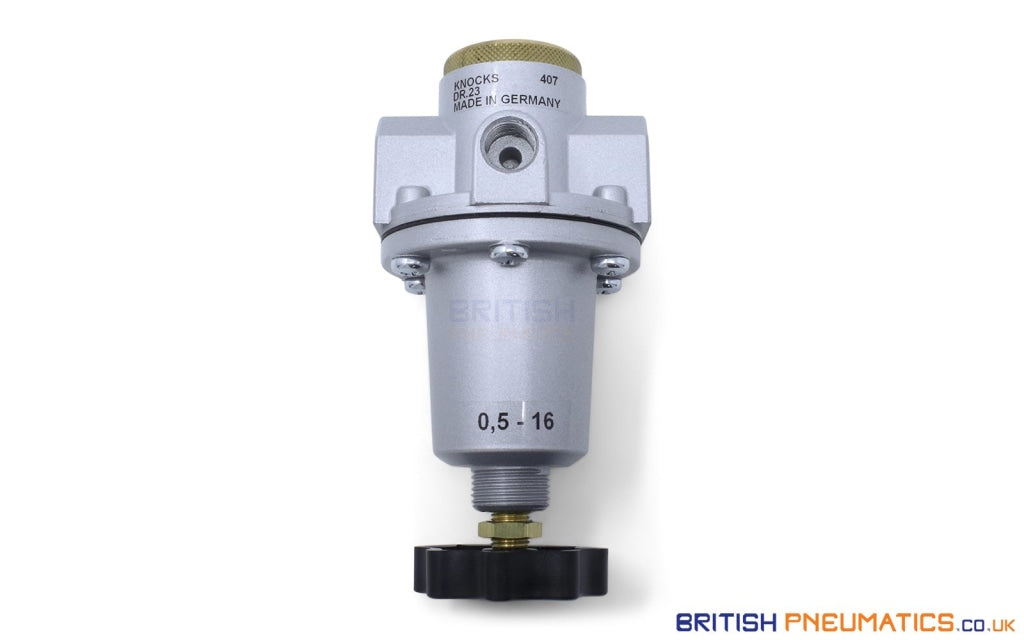

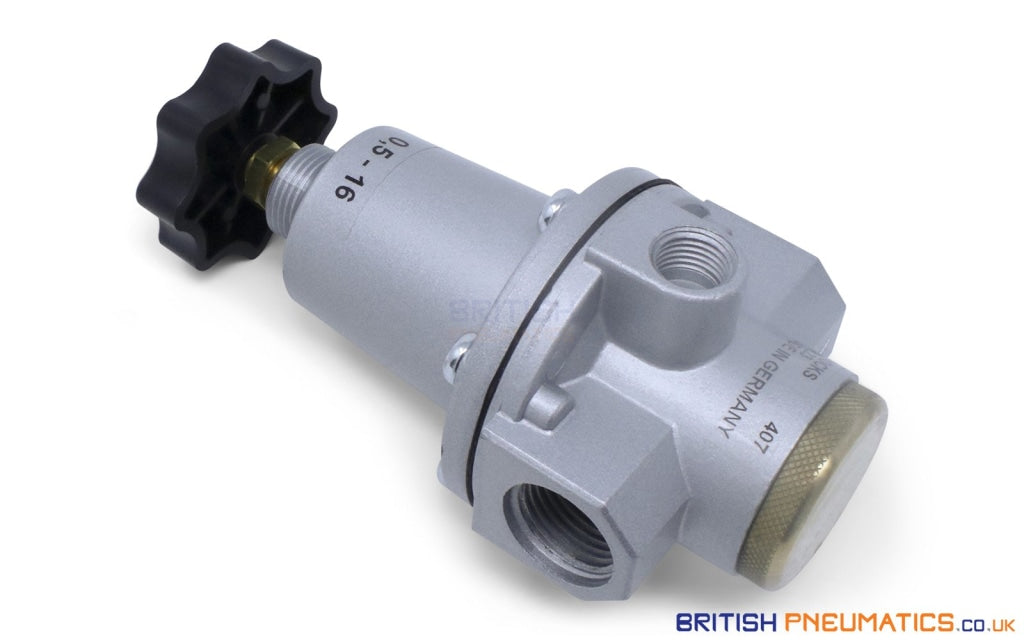

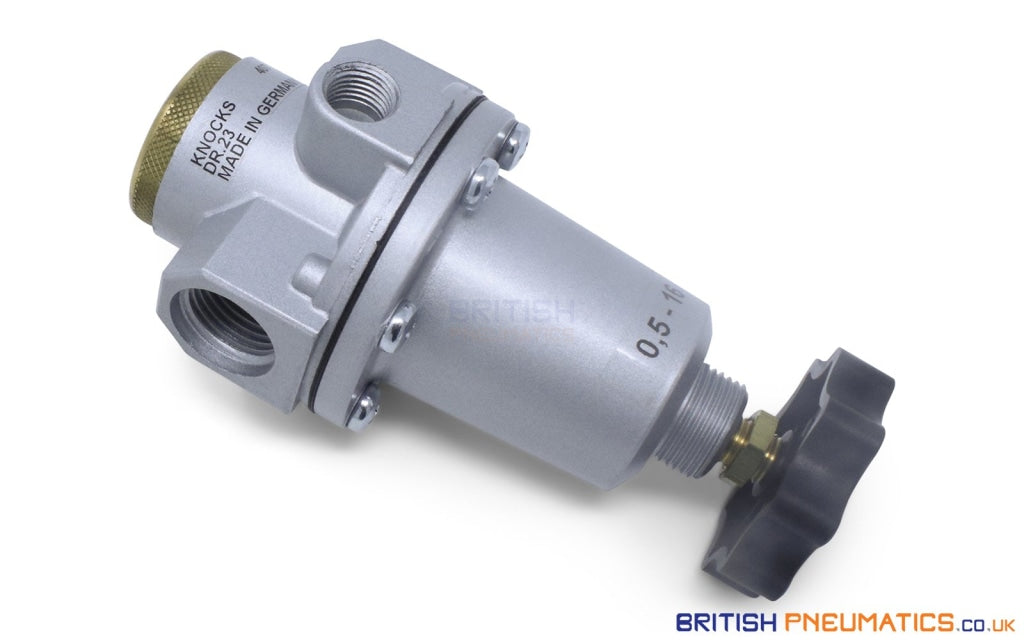

Knocks DR.23 Pneumatic Pressure Regulator, 1/2" (0.5-16 bar)
KNOCKS DR.23 Pressure Regulator with compressed air line use. This regulator has 1/2" port connections and modulates from 0.5-16 bar. It is made out of a precision metallic chasis.
Made in Germany
MPN 9.1523.00.030.0V, G 1/2, 0.5-16bar
Technical Specifications
| Port size | G 1/2 |
| Description | Air line regulator with diaphragm and relieving feature |
| Mounting | Arbitrary |
| Supply pressure | Pe max.25 bar |
| Reduced pressure | Pa 0,5-10 bar standard.0,5-3 bar, 0,5-6 bar, 0,5-16 bar |
| Media and ambient temperature | Max. 80℃ (oth. temperature ranges available upon request) |
| Fixing | Panel mounting, Bracket |
