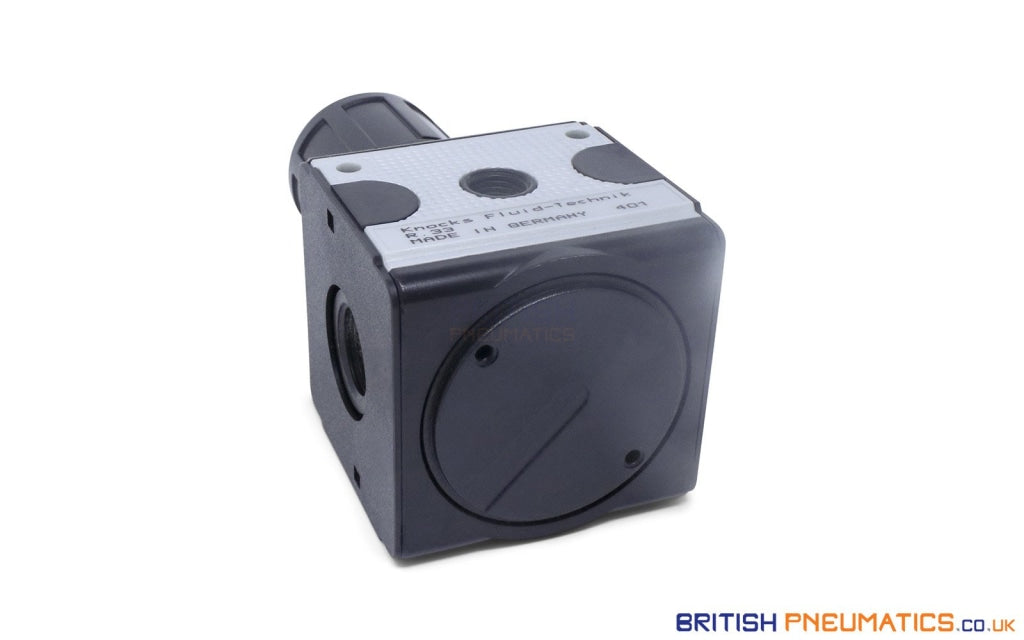

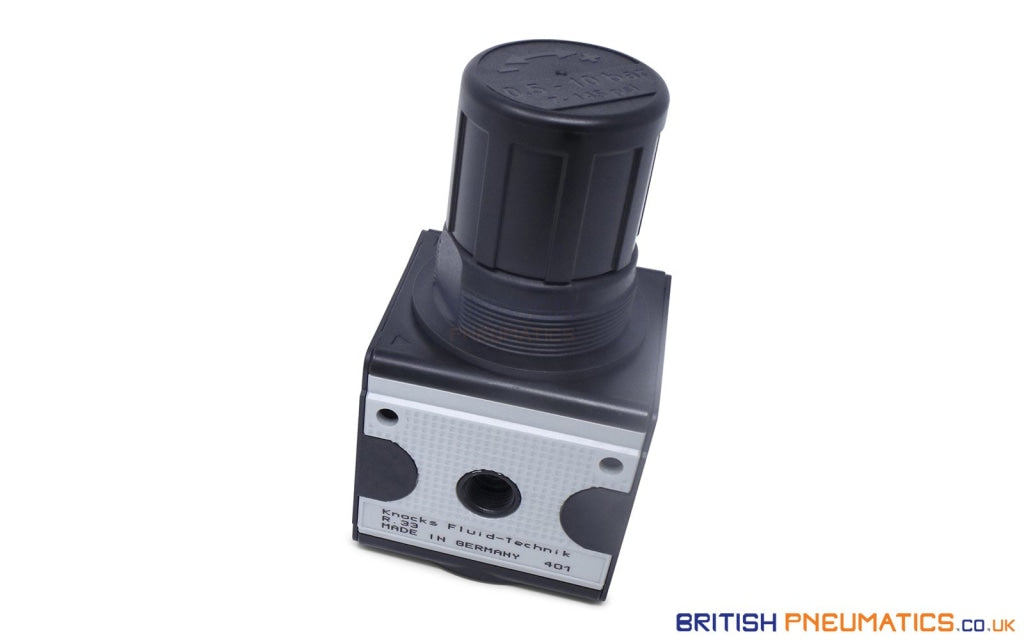

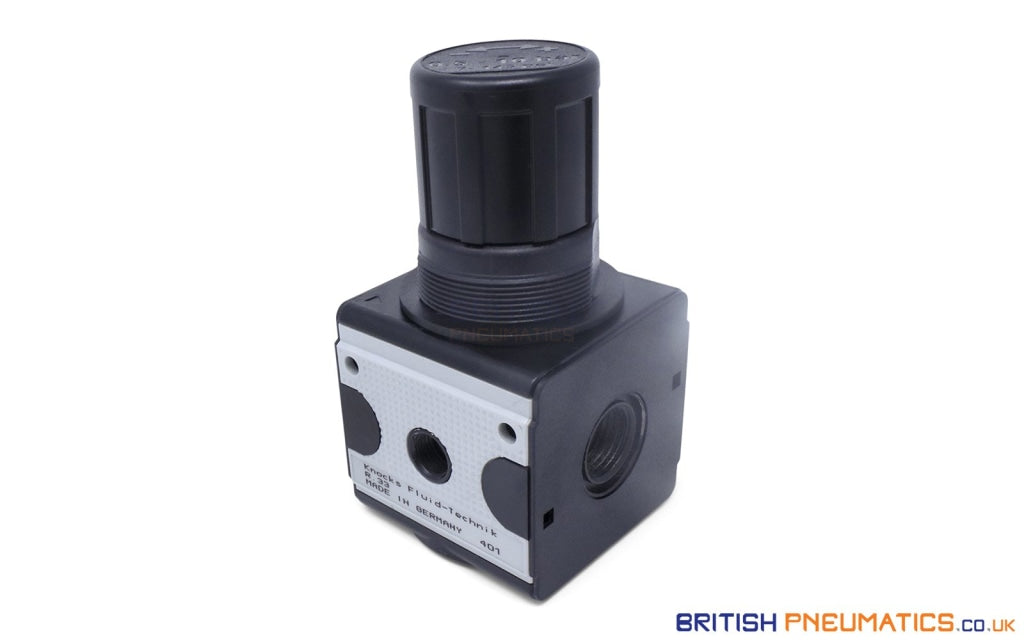

Knocks R.33 Regulator G1/2" 0.5-10 PRESSURE-REGULATOR
KNOCKS
MPN 9.1733.000
Made in Germany
Technical Specifications
| Port size | G 1/2 |
| Description | Air line regulator with diaphragm and relieving feature |
| Mounting | Arbitrary |
| Supply pressure | Pe max. 16 bar |
| Reduced pressure | Pa 0,5-10 bar standard 0,1-3 bar, 0,2-6 bar, 0,5-16 bar |
| Media and ambient temperature |
Max. 60℃ (oth. temperature ranges available upon request) |
| Fixing | Panel mounting, bracket or through 2 holes in the body |
