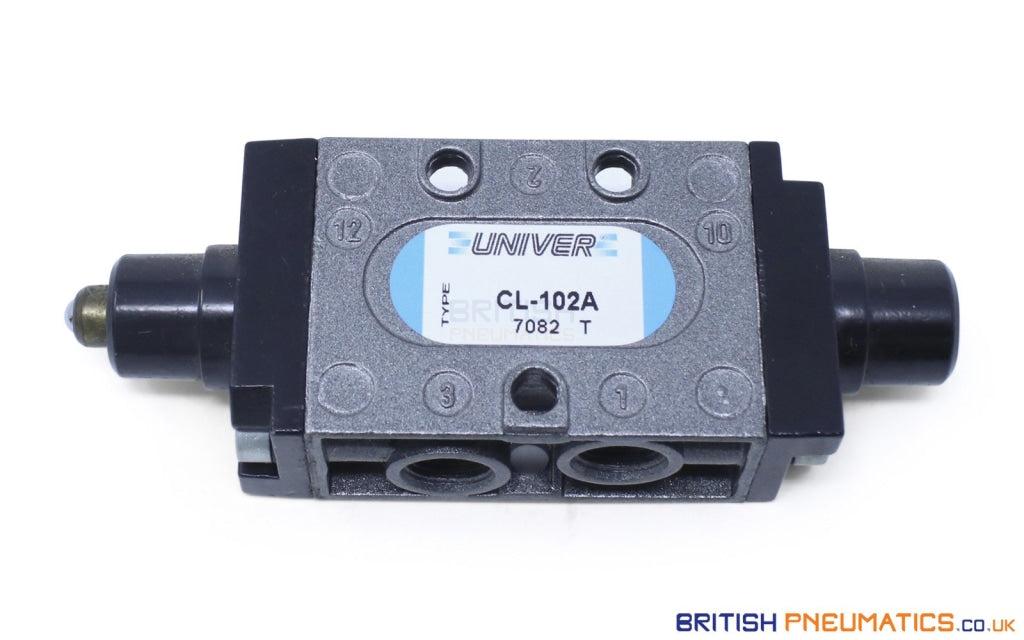

Univer CL-102A Ball-Push Mechanical Spool Valve
UNIVER CL-102A, 1/8". Made in Italy.
Valves G1/8 with direct mechanical operation
Ball-push
CL-102A
Technical Specifications
| Ambient temperature | -10÷45℃ |
| Fluid | 50 μm filtered air, with or without lubrication |
| Commutation system | Spool |
| Valve Body | die-cast zamak (G 1/8), aluminium (G 1/4) |
| Seals | Nitrile rubber |
| Spool | Aluminium |
| Electropilot / Coil | AA Series / U1-U3 |
| Power Consumption | 3,5 W (DC)-5 VA (AC) |
| Connector | AM5110 |
| Voltage | 12VDC-24VDC-24VAC-110VAC-230VAC |
| Manual Override | Two-position screw |
| Connections | G 1/8 | G 1/4 |
| Nominal bore (mm) | 6,5 | 8,5 |
| Nominal flow rate (Nl/min) | 890 | 1480 |
