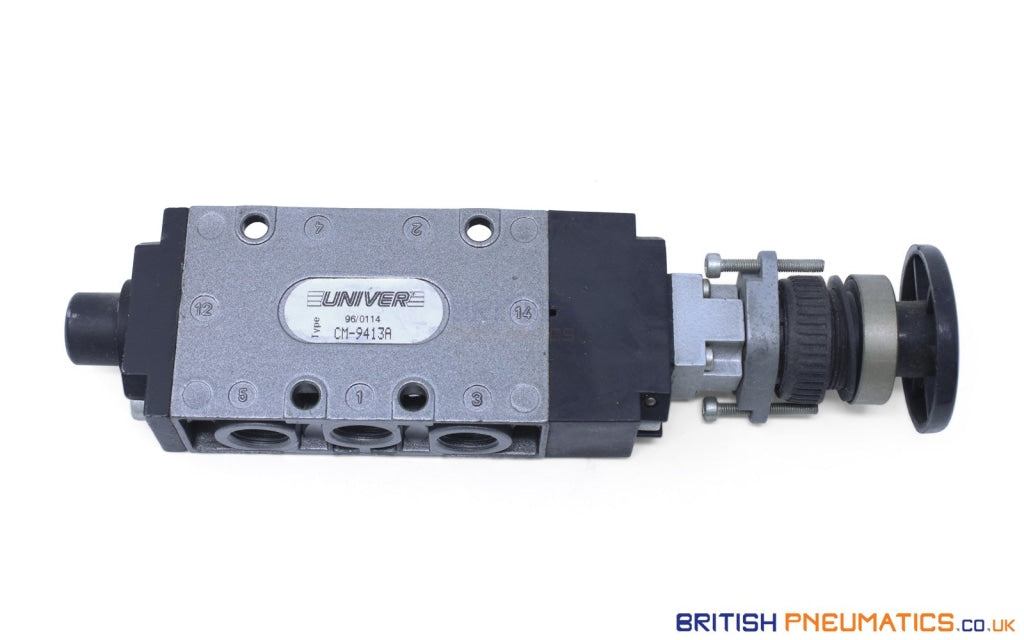

Univer CM-9413A Button Mechanical Spool Valve (1/4", Ball Push)
UNIVER CM-9413A is a mechanical valve with direct and indirect operation for panel operators. It can be panel mounted, The valve, itself, has a highly robust and rust-resistant zamak (zinc alloy body) with a built in machined aluminium spool.
It is operated by Ball push (indirect operation). 1/4" port connections.
CM-9413A, G1/4
Technical Specifications
Ambient temperature | -10÷45℃ |
Fluid | 50 μm filtered air, with or without lubrication |
Commutation system | Spool |
Valve Body | die-cast zamak (G 1/8), aluminium (G 1/4) |
Seals | Nitrile rubber |
Spool | Aluminium |
Electropilot / Coil | AA Series / U1-U3 |
Power Consumption | 3,5 W (DC)-5 VA (AC) |
Connector | AM5110 |
Voltage | 12VDC-24VDC-24VAC-110VAC-230VAC |
Manual Override | Two-position screw |
