API AC2181520 Mechanical Valve 1/8" 5/2 Bi-directional Lever and Roller

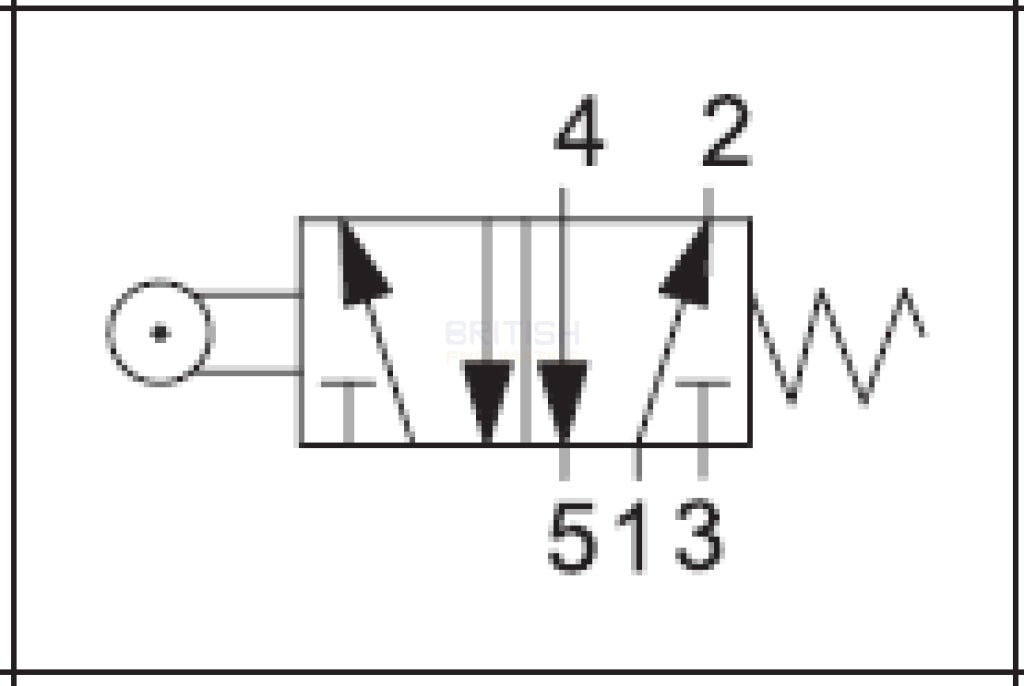

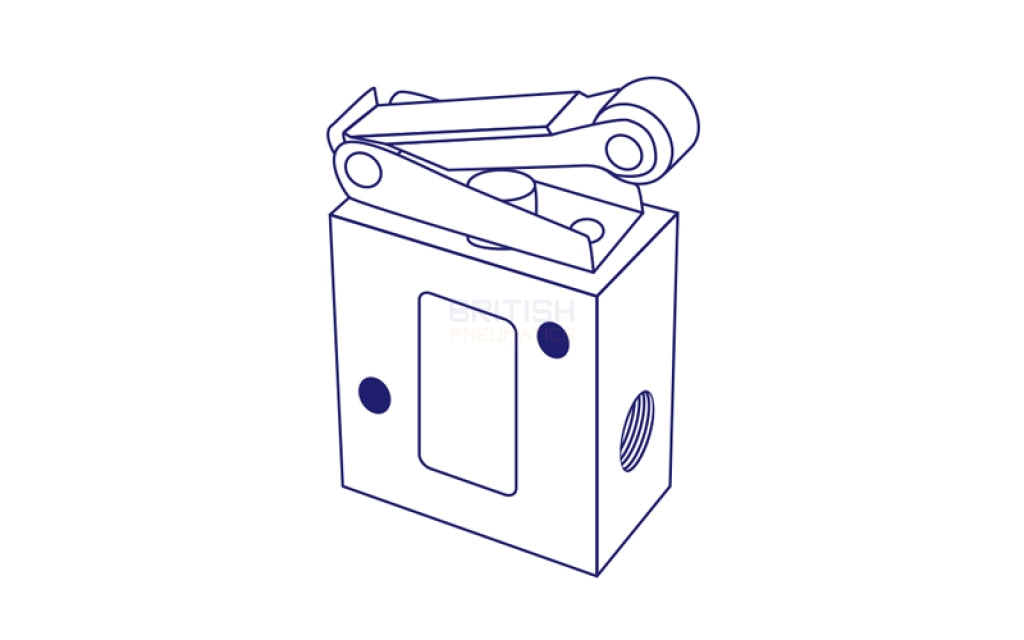

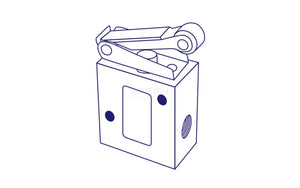

API Roller Lever Valve MPN 032720, 1/8" BSP, 5/2 with bi-directional lever and roller, 1 position. Mechanically operated valve
Technical Specifications
Fluid | Compressed filtered air with or without lubrication. Lubrication, if be used, must be continued. |
Pressure range | 0 ÷ 8 bar |
Temperature range | -20℃ ÷ +80℃ |
Orifice | 6 mm |
Flow | 900 Nl/min |
Connections | 1/8" |
Fixing | Through holes on the body |
Mounting | In any position |
Materials |
Body: Painted die-cast aluminium |
