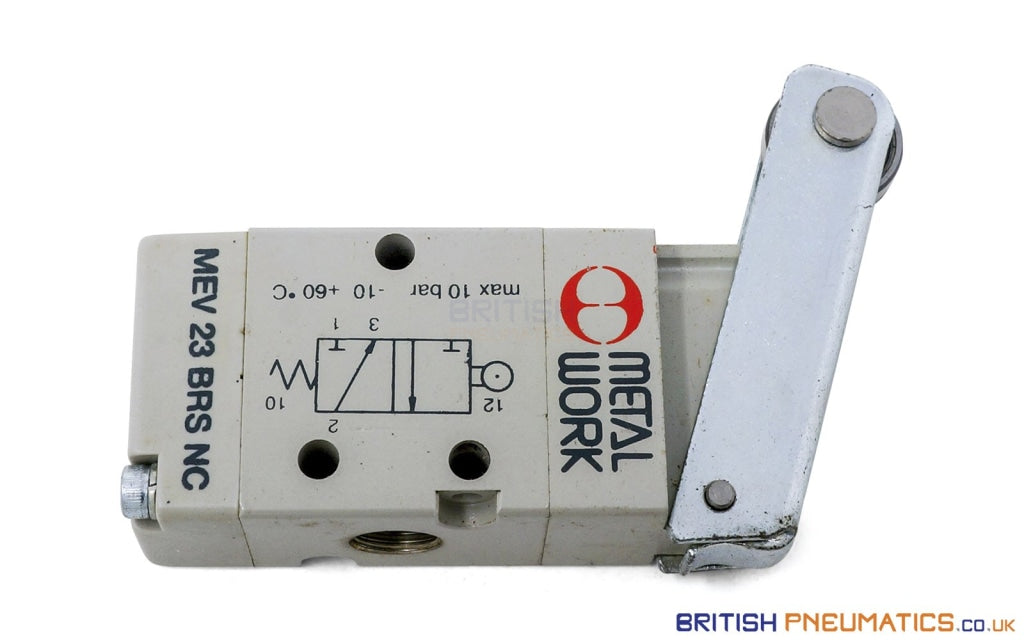

Metal Work MEV 23 BRS NC Roller Lever Valve (7001000500) 1/8" 3/2
'Quick Specs': Metal Work MPN: 7001000500. 1/8" BSPP. 3/2 Roller Lever Mechanical Valve. Made in Italy. Bistable. Aluminium chasis. Spring Return.
This Roller Lever Valve from Metal Work has a bidirectional roller lever element.
Technical Specifications
Operation Mode |
Bidirectional Roller |
Port Size and Thread |
G 1/8" (BSPP) |
Operating Pressure Range |
Vacuum to 10 bar |
Operating Temperature Range | -10 to +60 Celsius |
Nominal Diameter | 5mm |
Conductance (Nl/min - bar) | 121.43 |
Flow Rate at 6 bar ΔP 0.5 bar (Nl/min) | 400 |
Flow Rate at 6 bar ΔP 1 bar (Nl/min) | 550 |
