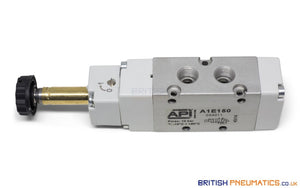

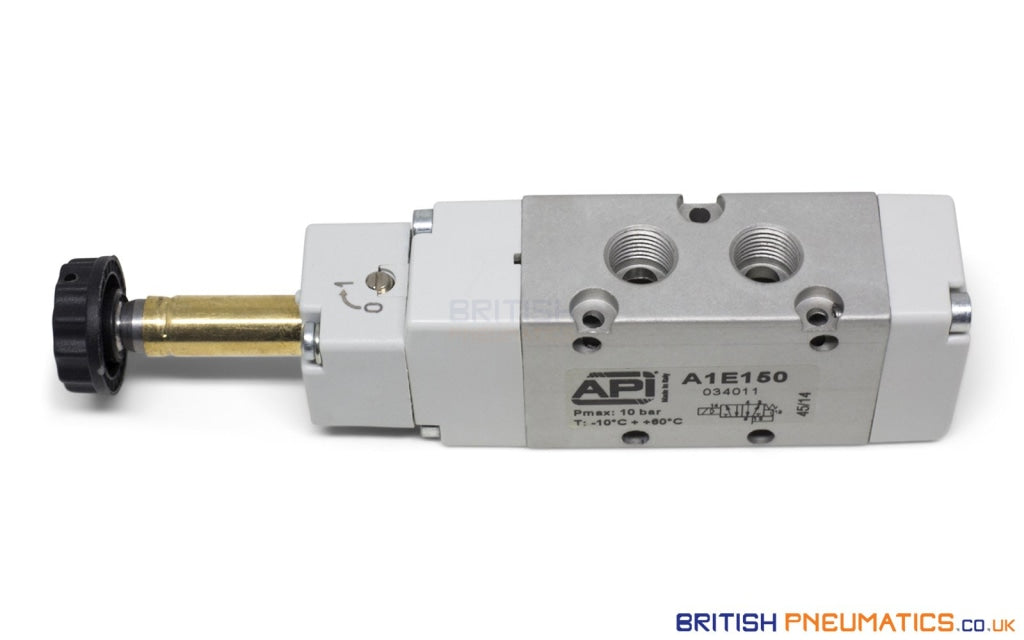

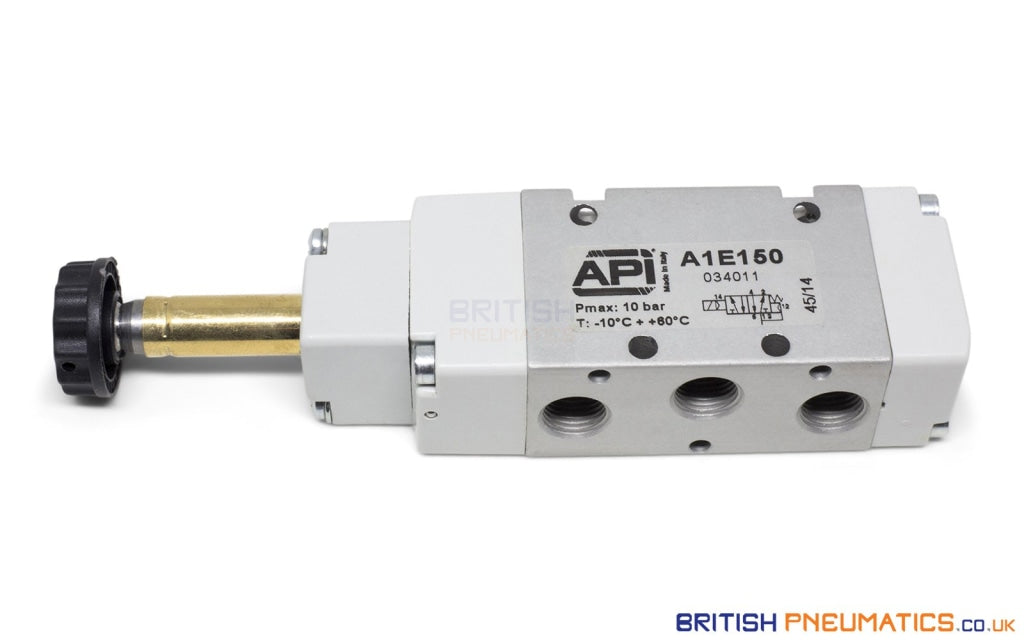

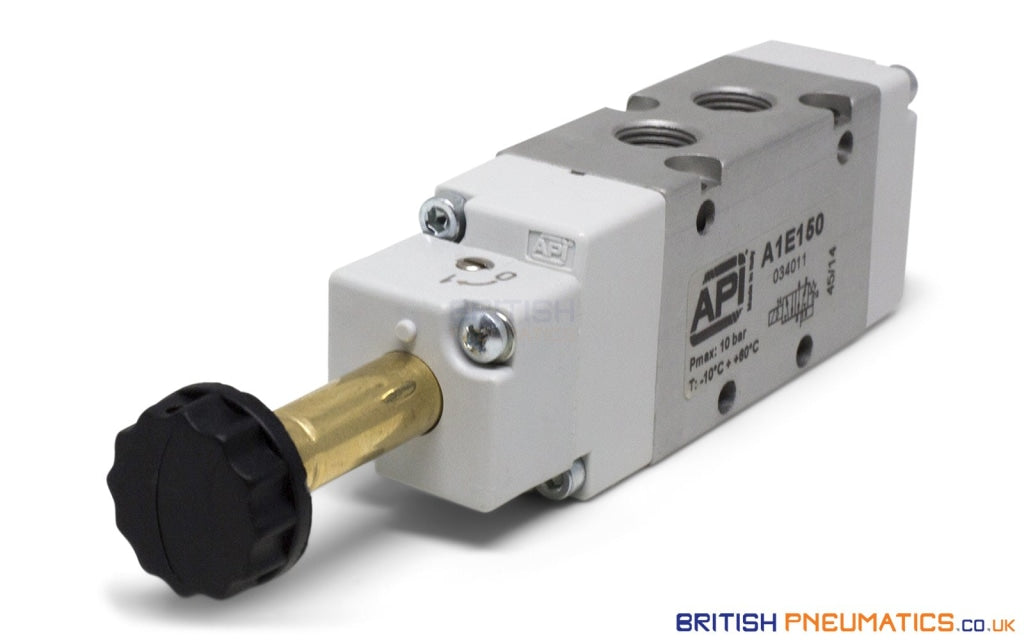

API A1E150 Solenoid Valve 1/8" 5/2
'Quick Specs': MPN 034011, 1/8" BSP 5/2 solenoid/spring valve, electrically operated. Made in Italy.
The API A1E150 is a popular pneumatic solenoid valve given its competitive price point whilst still embodying the markers of a high quality product: a lightweight metallic valve body, being made in Italy, and HNBR seals.

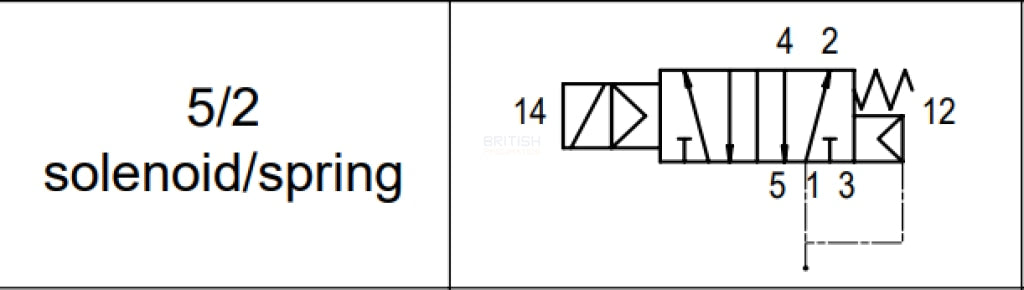

As a 1/8" BSP and 5 port, 2 position (5/2) valve, it is a true base component to any pneumatic system. When there is no current supplied to the coil, the valve returns to its original position with the help of a spring. The API A1E150 is compatible with all solenoid coil voltages: DC12v, DC24v, AC110v, AC220v, and AC24v.
This is a functional replacement for and is interchangeable with Metal Work SOV 25 SOS OO/Metal Work 7010021100.
Technical Specifications
| Fluid | Compressed filtered air with or without lubrication. Lubrication, if be used, must be contiuous. |
| Pressure range |
Spring return: 1,5 ÷ 10 bar |
| Temperature range | -10℃ ÷ +60℃ |
| Orifice | 6,5 mm |
| Flow | 650 Nl/min. at 6bar with ΔP 1bar |
| Minimum external air pressure | 1,5 bar |
| Mounting | In any position |
| Manual override | Bistable |
| Response time (at 6bar) |
Solenoid/spring: Energising: 35ms / De-energising: 15ms |
| Materials |
Body: Anodised aluminium |
