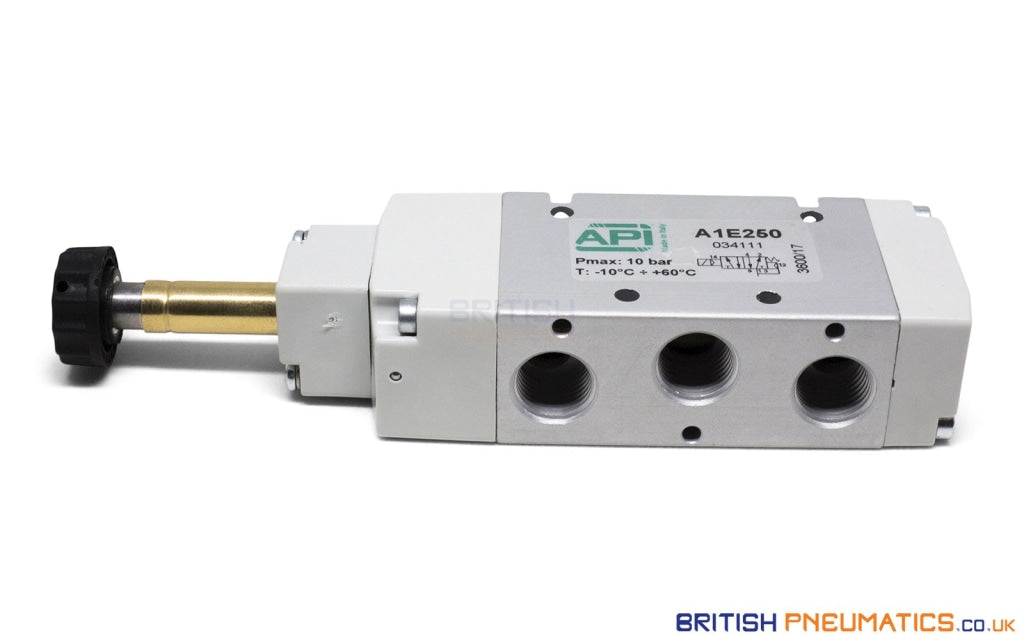

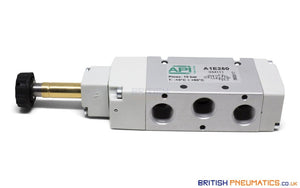

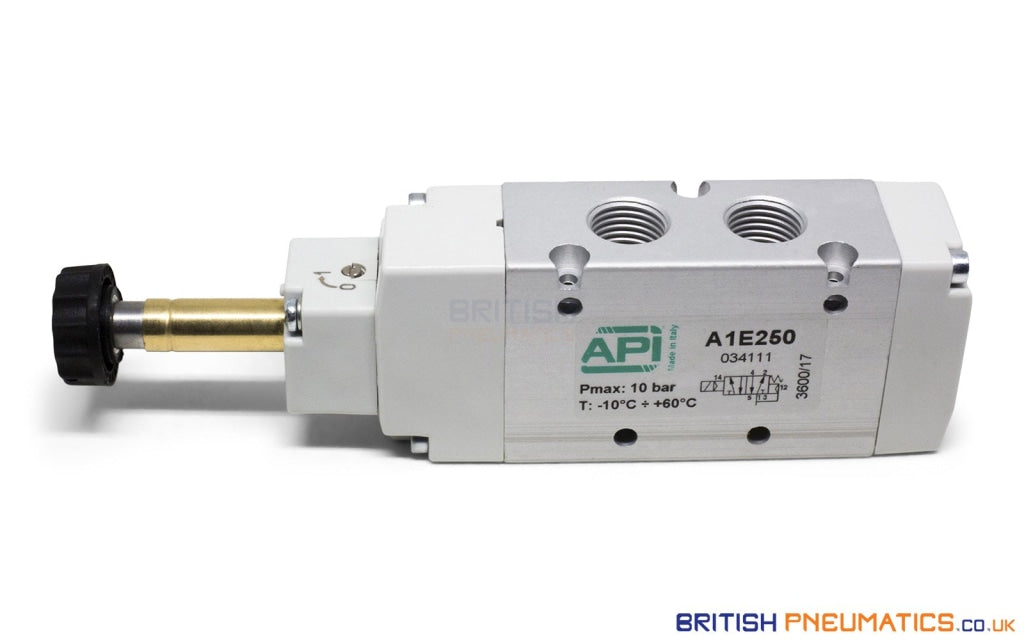

API A1E250 Solenoid Valve 1/4" 5/2
'Quick Specs': MPN 034111, 1/4" BSP, 5/2 solenoid/spring valve, electrically operated. Made in Italy. Aluminium body.

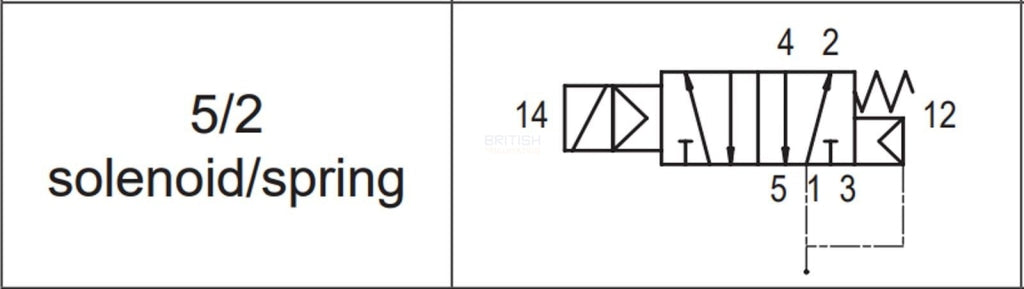

The API A1E250 is a 1/4" solenoid valve with 5 ports, and 2 positions. Its lightweight metallic body (anodised alumnium) is presents robustness in its environment but also reliability for when the spool shifts within the valve body. It is rated for a high life cycle.
The API A1250 is one of the more popular 1/4" 5/2 solenoid valves in general industry as it is offered at a very attractive price point. It is available in a range of voltages: AC110v, AC220v, DC12v, DC24v, and AC24v. Please choose the appropriate coil option.
Technical Specifications
| Fluid | Compressed filtered air with or without lubrication. Lubrication, if be used, must be continued. |
| Pressure range |
Spring return: 1,5 ÷ 10 bar |
| Temperature range | -10℃ ÷ +60℃ |
| Orifice | 8 mm |
| Flow | 1100 Nl/min. at 6bar with ΔP 1bar |
| Minimum external air pressure | 1,5 bar |
| Mounting | In any position |
| Manual override | Bistable |
| Response time (at 6bar) |
Solenoid/spring: Energising: 45ms / De-energising: 19ms |
| Materials |
Body: Anodised aluminium |
