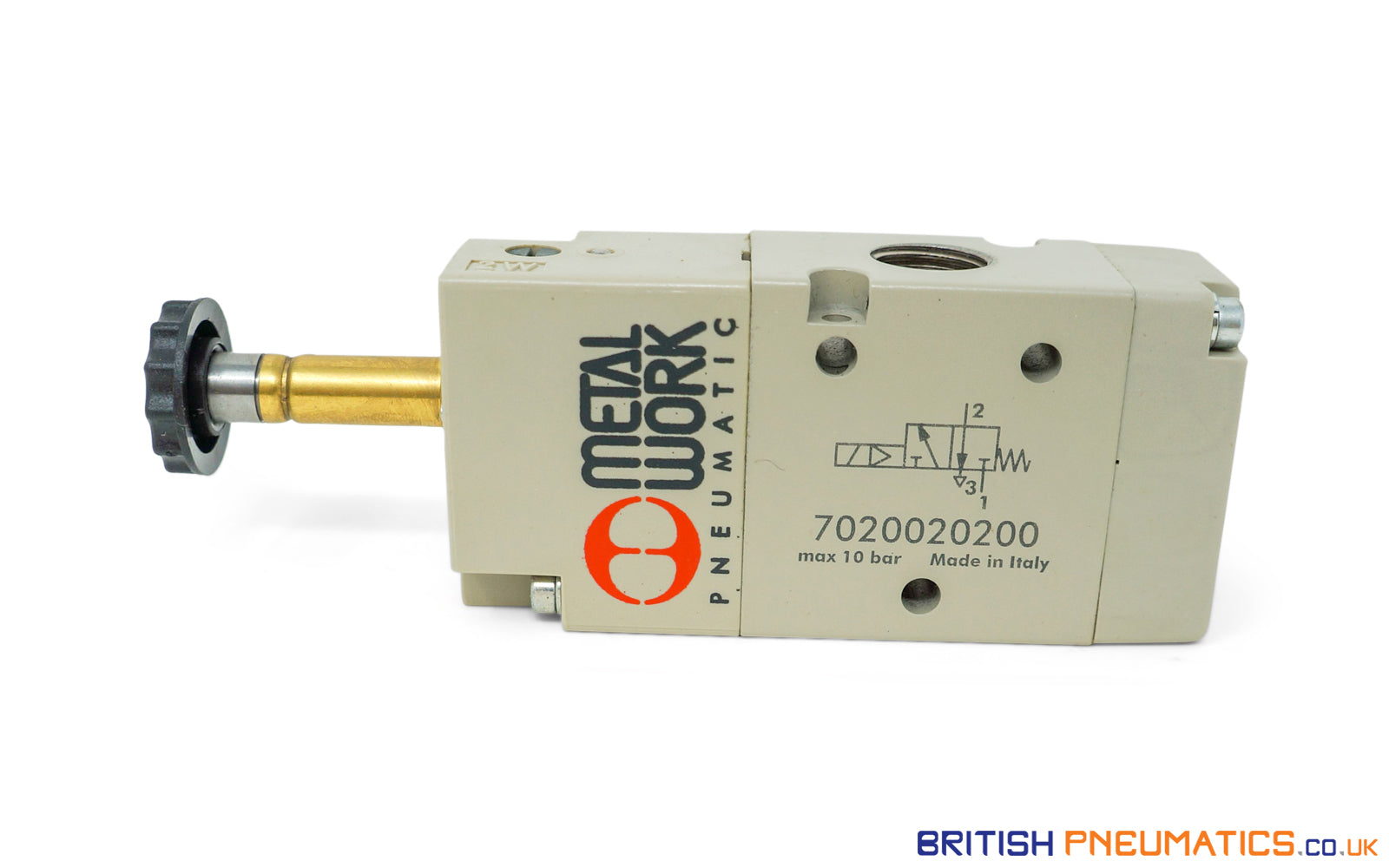

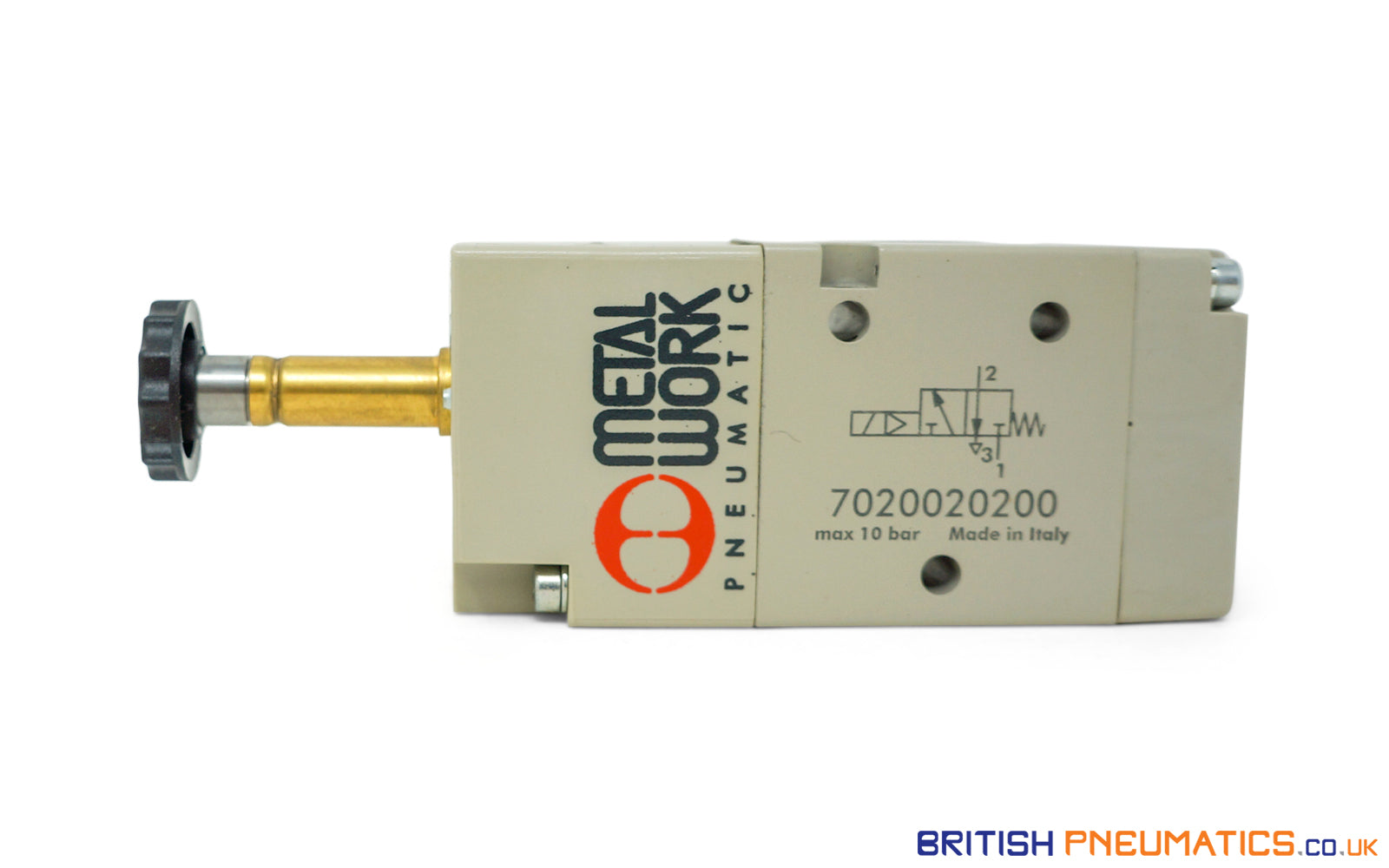

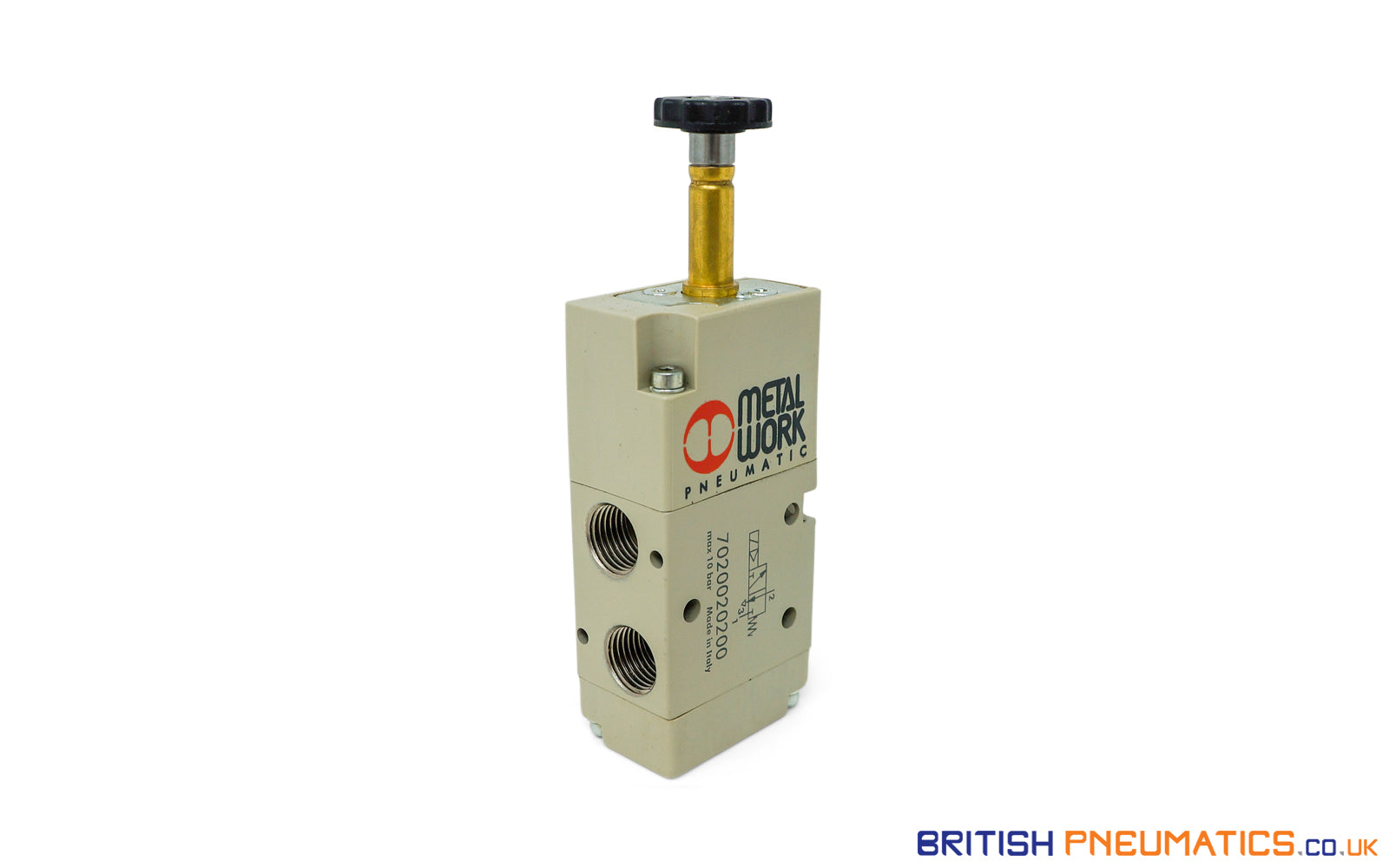

Metal Work SOV 33 SOS NC Solenoid Valve (7020020200) 1/4" 3/2
'Quick Specs': Metal Work MPN 7020020200. 1/4". 3/2 Solenoid Valve. Normally closed. Made in Italy. Spring Return.
Technical Specifications
| Port Size and Thread | G 1/4" (BSPP) |
| Operating Pressure: |
2.5 to 10 bar (Monstable) 1 to 10 bar (Bistable) |
| Minimium Pilot Pressure | 2.5 bar |
| Operating Temperature Range | -10 to +60 Celsius |
| Flow Rate at 6 bar ΔP 0.5 bar (Nl/min) | 750 |
| Flow Rate at 6 bar ΔP 1 bar (Nl/min) | 1100 |
| Recommended Lubricant | ISO and UNI FD 22 |
| Compatible Voltages | All Voltages: AC110v, AC220v, AC24v, DC12v, DC24v |
