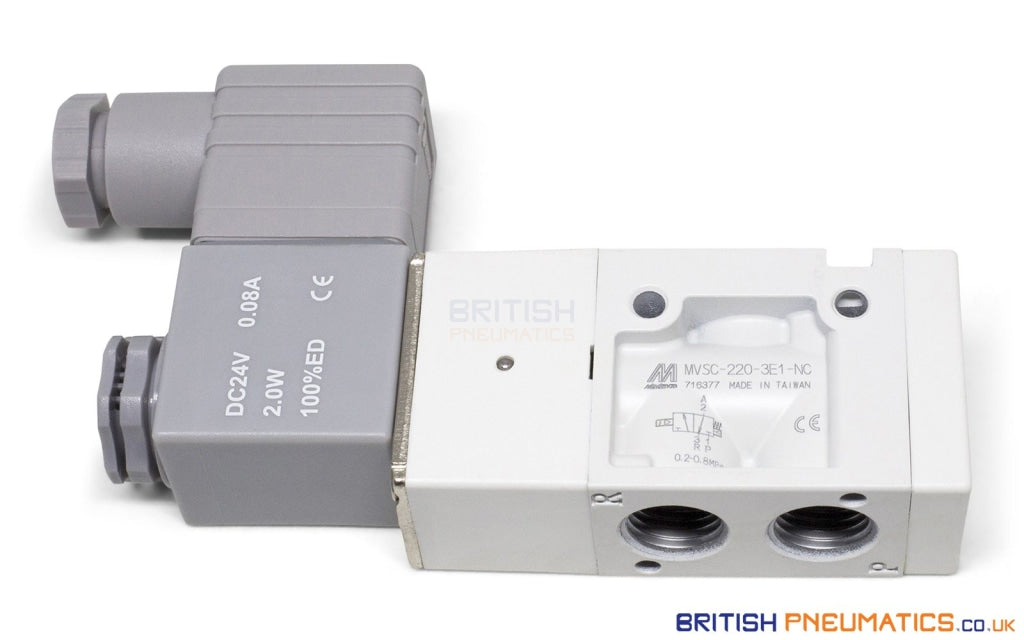

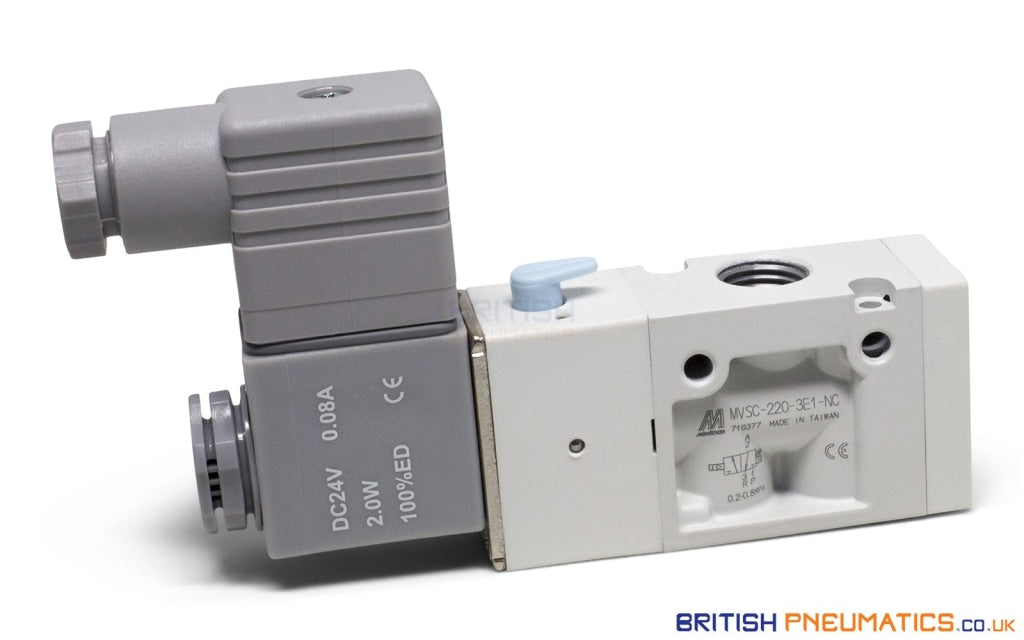

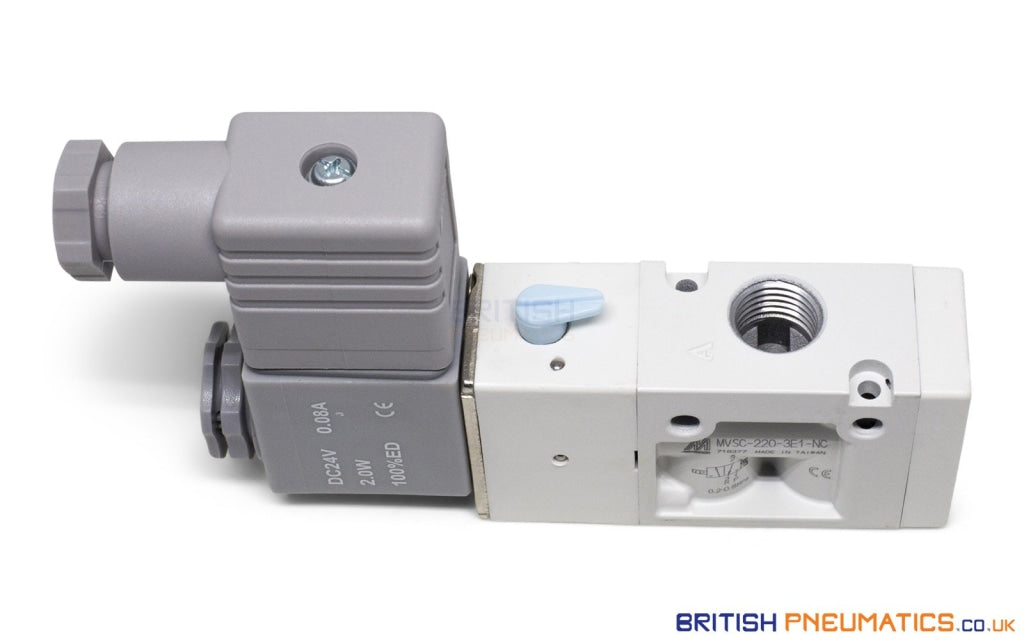

Mindman MVSC-220-3E1-NC DC24V Solenoid Valve 3/2 1/4"
MINDMAN MVSC-220-3E1 Solenoid valve. 3/2 Way. rc1/4". Low power consumption coil. Comes with DC24v Coil.
MVSC-220 series
Solenoid valve
MVSC-220-3E1-NC, 1/4
Technical Specifications
| Model | 3E1 |
| Bore no.: | 8A |
| Port size | Rc 1/4 |
| No. of port | 3 |
| No. of position | 2 |
| Medium | Air |
| Operating pressure range | 0.2~0.8 MPa |
| Proof pressure | 1 MPa |
| Ambient temperature | -5 ~ + 50℃ (No freezing) |
| Effective orifice | 18 mm² |
| Reponse time | 30 ms |
| Voltage | AC110V, 220V (50/60)Hz, DC24V |
| Power consumption | AC=4.8/4.4VA, 6/4.9VA, DC=2W |
| Available voltage range | ± 10% |
