Pneumax 468.53.31.0.0.M2 Solenoid Valve 5/3, 1/8"
Pneumax 468.53.31.0.0.M2 Quick Specs': G1/8" 5/2 Way MICROSOLENOID-MICROSOLENOID Made in Italy. Aluminium chasis and aluminium spool.

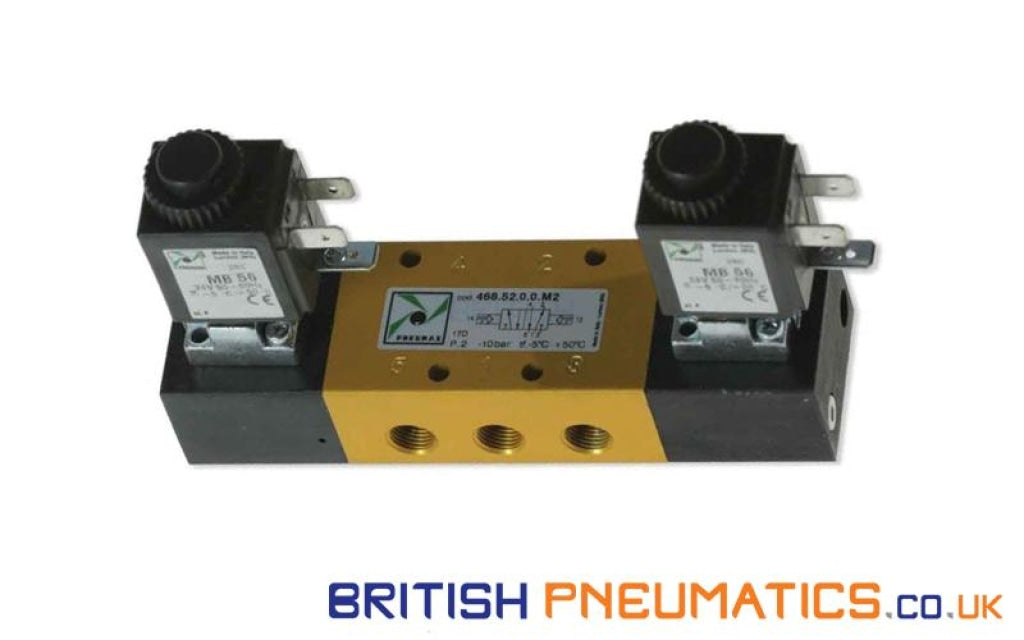

This is a Pneumax double solenoid valve with G1/8" port connections that is 5/3 way. The valve is manufactuered in Italy out of a premium light-weight aluminium valve body.
(Picture for reference only)
Technical Specifications of Pneumax Solenoid Valve
| Maximum Working Pressure | 10 Bar |
| Operating Temperature | -10 to 50 Celcius |
| Flow rate at 6 bar with ∆p=1 (Nl/min) | 540 Nl/min |
| Valve Body Material | Aluminium |
| Spool Material | Aluminium |
| Region of Manufacture | Italy (Lurano) |
