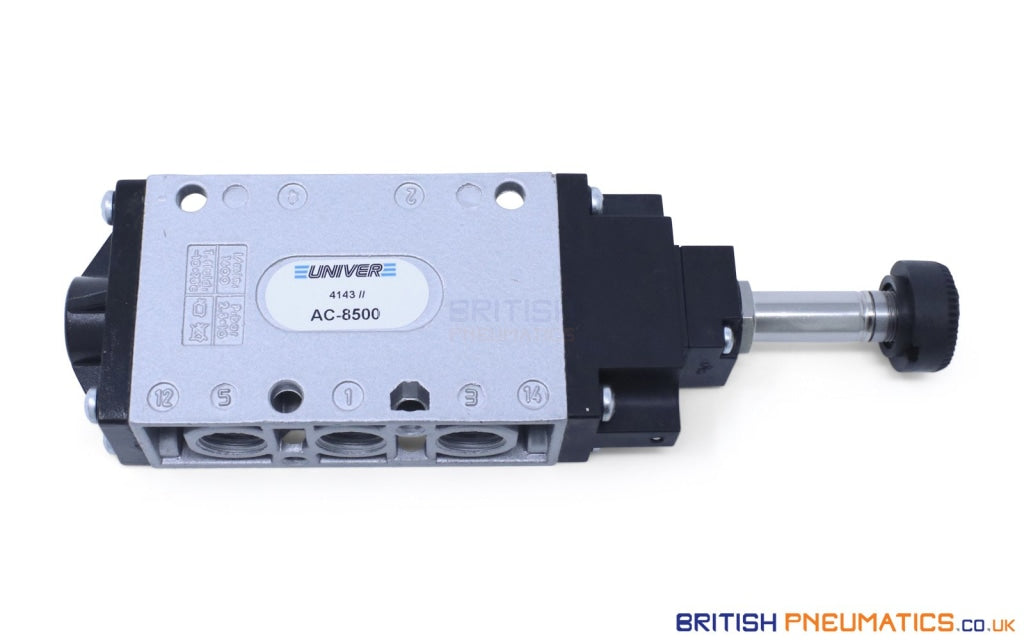

Univer AC-8500 Solenoid Valve, 1/4" 5/2

Regular price: £94.10
Sale price: £94.10

Free shipping within the UK! Worldwide shipping also available.

Voltage

Quantity

Quantity must be 1 or more

As one of our best sellers, this Univer AC-8500 solenoid valve is composed of an industrial-grade anodised Zinc body, suitable for a wide range of environments. It has G1/4" ports and is 5/2 way. It can most often be paired with a double-acting pneumatic cylinder

Made in Italy.

For use with U1 Univer Coils, and is available with AC110v, AC220v, DC12v, and DC24v coils.

Technical Specifications

Ambient temperature	-10÷45 ℃
Fluid	50 μm filtered air, with or without lubrication
Commutation system	Poppet mixed system
Pressure Max	10 bar
Connections	G1/8 G1/4 G1/2
Nominal bore (mm)	G1/8: 6 G1/4: 8 G1/2: 15
Nominal flow rate (Nl/min)	G1/8: 1080 G1/4: 1600 G1/2: 4600
Electropilot	G1/8: U1 G1/4: U1 G1/2: U2
Coil	G1/8: DA G1/4: DA G1/2: DB
Connector	G1/8: AM-5110 G1/4: AM-5110 G1/2: AM-5111
Power consumption	G1/8: 3,5W (DC), 5VA (AC) G1/4: 3,5W (DC), 5VA (AC) G1/2: 11W (DC), 10VA (AC)
Voltage	12V DC, 24V DC, 24V AC, 110V AC, 230V AC
Valve body	G1/8: Zamak G1/4: Zamak G1/2: Die-cast aluminium
Seals	Nitrile rubber, Polyurethane
Spool	Aluminium
Manual override	2-position screw
