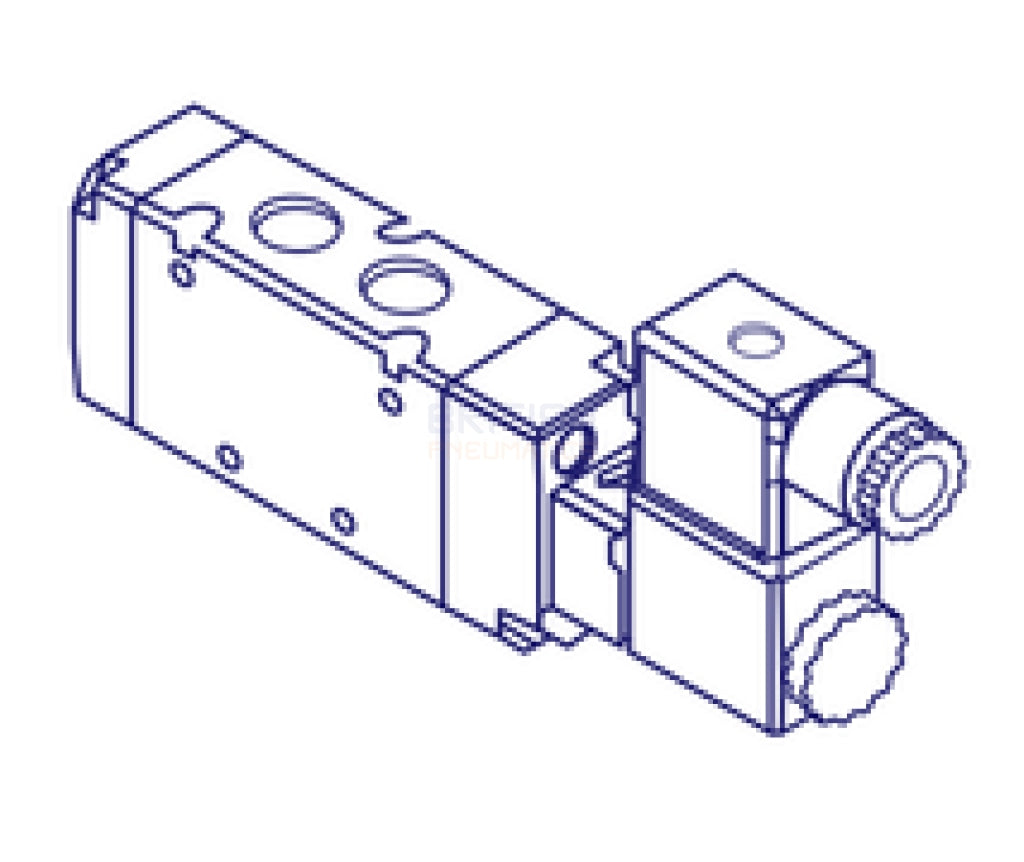

Univer AC-9120 Solenoid Valve

Regular price: £217.30* £236.20
*After 8% bulk order discount applied at checkout.
Sale price: £236.20

2-3 days lead time

UNIVER
MIXED VALVES G1/8-G1/4-G1/2

Pneumatic impulse
Double impulse, AC-9120, G1/2

Technical Specifications

Ambient temperature	-10÷45 ℃
Fluid	50 μm filtered air, with or without lubrication
Commutation system	Poppet mixed system
Pressure Max	10 bar
Connections	G1/8 G1/4 G1/2
Nominal bore (mm)	G1/8: 6 G1/4: 8 G1/2: 15
Nominal flow rate (Nl/min)	G1/8: 1080 G1/4: 1600 G1/2: 4600
Electropilot	G1/8: U1 G1/4: U1 G1/2: U2
Coil	G1/8: DA G1/4: DA G1/2: DB
Connector	G1/8: AM-5110 G1/4: AM-5110 G1/2: AM-5111
Power consumption	G1/8: 3,5W (DC), 5VA (AC) G1/4: 3,5W (DC), 5VA (AC) G1/2: 11W (DC), 10VA (AC)
Voltage	12V DC, 24V DC, 24V AC, 110V AC, 230V AC
Valve body	G1/8: Zamak G1/4: Zamak G1/2: Die-cast aluminium
Seals	Nitrile rubber, Polyurethane
Spool	Aluminium
Manual override	2-pisition screw
