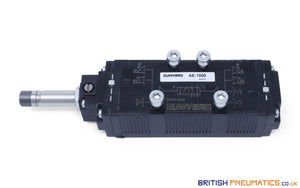

Univer AE-1000 ISO-5599/1 Solenoid Valve Light Series 5/2
UNIVER AE-1000 ISO 5599/1 LIGHT SERIES VALVES SIZE. 5/2 Way Solenoid Valve.
Single electrical impulse
AE-1000 size: 1
Technical Specifications
| Ambient temperature | -10 ÷ +50℃ |
| Fluid | 50 μm filtered air, with or without lubrication |
| Commutation System | Mixed system |
| Pressure Max | 10 bar |
| Connections | ISO 5599/1 interface (BF series sub-based) |
| Nominal bore (mm) |
|
| Norminal flow rate (Nl/min) |
|
| Valve body | Acetalic resin |
| Seals | Nitrilic rubber - polyurethane |
| Electropilot / Coil | AA Series / U1 |
| Power consumption | 3,5 W (DC) - 5 VA (AC) |
| Voltage |
|
| Connector | AM-5110 |
| Manual override | Two-position screw |
